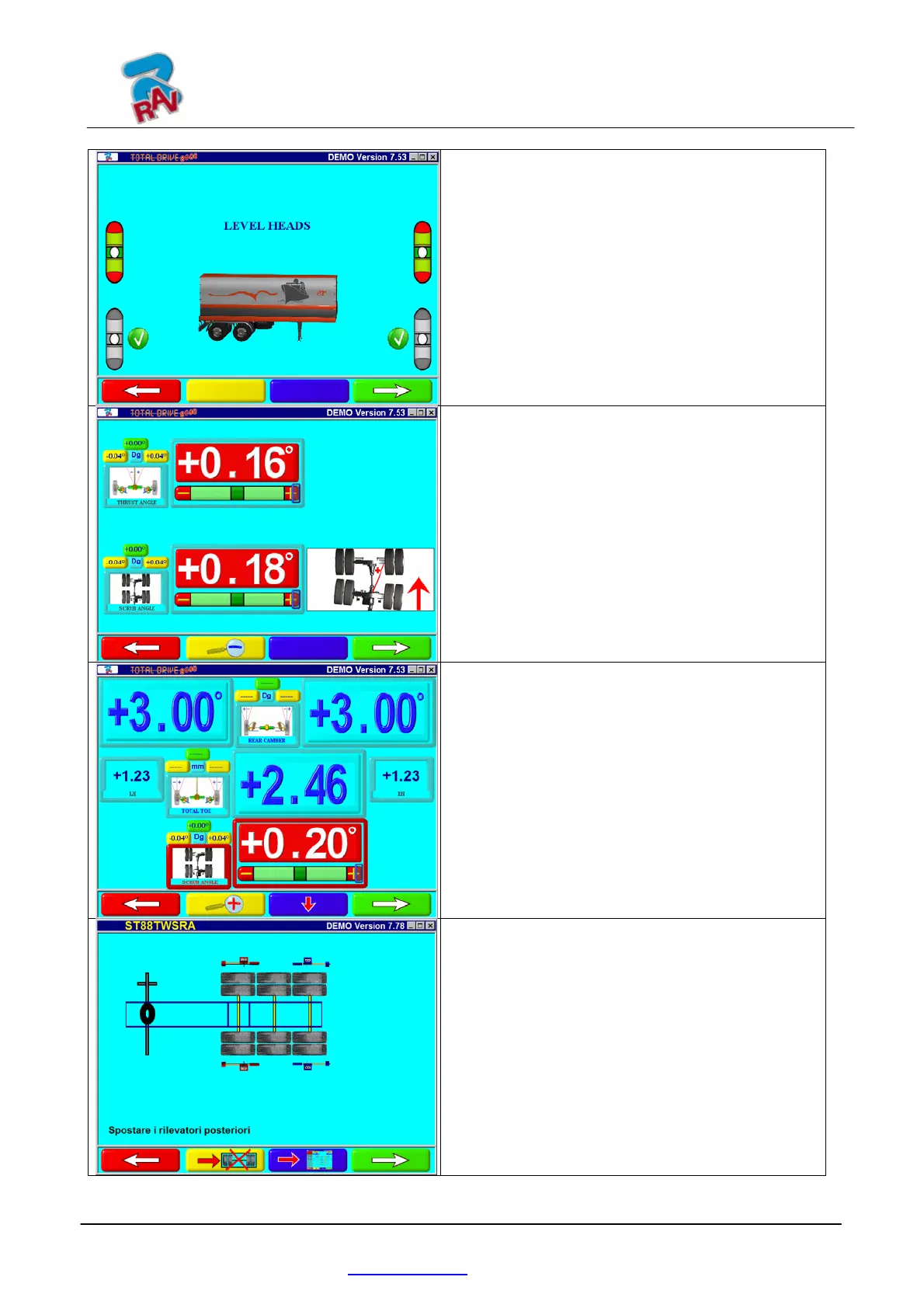

Level the Rear heads (mounted on the second
axle), leaving the front sensor in their position,
and wait until automatically appear the next
page.
Adjust the SCRUB ANGLE referred to the last
Axle as indicated on the picture beside.
Adjust eventually also the offset Angle.
With the Key F2 it is also possible to zoom and
unzoom the scrub angle, seeing also the Toe
and the Camber angles.
Press the Key F4 to proceed.
Proceed now adjusting the first axle as done for
the second one.
Move the Rear sensor heads from 2
nd
axle to the
1
st
, Press F4.
Level the heads and proceed adjusting the Scrub
and offset angle, at the end press F4.
Note: It is possible to skip this axle pressing F2,
or skip all the axles remained going directly in the
summary page pressing F3.
