INSTRUCTION MANUAL
RAV TD8060TWS - RAV TD8060TWSR
RAV TD8080TWS - RAV TD8080TWSR
Code M0230 - rev.1.1
(01/2014)
RAVAGLIOLI S.p.A.
RAVAGLIOLI S.p.A. – 40044 Pontecchio Marconi (BO) Via I Maggio, 3
Page 47/ 64
Tel. (+39) 051/ 67.81.511 – Fax (+39) 051/ 84.64.67
e-mail: rav@ravaglioli.com /http www.ravaglioli.com

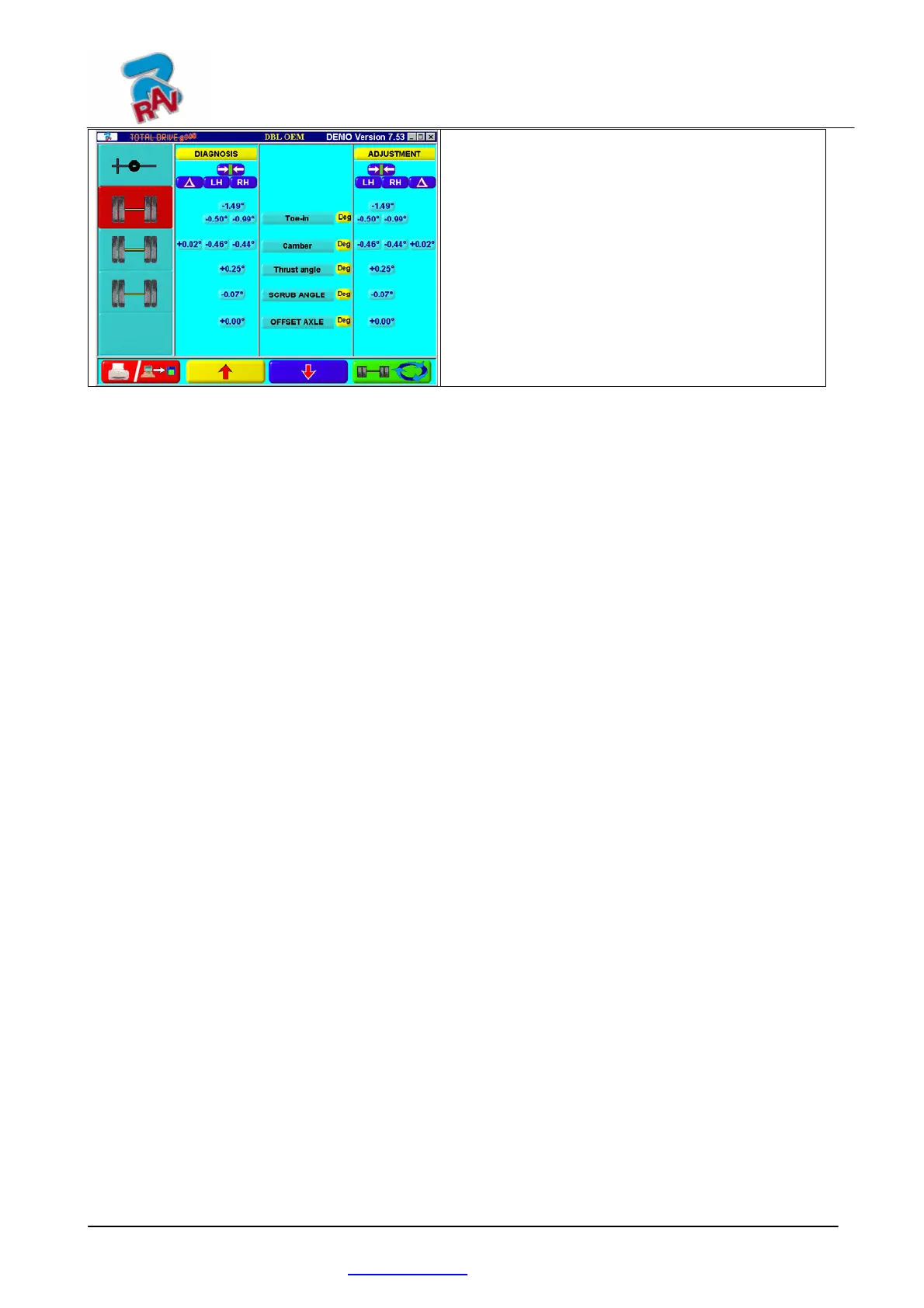

Appears the Summary page, representing
Diagnosis and adjustment data.
Press F1 to enter in the page where is possible
to print or save data
Press F2/F3 to select axle and display those data
Press F4 to select repeat the axle displayed
NOTE: It is possible to get also partial summary pages after have done any single axles, with diagnosis data
and adjustment data. This summary pages will appear or not depending on what is set in the configuration
parameters.
