INSTRUCTION MANUAL
RAV TD8060TWS - RAV TD8060TWSR
RAV TD8080TWS - RAV TD8080TWSR
Code M0230 - rev.1.1
(01/2014)
RAVAGLIOLI S.p.A.
RAVAGLIOLI S.p.A. – 40044 Pontecchio Marconi (BO) Via I Maggio, 3
Page 51/ 64
Tel. (+39) 051/ 67.81.511 – Fax (+39) 051/ 84.64.67
e-mail: rav@ravaglioli.com /http www.ravaglioli.com

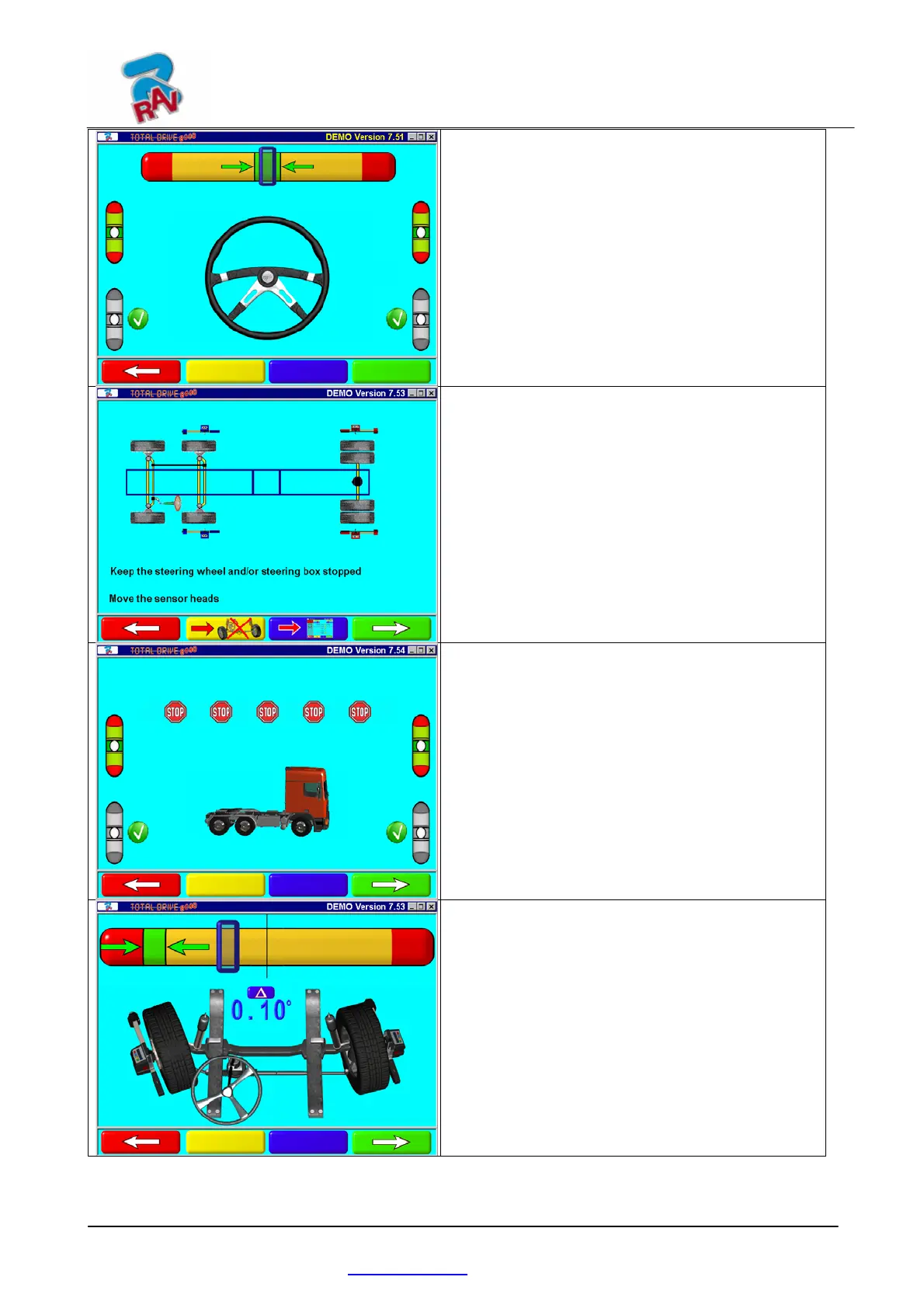

Turn the steering until the wheels are aligned,
meaning until the display unit level is perfectly at
centre.
Level again the Front heads (mounted on the 1
st
steering axle), leaving the rear sensor in their
position, and wait until automatically appear the
next page.
Move the Front sensor heads from 1
st
steering
axle to the 2
nd
, then press F4.
Note: It is possible to skip the steering procedure
on this axle by pressing F2, or skip all the axles
remained going directly in the summary page
pressing F3.
Important: Keep the steering wheel and/or
steering box stopped.
Level again the Front heads (mounted on the 2
nd
steering axle), leaving the rear sensor in their
position, and wait until automatically appear the
next page.
Perform the steering procedure for the 2
nd
steering axle following the display unit level on
the screen, first left then right then at centre.
The steering procedure can also be jumped by
F4 ; the Caster data measurements will not
appear.
