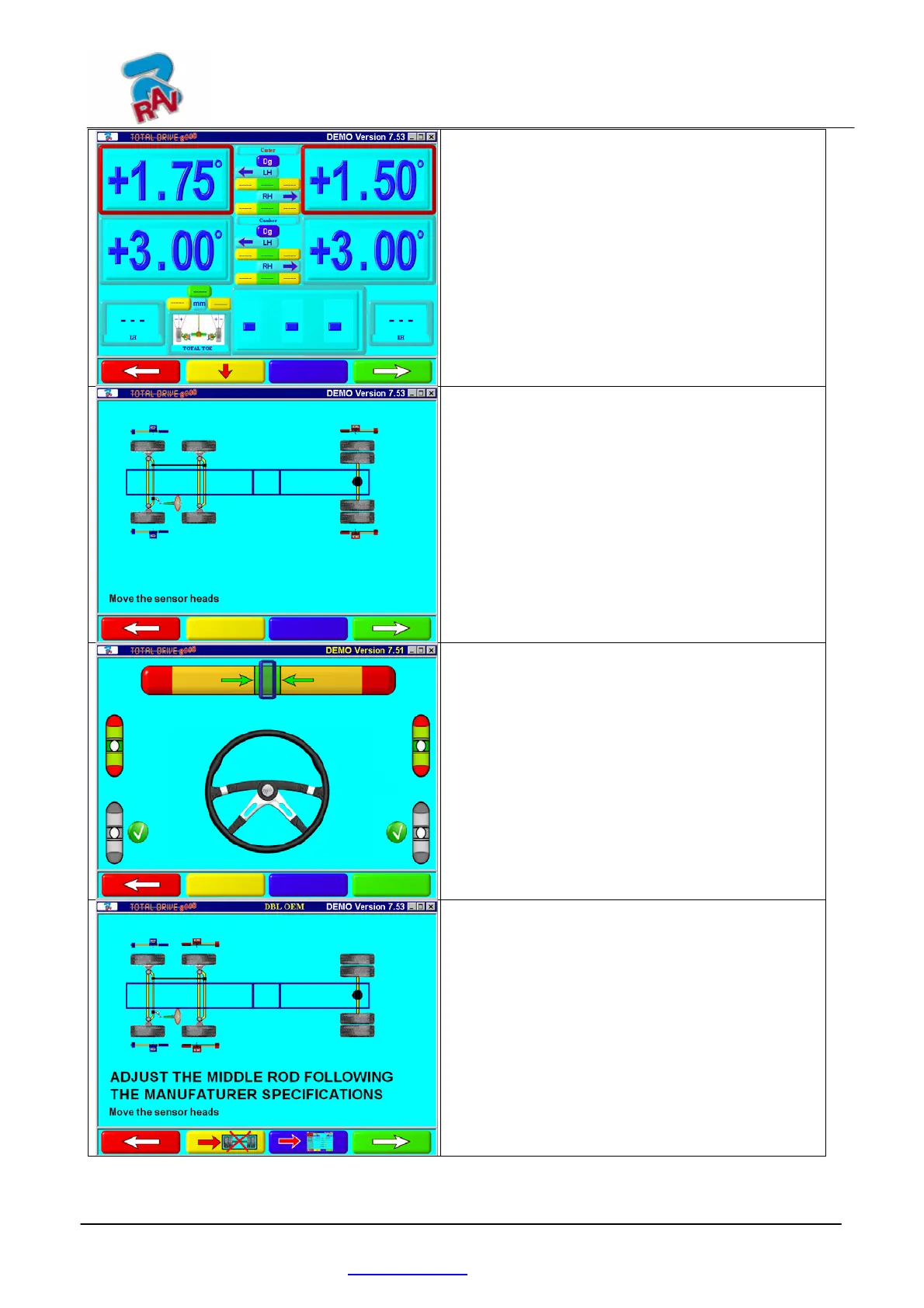

Adjust the 2
nd
steering axle, Caster and Camber
where is possible and needed.
Press F4 to proceed.
Press F1 to return back steering procedure
Move the Front sensor heads from 2
nd
steering
axle to the 1st, then press F4.
Turn the steering until the wheels are aligned,
meaning until the display unit level is perfectly at
centre.
Level again the Front heads (mounted on the 1
st
steering axle), leaving the rear sensor in their
position, and wait until automatically appear the
next page.
Move the Rear sensor heads from rear axle to
the 2
nd
steering axle, Press F4 to proceed.
Important: Keep stopped the steering wheel
and/or the steering box.
Note: It is possible to skip the toe adjust on this
axle by pressing F2, or skip all the axles
remained going directly in the summary page
pressing F3.
