INSTRUCTION MANUAL
RAV TD8060TWS - RAV TD8060TWSR
RAV TD8080TWS - RAV TD8080TWSR
Code M0230 - rev.1.1
(01/2014)
RAVAGLIOLI S.p.A.
Page 55/ 64

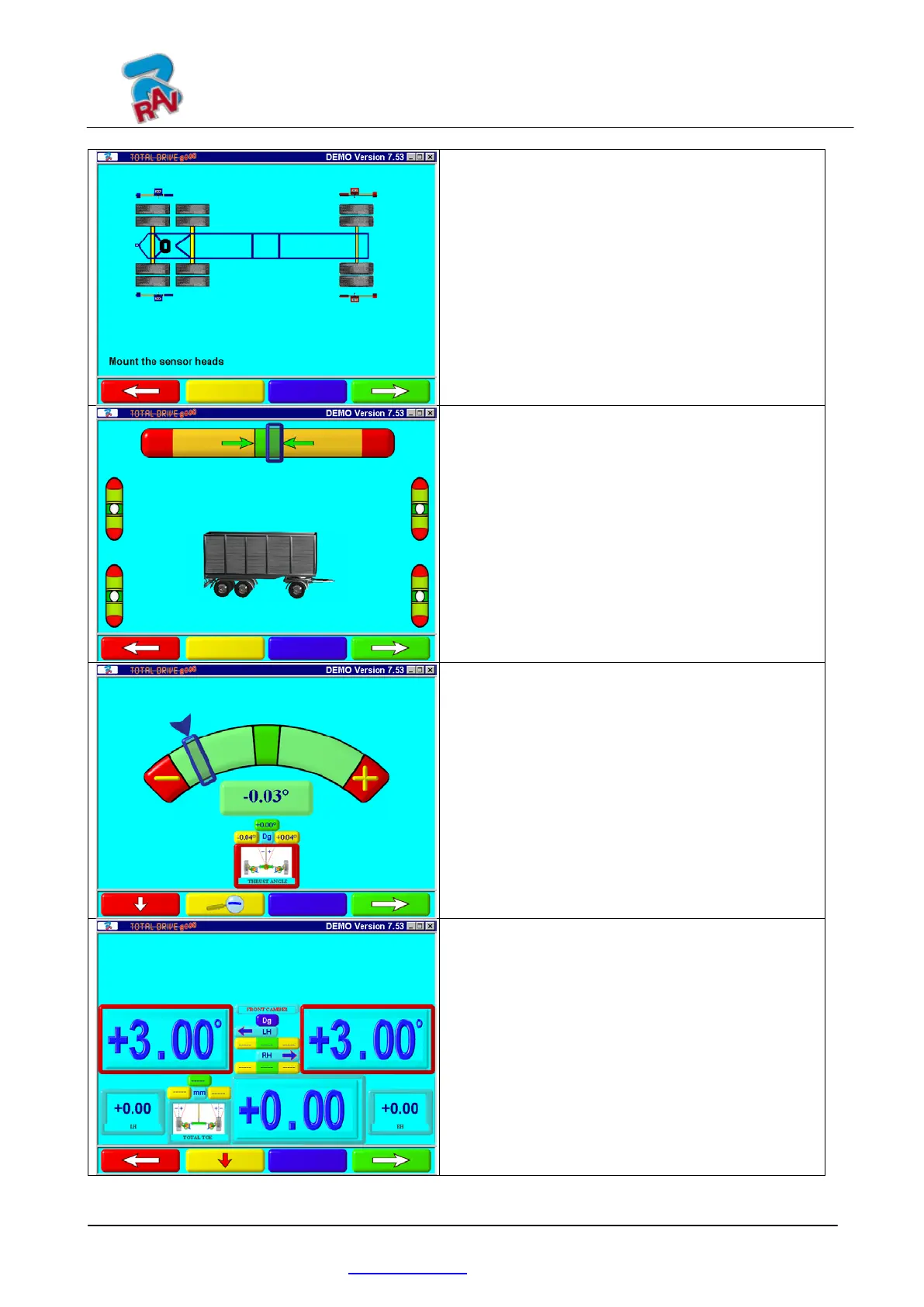

Mount the Front sensor heads in the 1
st
front axle
Mount the Rear sensor heads in the rear axle
(conventionally the Front Sensor are displayed
BLUE and the Rear are RED)
Press F4 to proceed
Steer the tongue straight ahead, meaning until
the display unit level is perfectly at centre.
Regulate the 4 sensors until they are levelled and
brake them by means of the knobs provided.
Wait until automatically appear the next page.
Adjust the rear thrust angle where
is possible and
needed on the rear axle.
Press F4 to proceed
Adjust the 1
st
front axle, Camber and Toe where
is possible and needed.
Press F4 to proceed
