INSTRUCTION MANUAL
RAV TD8060TWS - RAV TD8060TWSR
RAV TD8080TWS - RAV TD8080TWSR
Code M0230 - rev.1.1
(01/2014)
RAVAGLIOLI S.p.A.
Page 56/64

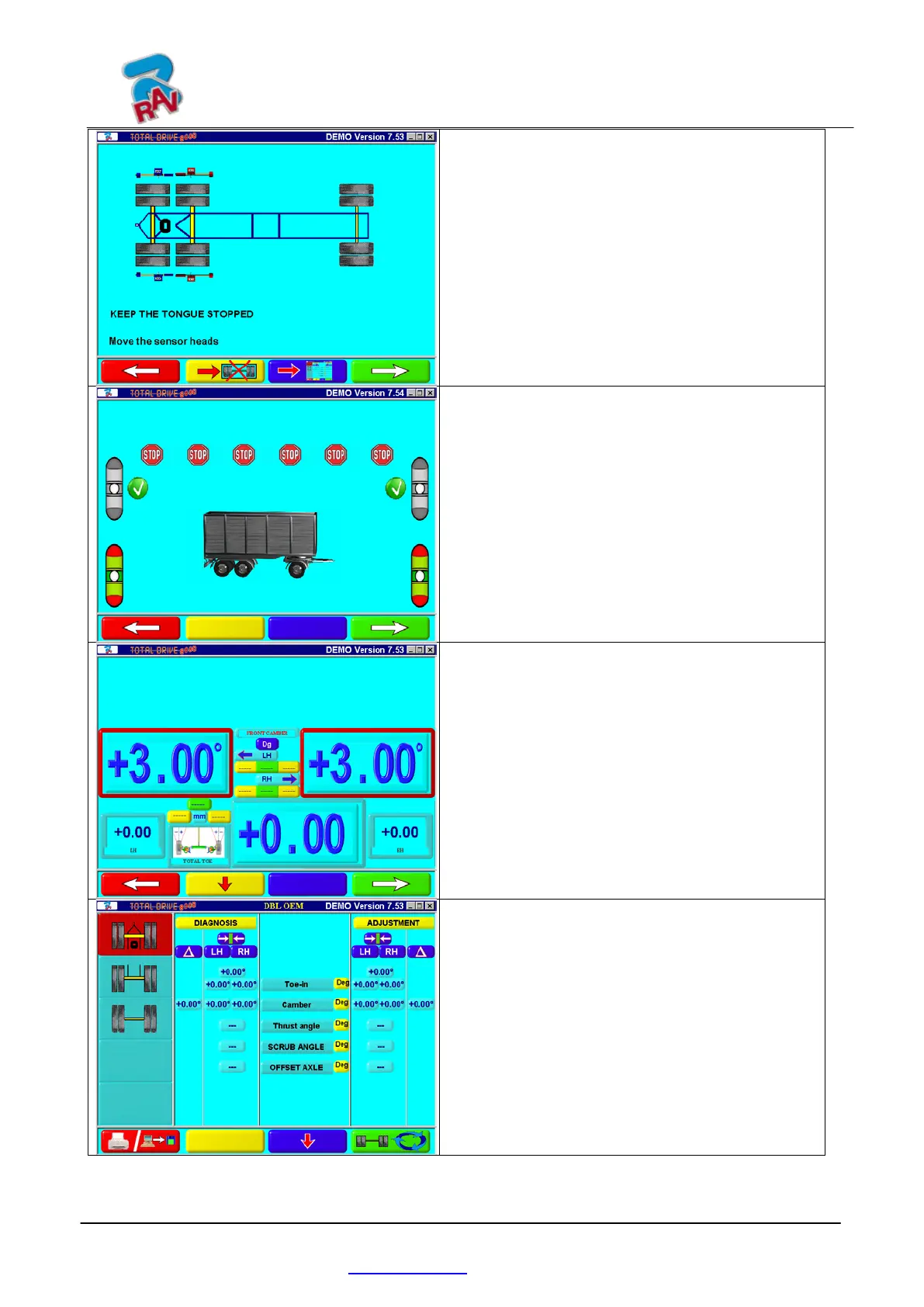

Move the Rear sensor heads from rear axle to
the 2
nd
front axle, Press F4 to proceed.
Important: Keep the tongue stopped.
Note: It is possible to skip this axle pressing F2,
or skip all the axles remained going directly in the
summary page pressing F3.
Level the Rear heads (mounted on the second
front axle), leaving the front sensor in their
position, and wait until automatically appear the
next page.
Adjust the 2
nd
front axle, Camber and Toe where
is possible and needed.
Press F4 to proceed
Appears the Summary page, representing
Diagnosis and adjustment data.
Press F1 to enter in the page where is possible
to print or save data
Press F2/F3 to select axle and display those data
Press F4 to select repeat the axle displayed
