Instruction manual
RAVTD3000 - RAVTD3000HP
RAVTD3000NRC - RAVTD3000ATS
Code M0215 - rev.1.1
(11/2012)RAVAGLIOLI S.p.A.
Page 8/52
RAVAGLIOLI S.p.A. - Via I° Maggio, n° 3 (Pontecchio Marconi)
40037 Sasso Marconi (Bologna - Italy)
Tel. 051/ 67.81.511 – Fax 051/ 84.64.67 E-mail: rav@ravaglioli.com
BATTERY
Connector for CABIN
connection
Head coupling plate
Connector for battery recharge/
external powering
Connector for MEASURING
HEAD connection
CCD sensors for
reciprocal angle compensation
Head support
Power supply
NiMH battery (NICKEL-METAL HYDRIDE)
12V- 4Ah
Average operation with fully
effective and charged battery
Approx. 8 hours
Average recharge time
Approx. 12 hours

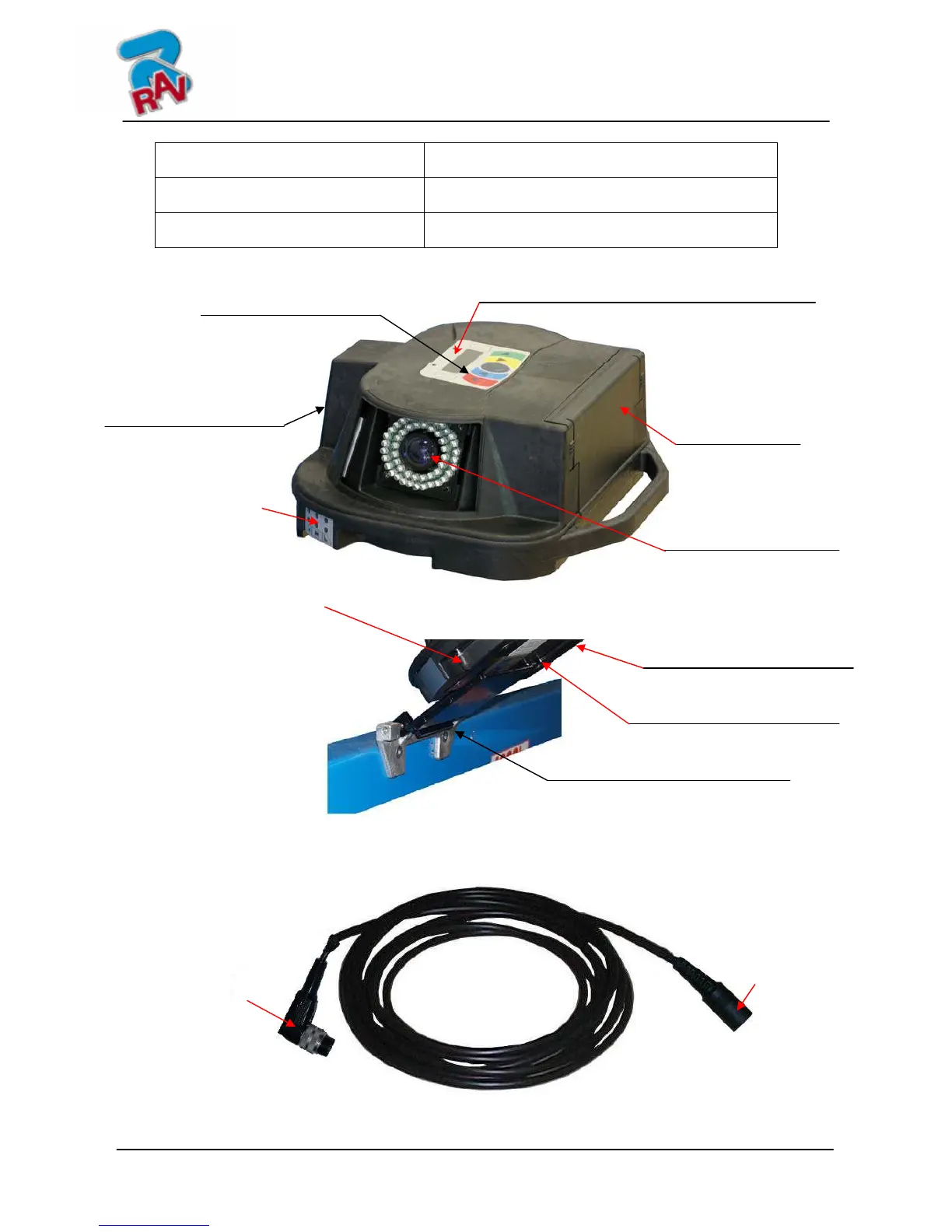

Figure 1
3.4.1 Power/recharge cables for measuring heads
DETECTOR KEYPAD
(see par. 3.4.2 on page 9)
GREEN LED: battery under charge / external powering
RED LED: indicating that detector is on
LED for tolerance indication
ONLY TD3000ATS/NRC/HP
(see par. 3.4.2 on page 9)
Megapixel camera with
infrared LED lighting
Camera orientation selector
(external, central, internal position)
ONLY mod. RAVTD3000NRC
