Instruction manual
RAVTD3000 - RAVTD3000HP
RAVTD3000NRC - RAVTD3000ATS
Code M0215 - rev.1.1
(11/2012)RAVAGLIOLI S.p.A.
RAVAGLIOLI S.p.A. - Via I° Maggio, n° 3 (Pontecchio Marconi)
Page 35/52
40037 Sasso Marconi (Bologna - Italy)
Tel. 051/ 67.81.511 – Fax 051/ 84.64.67 E-mail: rav@ravaglioli.com
10.12 Front Axle Adjustment
Front axle adjustment procedure is launched by selecting (Figure 42) in the rear axle
adjustment page after carrying out adjustment preliminary operations (see par. 10.10 on
page 34).
To adjust angles, the correct sequence is the following: CASTER – CAMBER – TOE.
WARNING: When entering this stage, caster values are “FROZEN”.
To “de-freeze” these values, you can press Shift+F6 at the same time. Or proceed to the
summary (see par. 10.13) and press F1. The programme will display an additional function
menu page (see par.10.14), now select “Caster Adjustment".
Once caster values have been adjusted or, even if they are not adjusted as they are deemed to
be correct, it is recommended to “FREEZE” again these values.
To repeat this operation, press Shift+F6 at the same time. A grid will be displayed onto caster
values, to indicate that they are “frozen.
Then adjust front axle

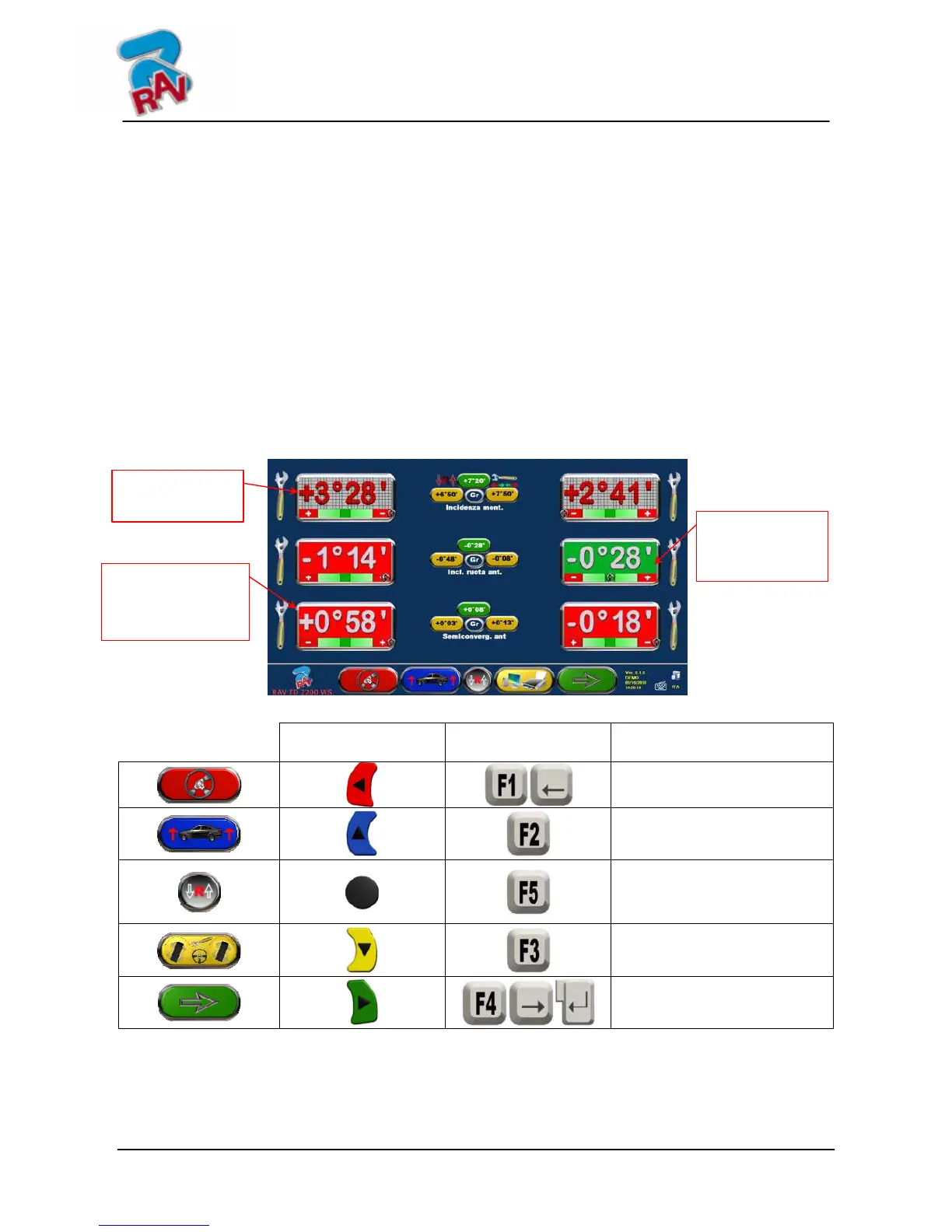

Figure 38
DETECTOR
KEYPAD
PC KEYPAD DESCRIPTION
Repeat steering procedure.
(par. 10.8 on page 32)
“Jack-Hold” procedure
(adjustment with raised
wheels)
Caster/camber selection:
It displays tolerance on the LED
for RAVTD3000ATS/NRC/HP
(see par.3.4.3)
It carries out toe-in
adjustment with steered
wheels. (See par.10.12.1)
It repeats adjustment
operations
(par. 10.11 on page 34)
(*) It is possible to display alternatively the partial and the total toe-ins by pressing Shift+F5
at the same time.
Front camber
measurement
s
Caster
measurement
Front partial toe-
in measurements
(*)
