4 SYSTEM FEATURES
4.1 Safety Devices
Wheel aligner features a safety device (master switch) positioned on the rear of the machine,
see chap. 3.1 on page 5 and chap. 3.2 on page 6. Master switch cuts off machine power
when set to “0”.
4.2 Measurement Range and Accuracy
Axle Measurement
A
ccuracy
Measurement
Range
Measurement
Total Range
Front
Toe

2’

2°  20° x 2
Partial toe

1’

1°  20°
Set-back

2

2°  5°
Camber

2’

3°  10°
Caster

5’

10°  18°
Kingpin

5’

10°  18°
Rear
Toe

2’

2°  20° x 2
Partial toe

1’

1°  20°
Set-back

2’

2°  5°
Camber

2’

3°  10°
Thrust angle

2’

2°  5°

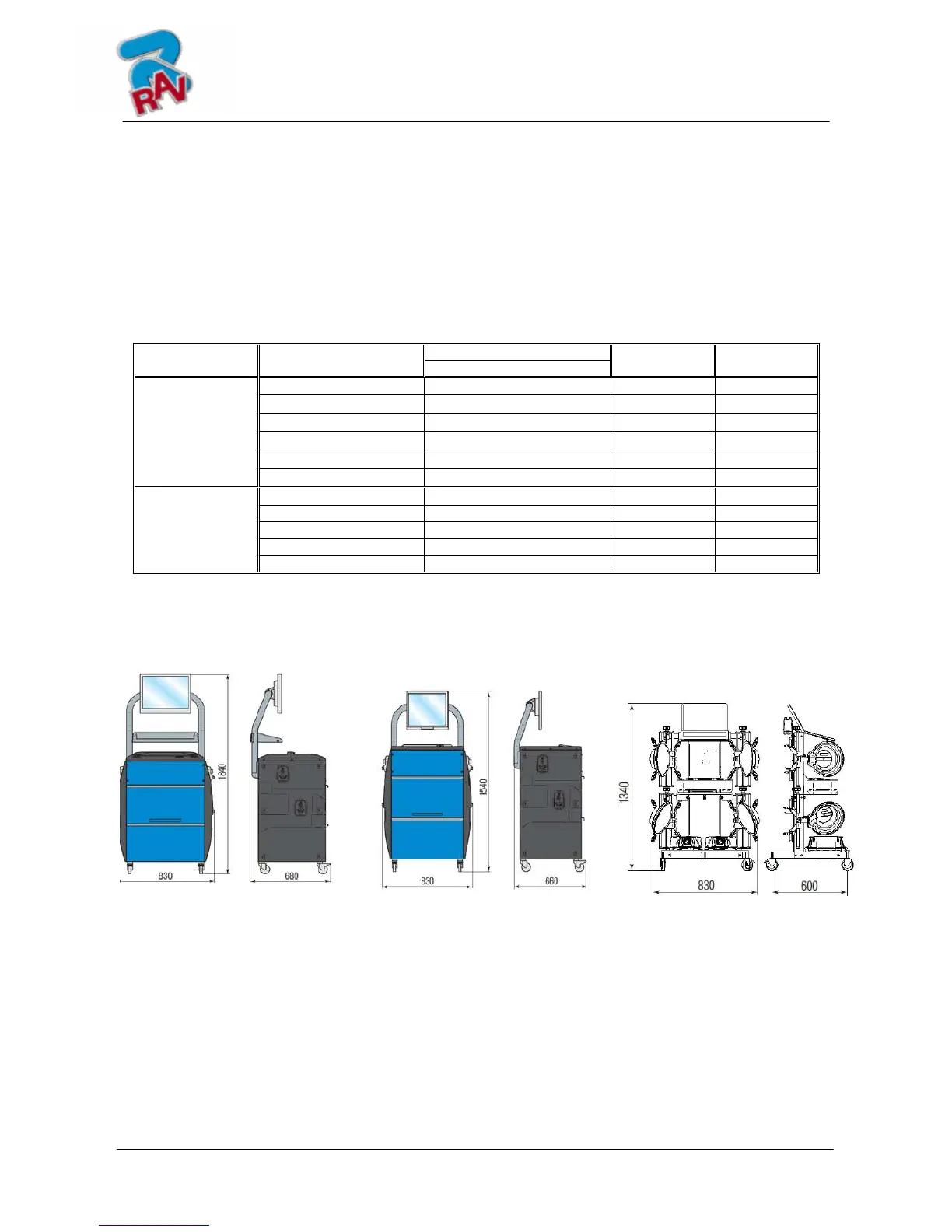

4.3 Overall Dimensions
Figure 6
RAVTD3000ATS
RAVTD3000NRC
RAVTD3000HP
RAVTD3000
