Ravaglioli RAVTD3000HP User Manual

Instruction manual
RAVTD3000 - RAVTD3000HP
RAVTD3000NRC - RAVTD3000ATS
Code M0215 - rev.1.1
(11/2012)RAVAGLIOLI S.p.A.
Page 34/52
RAVAGLIOLI S.p.A. - Via I° Maggio, n° 3 (Pontecchio Marconi)
40037 Sasso Marconi (Bologna - Italy)
Tel. 051/ 67.81.511 – Fax 051/ 84.64.67 E-mail: rav@ravaglioli.com

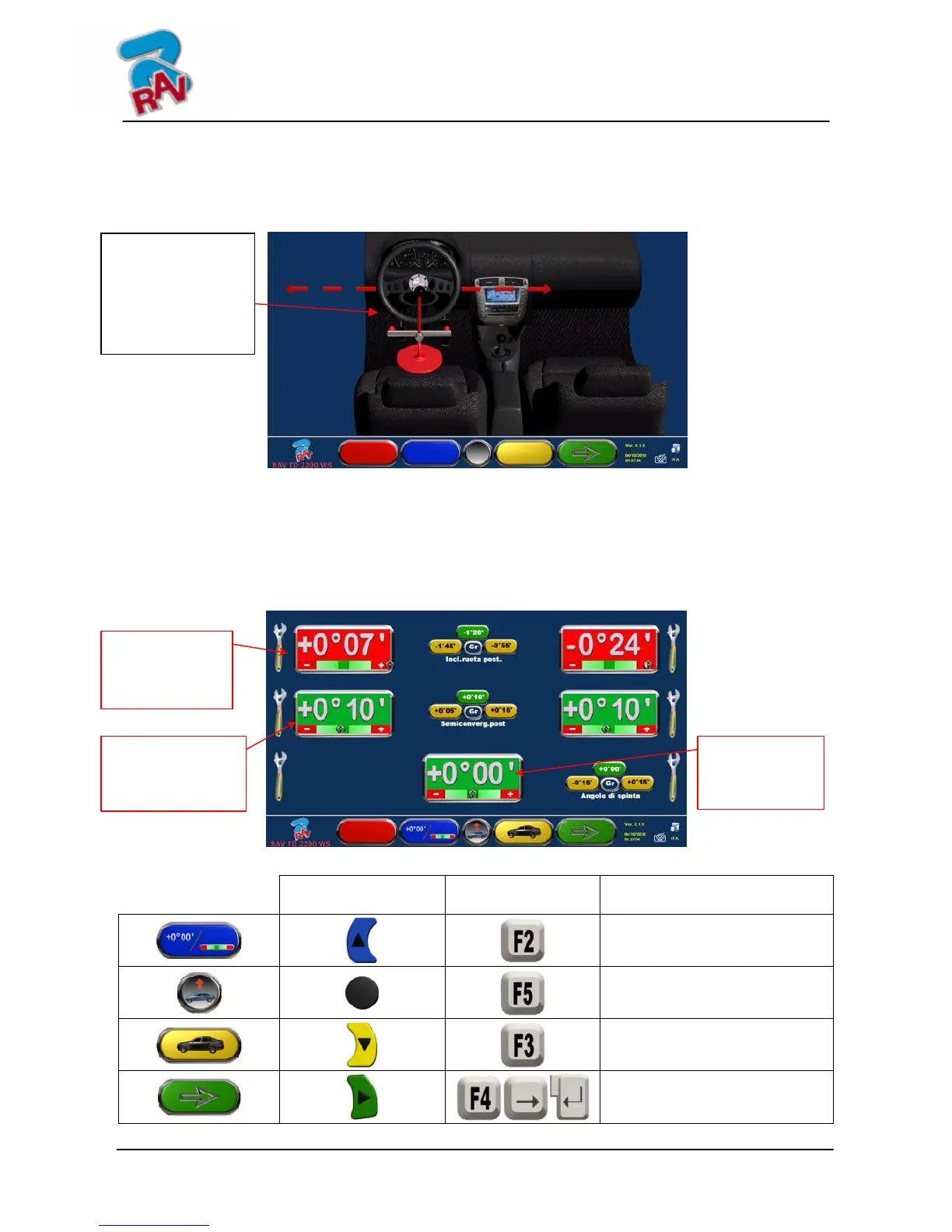

10.10 Adjustment Preliminary Operations
By selecting F4 from Figure 35 (see par. 10.9 on page 33), it is necessary to carry out
adjustment preliminary operations. Follow the displayed instructions to carry out adjustment
preliminary operations. Press F4 to continue.
Figure 36
10.11 Rear Axle Adjustment
Rear axle adjustment procedure can be made by pressing F4 from Figure 36 after carrying
out adjustment preliminary operations (par. 10.10 on page 34).
Proceed to adjustment, where allowed, as follows:
 Rear camber - Rear partial toe
Figure 37
DETECTOR
KEYPAD
PC KEYPAD DESCRIPTION
It changes values displaying
layout
(large numbers/large cursors)
“Jack-Hold” procedure
(adjustment with raised
wheels)
It displays vehicle technical
specification page.
(par. 10.4 on page 27)
It continues to front axle
adjustment.
(par. 10.12 on page 35)
1. Place steering
wheel in straight
position.
2. Lock steering
wheel with the
special tool, and
continue.
Rear camber
measurements
Rear partial toe
measurements
Thrust angle
measurements
