Instruction manual
RAVTD3000 - RAVTD3000HP
RAVTD3000NRC - RAVTD3000ATS
Code M0215 - rev.1.1
(11/2012)RAVAGLIOLI S.p.A.
Page 6/52
RAVAGLIOLI S.p.A. - Via I° Maggio, n° 3 (Pontecchio Marconi)
40037 Sasso Marconi (Bologna - Italy)
Tel. 051/ 67.81.511 – Fax 051/ 84.64.67 E-mail: rav@ravaglioli.com

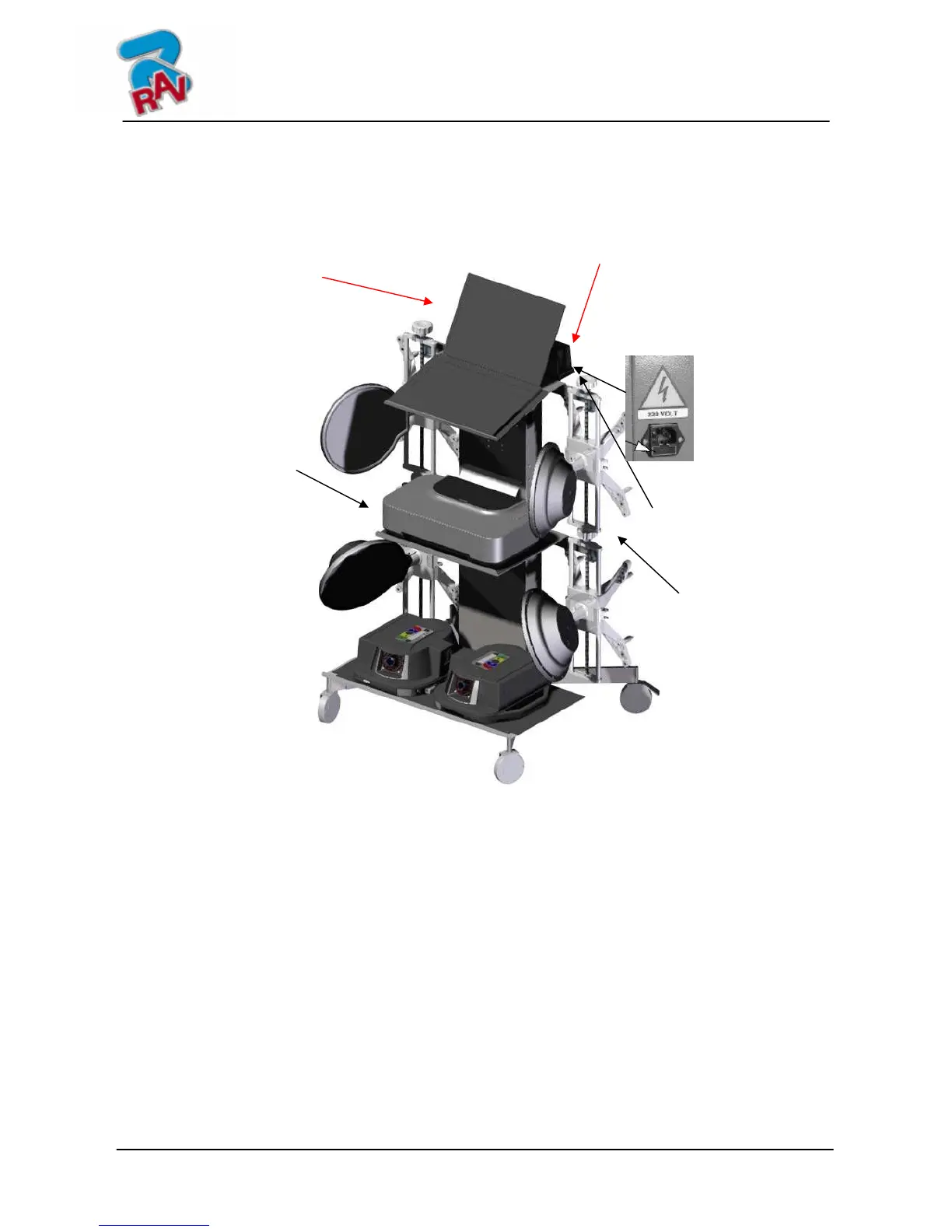

3.2 Cabinet of models RAVTD3000
MEASUREMENT CABIN
A measurement cabin is used for
all measurement operations. This
cabin also features the electronic
components necessary for the
processing and management of
the measurements made by the
sensors.
Power supply: 220 / 240 Vac single
phase 50/60Hz
Max. absorbed power: 500w
PRINTER CENTRAL
COMPARTMENT
Results are printed with a inkjet
colour printer for A4 size sheets.
Printer use and maintenance
instructions can be found on the
manual coming with the printer
itself. Comply with these
instructions.
MANAGING PC
For PC characteristics
See par. 3.3 page 7
MACHINE MASTER SWITCH
POWER SOCKET
SHOCK HAZARD
Battery recharge support
(ONLY preset models)
4 supports for
housing the clamps
with target
