Instruction manual
RAVTD3000 - RAVTD3000HP
RAVTD3000NRC - RAVTD3000ATS
Code M0215 - rev.1.1
(11/2012)RAVAGLIOLI S.p.A.
RAVAGLIOLI S.p.A. - Via I° Maggio, n° 3 (Pontecchio Marconi)
Page 5/52
40037 Sasso Marconi (Bologna - Italy)
Tel. 051/ 67.81.511 – Fax 051/ 84.64.67 E-mail: rav@ravaglioli.com

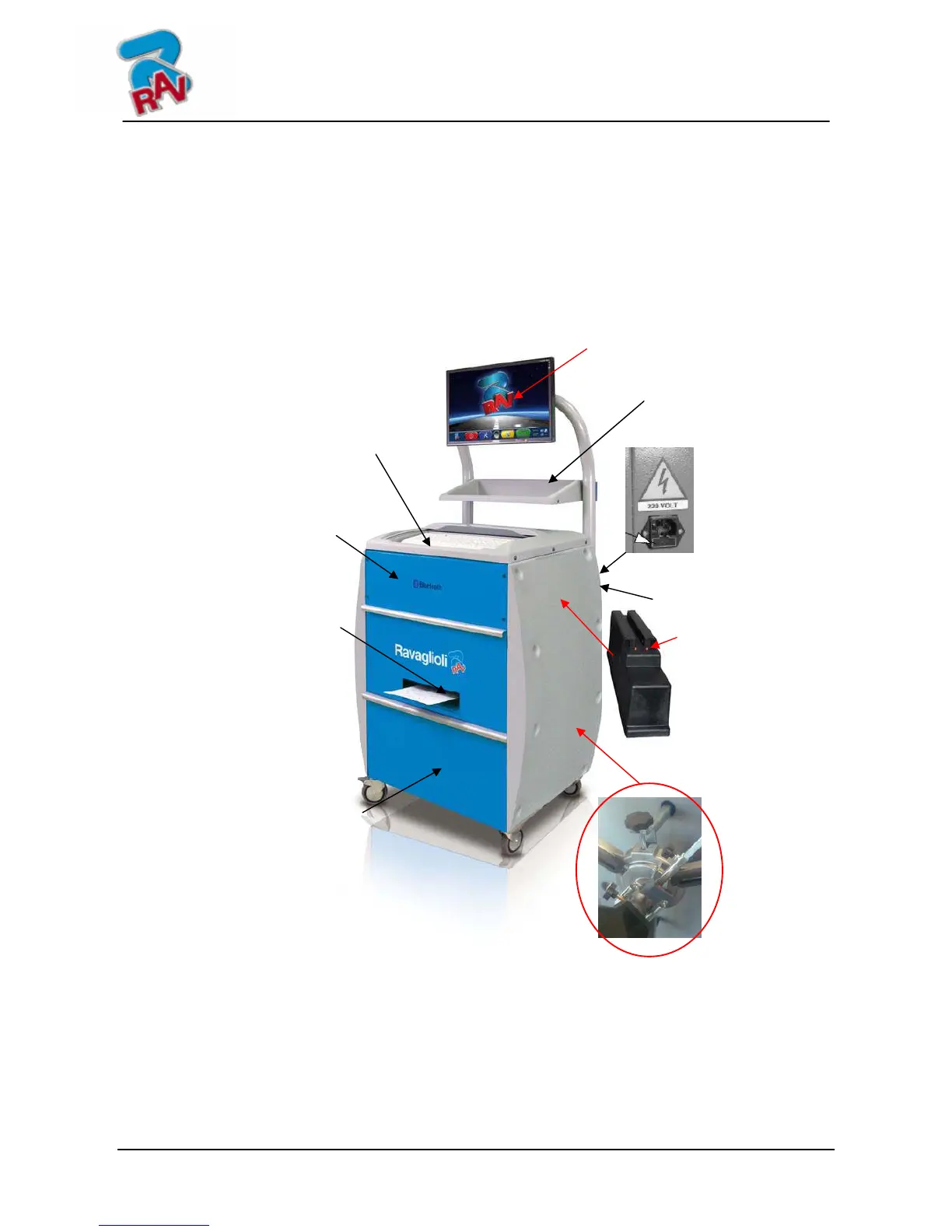

3 MACHINE COMPOSITION
3.1 Cabinet of models RAVTD3000/ATS/NRC/HP
MEASUREMENT CABIN
A
measurement cabin is used for all measurement
operations. This cabin also features the electronic
components necessary for the processing and
management of the measurements made by the
sensors.
Power supply: 220 / 240 Vac single phase 50/60Hz
Max. absorbed power: 500w
PC KEYPAD
Machine features a 102-key, PC-type command
keyboard. Function keys allow using almost all
machine functions. Vehicle general data,
customer data, and vehicle database
customisation can also be entered via PC
keyboard.
MONITOR
All models feature high-definition,
colour monitor 22'' 16/9. Use and
maintenance instructions can be
found on the manual coming with the
monitor itself. Comply with these
instructions.
PRINTER CENTRAL
COMPARTMENT
Results are printed with a inkjet colour
printer for A4 size sheets. Printer use
and maintenance instructions can be
found on the manual coming with the
printer itself. Comply with these
instructions.
MANAGING PC UPPER
COMPARTMENT
For PC characteristics
See par. 3.3 page 7
MACHINE MASTER SWITCH
POWER SOCKET
SHOCK HAZARD
Battery recharge support
(ONLY preset models)
LED indicating
battery under charge
4 supports for
housing the clamps
with target
GLOVE COMPARTMENT SHELF
Only for RAVTD3000ATS
