Instruction manual
RAVTD3000 - RAVTD3000HP
RAVTD3000NRC - RAVTD3000ATS
Code M0215 - rev.1.1
(11/2012)RAVAGLIOLI S.p.A.
Page 32/52
RAVAGLIOLI S.p.A. - Via I° Maggio, n° 3 (Pontecchio Marconi)
40037 Sasso Marconi (Bologna - Italy)
Tel. 051/ 67.81.511 – Fax 051/ 84.64.67 E-mail: rav@ravaglioli.com

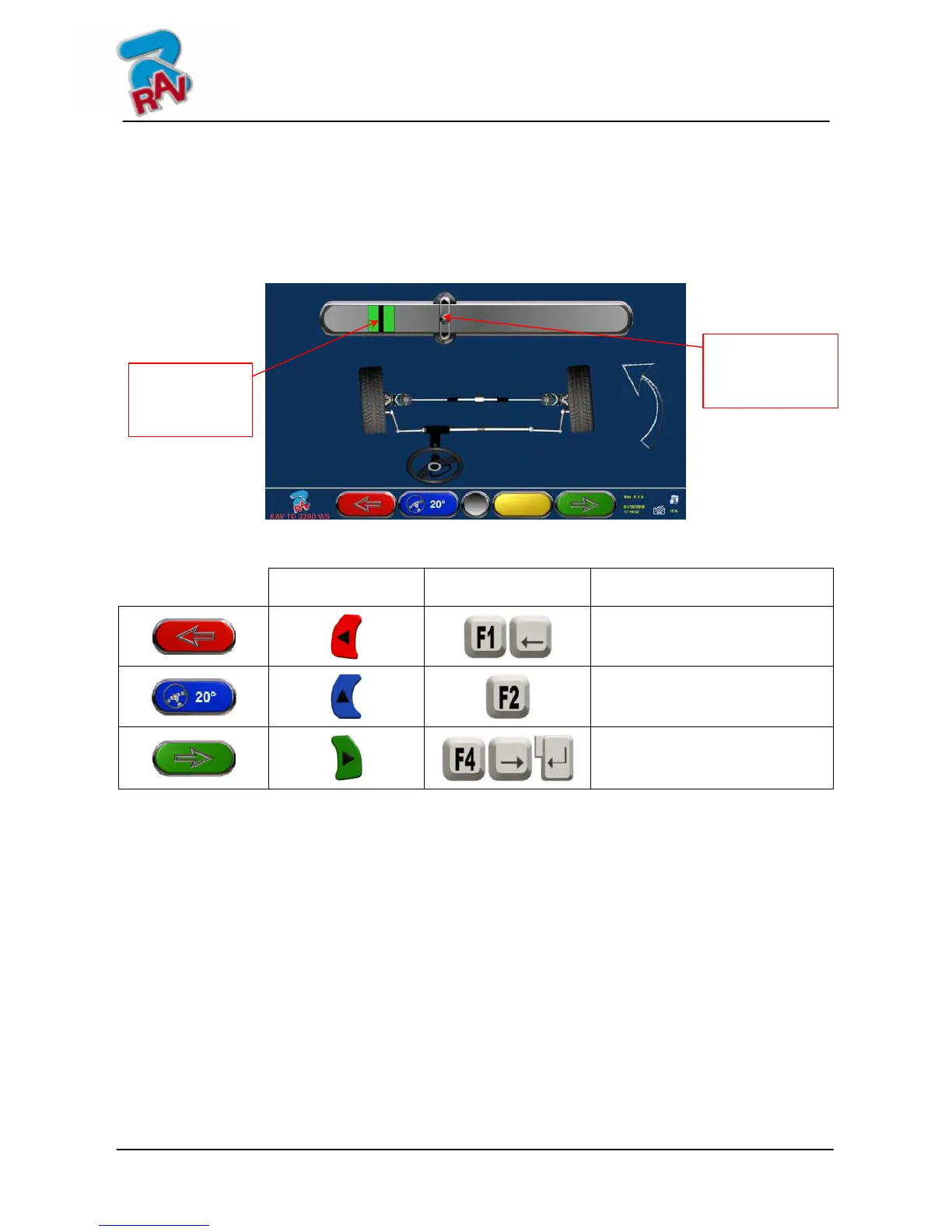

10.8 Steering Procedure
After wheels have been aligned (see par. 10.7 on page 31), the steering procedure can be
carried out in order to define:
Caster
Kingpin
Included angle
Figure 32
DETECTOR
KEYPAD
PC KEYPAD DESCRIPTION
Repeat alignment and levelling
procedure
(par. 10.7 on page 31)
Press this key to select the
type of steering to be made. (*)
It displays vehicle diagnosis
page
(par. 10.9 on page 33)
(*) Type of steering to be made:
Steering at 20°
ACK steering (at 20° with steering geometry)
Steering at 10°
Max. steering
Steering procedure can also be skipped: the values of the above-specified data measurements
will not be available. To skip the procedure, press F4 to directly display vehicle diagnosis
page.
Should the procedure not be carried out at this stage but only at the end of adjustments, you
can select the corresponding option from the menu.
Steering level
indicator
Steering
target point
