10.4 Selected Vehicle Technical Specification Displaying

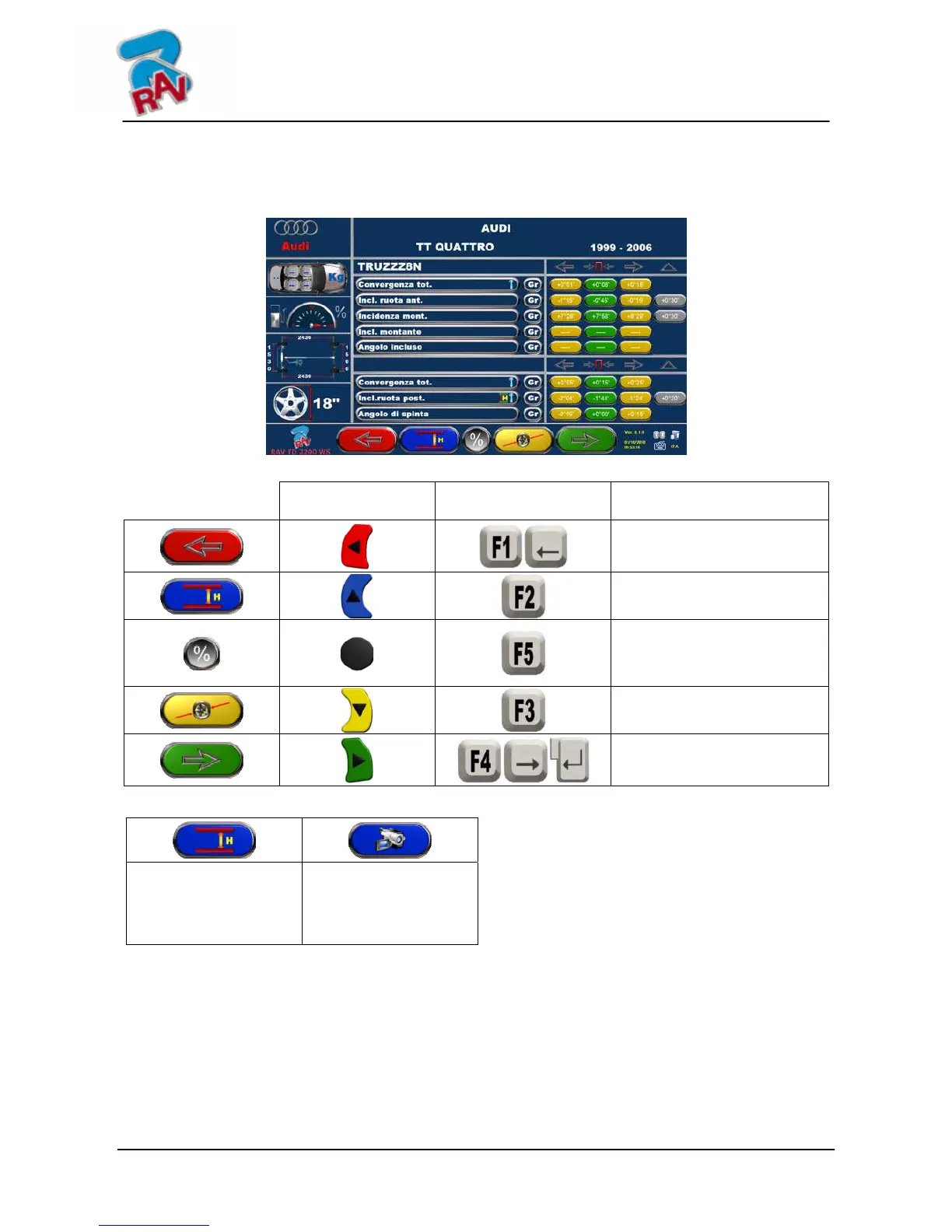

When selecting a vehicle (see par. 10.3 on page 25), a page showing the measurements and
tolerances supplied by the manufacturer is displayed.
Figure 23
DETECTOR
KEYPAD
PC KEYPAD DESCRIPTION
It goes back to vehicle
selection
(par.10.3 on page 25)
See
(*) Key description
It displays vehicle technical
specifications next page, and
any graphic animation
See (*) Key description
It changes rim diameter
value
It goes to out-of-centre
operations
(par.10.5 on page 28)
(*) Key description
Possibility to enter
chassis height or
kingpin data, as
envisaged by the
manufacturer
Press F5
To display any graphic
animation
