Instruction manual
RAVTD3000 - RAVTD3000HP
RAVTD3000NRC - RAVTD3000ATS
Code M0215 - rev.1.1
(11/2012)RAVAGLIOLI S.p.A.
RAVAGLIOLI S.p.A. - Via I° Maggio, n° 3 (Pontecchio Marconi)
Page 15/52
40037 Sasso Marconi (Bologna - Italy)
Tel. 051/ 67.81.511 – Fax 051/ 84.64.67 E-mail: rav@ravaglioli.com
5.2.4 Mounting the measurement head unit supports
In order to be able to fit the measurement head unit supports it is necessary to drill two M8
holes on each side of the vehicle lift. This should be done in such a way that the distance
from the centres of the measurement head units to the centres of the turn plates is 1200mm.
If you need to work on vehicles with long wheelbases, turn plates can be moved forward up to
another 400 mm. The maximum distance from the rear wheels to the centres of the
measurement head units is 3100 mm.

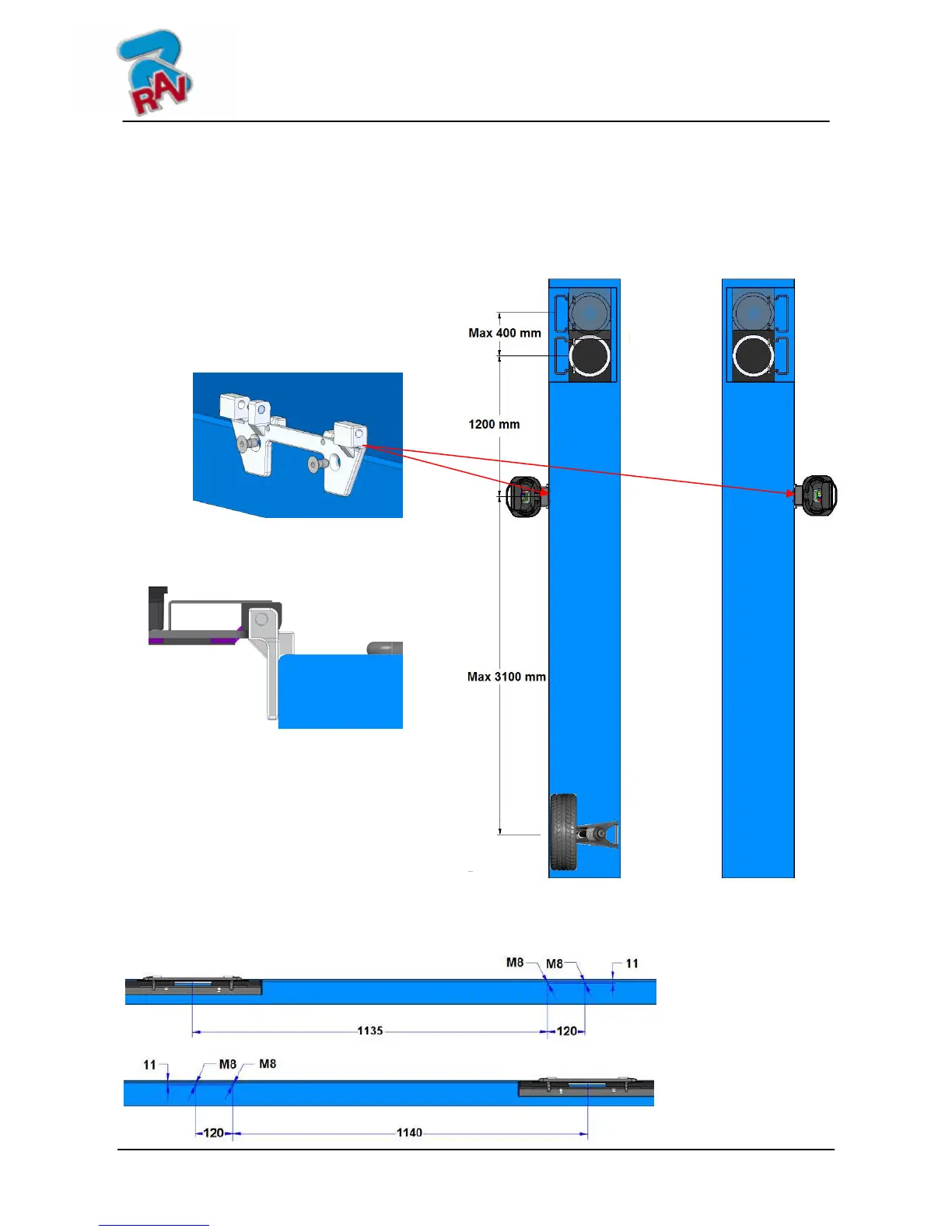

Figure 8
The figure below shows the left and right hand head unit mounting bracket hole patterns.
Note: The distance from the centre of the plate is slightly different (5mm). This is due to the
asymmetry of the support itself with respect to the two holes.
Left Hand mounting
bracket hole pattern
Right Hand mounting
bracket hole pattern
