Instruction manual
RAVTD3000 - RAVTD3000HP
RAVTD3000NRC - RAVTD3000ATS
Code M0215 - rev.1.1
(11/2012)RAVAGLIOLI S.p.A.
RAVAGLIOLI S.p.A. - Via I° Maggio, n° 3 (Pontecchio Marconi)
Page 37/52
40037 Sasso Marconi (Bologna - Italy)
Tel. 051/ 67.81.511 – Fax 051/ 84.64.67 E-mail: rav@ravaglioli.com
10.13 Summary of DIAGNOSIS and ADJUSTMENT data

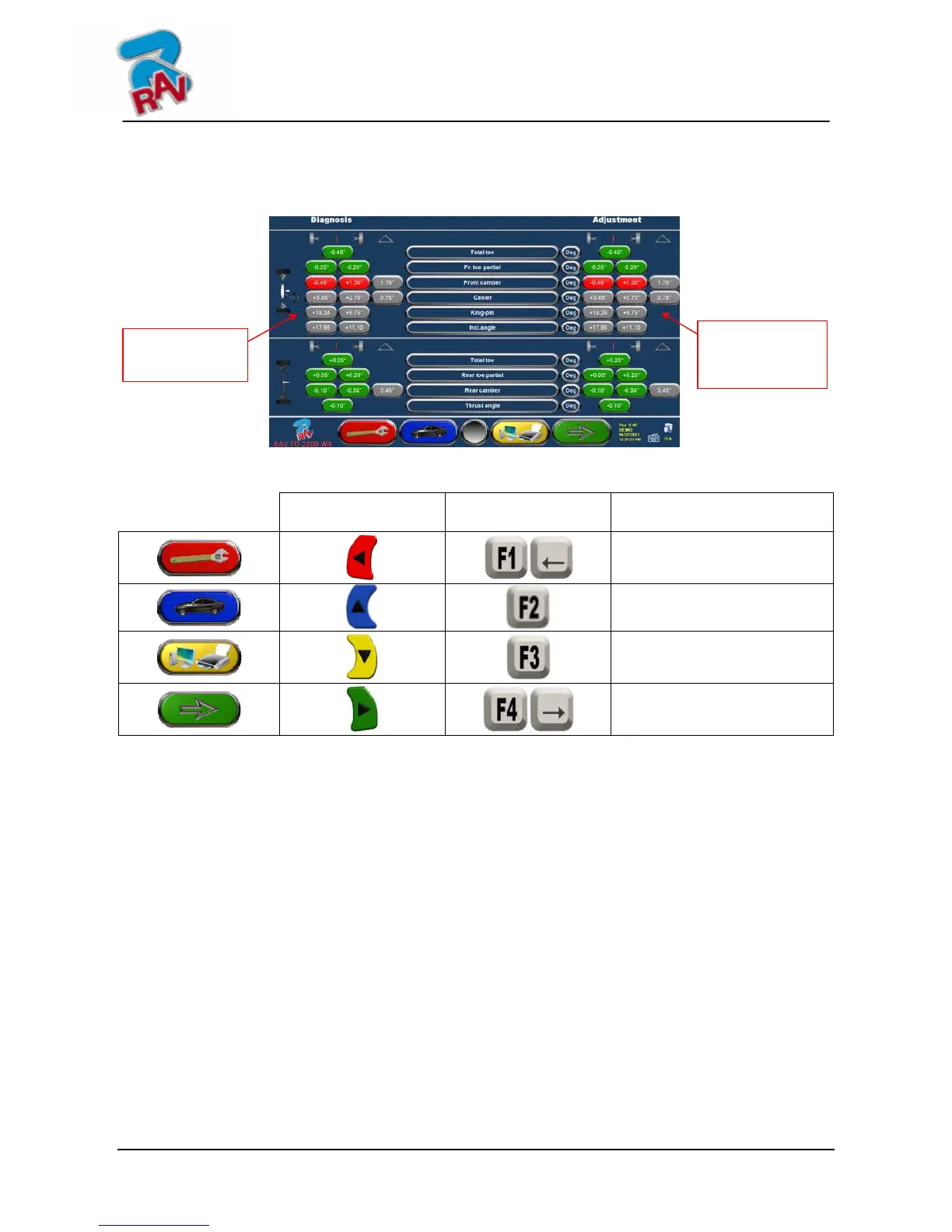

This page is displayed when vehicle adjustment has been completed, after pressing F4 in the
front adjustment phase, see Figure 38.
Figure 41
DETECTOR
KEYPAD
PC KEYPAD DESCRIPTION
It displays the additional
function menu. See par.
10.14
It displays vehicle technical
specification page.
Operations completed!
Customer data entry and
printout. See par. 10.15
It returns to rear adjustment
phase.
See par. 10.11
Summary of
diagnosis data
Summary of
adjustment
carried out
