Chapter 5
26
SCS 450 Serial Interface Installation & Service Manual
Console F
ea
tur
es

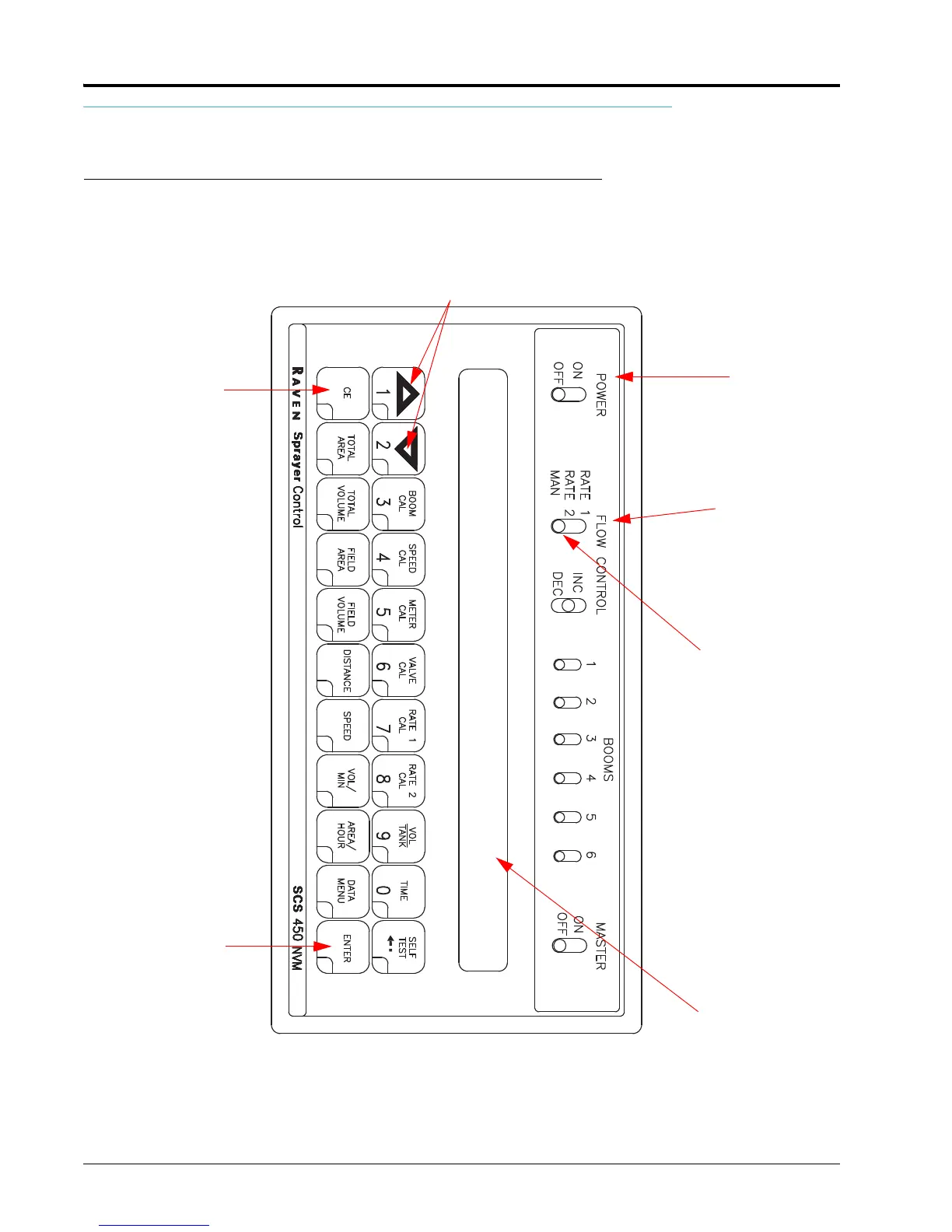

FIGURE 2.
SCS 450 Serial Console
Selects manual or
fully automatic
control
Manual override
control provides the
capability of spot
application
T
urns the console
power on or
off
T
oggles to variable
submenus within a
menu (except in
Data Menu)
Enters the
information
inputted into the
console
Displays the rate of
application,
calibration, and
function data.
Used to scroll
through the
menu options in
Dat
a Menu
29
31
Table of Contents
Default Chapter
3
Table of Contents
3
Chapter 1 Important Safety Information
5
Important Safety Information
5
Electrical Safety
6
Hydraulic Safety
6
Chapter 2 Introduction
7
Introduction
7
Unit Definitions and Conversions
8
Unit of Measure Definitions
8
Unit of Measure Conversions
8
Calculating Machine's Calibration Values
9
Calculate the Boom Cal Value
9
Calculate the Speed Cal Value
9
Calculate the Meter Cal Value
11
Calculate the Valve Cal Value
11
Calculate the Rate 1 and Rate 2 Cal Values
12
Verifying Flow Rate Limits
13
Calibration Card
15
Introduction
15
Chapter 3 Calibration Card
15
Chapter 4 Installation
17
Wheel Drive Speed Sensor
18
Phoenix 10 GPS Speed Sensor
20
Flow Meter Installation
21
Mounting the Flow Meter
21
Install the Pressure Transducer - Optional
21
Control Valve Installation
22
Install the Control Valve
22
Alternate Bypass Line Plumbing System
23
Connect the Flow Control Cable Boom Valve Connectors
23
Console and Cabling Installation
24
Install the Remote Switch - Optional
26
Battery Connections
27
Installation
17
Sensor Installation
17
Raven Radar Speed Sensor
17
Console Programming and Calibration
29
Console Identification
29
Console Features
30
Button Definitions
31
Chapter 5 Console Programming and Calibration
31
Console Programming
32
Data Entry
32
Initial Console Programming
32
Changing Initial Console Programming
34
Programming Additional System Data
35
System Features
36
Data Menu
36
Data Logger On/Off
37
Self Test Feature
38
Volume/Min Rate Fault
39
Volume/Area Rate Alarm
39
Low Tank Fault
39
Automatic Rate
39
Control Valve Delay and Valve Advance
40
Zero Speed Shut-Off
40
Data Lock Feature
40
Decimal Shift Feature
41
Manual No. 016-0159-831 I
31
Initial System Setup and Testing
43
Initial System Setup
43
Alternate Bypass Line System Setup
44
Initial System Field Test
45
Alternate Bypass Plumbing Initial System Field Test
45
Chapter 6 Initial System Setup and Testing
45
Preventative Maintenance & Troubleshooting
47
General Preventative Maintenance
47
Flow Meter Maintenance
47
Flow Meter Preventative Maintenance and Adjustment
47
Testing Flow Meter Cables
48
Recalibrating the Flow Meter
49
Chapter 7 Preventative Maintenance & Troubleshooting
49
Speed Sensor Cables
50
Testing Speed Sensor Extension Cables
50
Troubleshooting
51
Console Issues
51
Rate Control Issues
52
Chapter 8 Replacement Parts
55
Replacement Parts
55
Limited Warranty
59
