9
POWER -Turns Console power ON or
OFF. Turning Console OFF does not
affect the data stored in the
computer.
CE -Exits ENTER mode and is also
used to select the features listed
in IMPORTANT box above.
Displays actual rate of application
and other messages.
ENTER -Used only to enter data into
the Console.
Displays function and calibration
data.
Manual override control provides
capability for spot applications.
Selects manual or fully automatic
control.

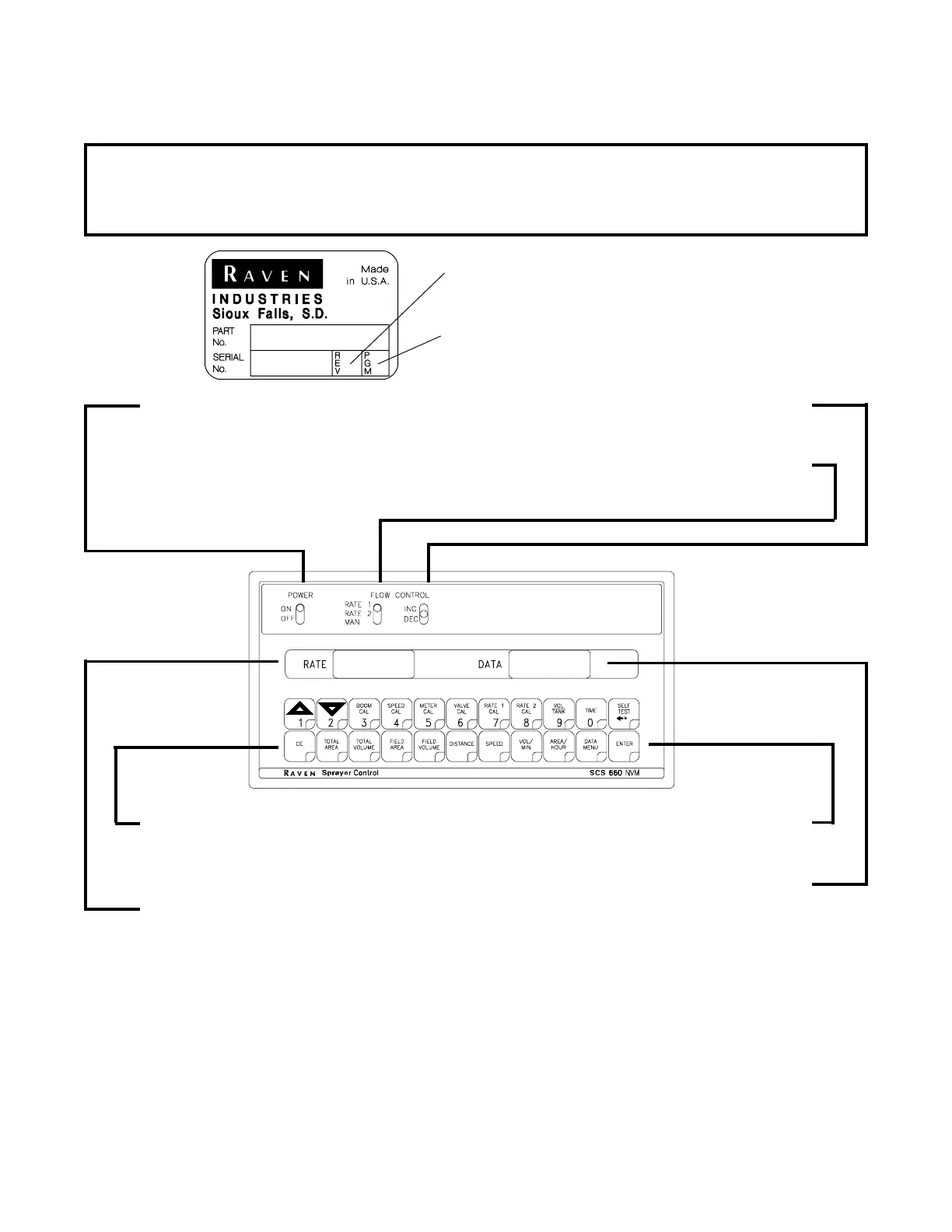

CONSOLE FEATURES
IMPORTANT:
This Console requires selection of US (acres), SI [hectares], or TU
{1,000 sq. ft.} area; SP1 (wheel drive, etc.) or SP2 (radar) speed sensor; LI
(liquid sprayer), GR1 (single bed belt), or GR2 (split bed belt); and C-Sd
(Standard Valve), C-F (Fast Valve), and C-FC (Fast Close Valve).
Console Revision can be determined by letter
stamped in REV box on label.
Console Program can be determined by letter
stamped in PGM box on label.
CALIBRATION KEYS -- Used to enter data into the
Console to calibrate the system.
BOOM CAL -- Width of Boom 1-2. Select
Boom number by using the
UP/DOWN arrow keys.
SPEED CAL -- Determined by Speed Sensor
METER CAL -- Density/Spreader Constant
VALVE CAL -- Valve Response Time
RATE 1 CAL -- Target Application Rate
RATE 2 CAL -- Target Application Rate
VOL/TANK -- Volume in Tank *
TIME -- Time/Date features
SELF TEST -- Simulates Vehicle Speed
* Volumes are displayed with both the RATE and
DATA displays when in GRANULAR mode.
063-0171-XXX
FUNCTION KEYS -- Used to Display Data
TOTAL AREA -- Total Area Applied
TOTAL VOLUME -- Total Volume Applied *
FIELD AREA -- Field Area Applied
FIELD VOLUME -- Field Volume *
DISTANCE -- Distance Traveled
SPEED -- Speed of Vehicle
VOL/MIN -- Volume Per Minute
AREA/HOUR -- Area per Hour
DATA MENU -- Various options
