43
APPENDIX 8
BIN LEVEL
SENSOR INST
ALLA
TION
063-0171-252

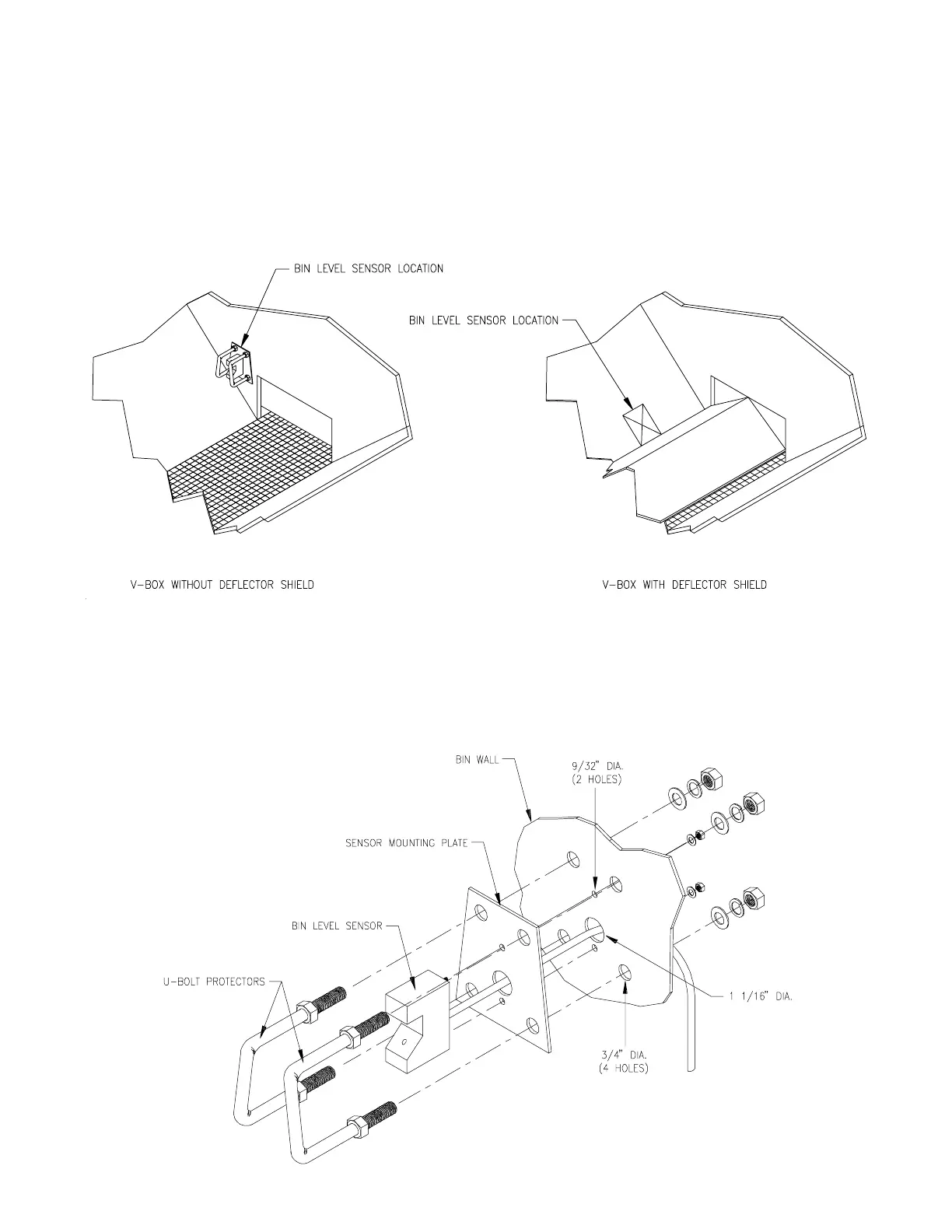

Install Bin Level Sensor in spreader bin at location illustrated. Select location in
accordance to bin construction.
Use the mounting plate as a template to mark the location for the holes. Drill and deburr
all holes. Route the sensor cable and secure the mounting plate to the bin wall using
U-bolt protectors. Route and connect the sensor cable connector to the flow cable
connector. Secure all cables with plastic cable ties.
44
46
Table of Contents
Table of Contents
3
Symbol Definition
4
Introduction
5
Installation
6
Mounting the Raven Radar Speed Sensor
6
Mounting the Encoder
7
Mounting the Hydraulic Control Valve
8
Mounting the Console and Cabling
9
Battery Connections
10
Console Features
11
Console Calibration
12
Calculating "Boom Cal
12
Calculating "Speed Cal
12
Calculating "Spreader Constant
13
Calculating "Meter Cal
13
Calculating "Valve Cal
14
Calculating "Rate Cal
14
Console Programming
15
Initial Console Programming
16
Other Display Features
21
Self Test Feature
22
Volume/Minute Rate Fault
22
Volume/Area Rate Alarm
22
Low Tank Fault
22
Automatic Rate
23
Control Valve Delay
23
Sequence to Activate Data-Lock
23
10. Sequence to Change Data-Lock
23
11. Enter Mode Sequence with Activated Data-Lock
24
12. Data Menu
24
13. Decimal Shift
31
Initial System Set-Up
32
Initial System Field Test
32
Troubleshooting Guide
33
Appendixes
35
Procedure to Test Speed Sensor Extension Cables
35
Procedure to Test Encoder Cables
36
Fan Rpm Sensor Installation
37
Bin Level Sensor Installation
38
Verification of Spreader Constant
41
Wheel Drive Speed Sensor Installation
42
Speedometer Drive Speed Sensor Installation
45
Serial Interface
46
Scs 660 Communication Strings
47
