APPENDIX 2
SPEEDOMETER DRIVE SPEED SENSOR INSTALLATION AND
CALIBRATION PROCEDURE

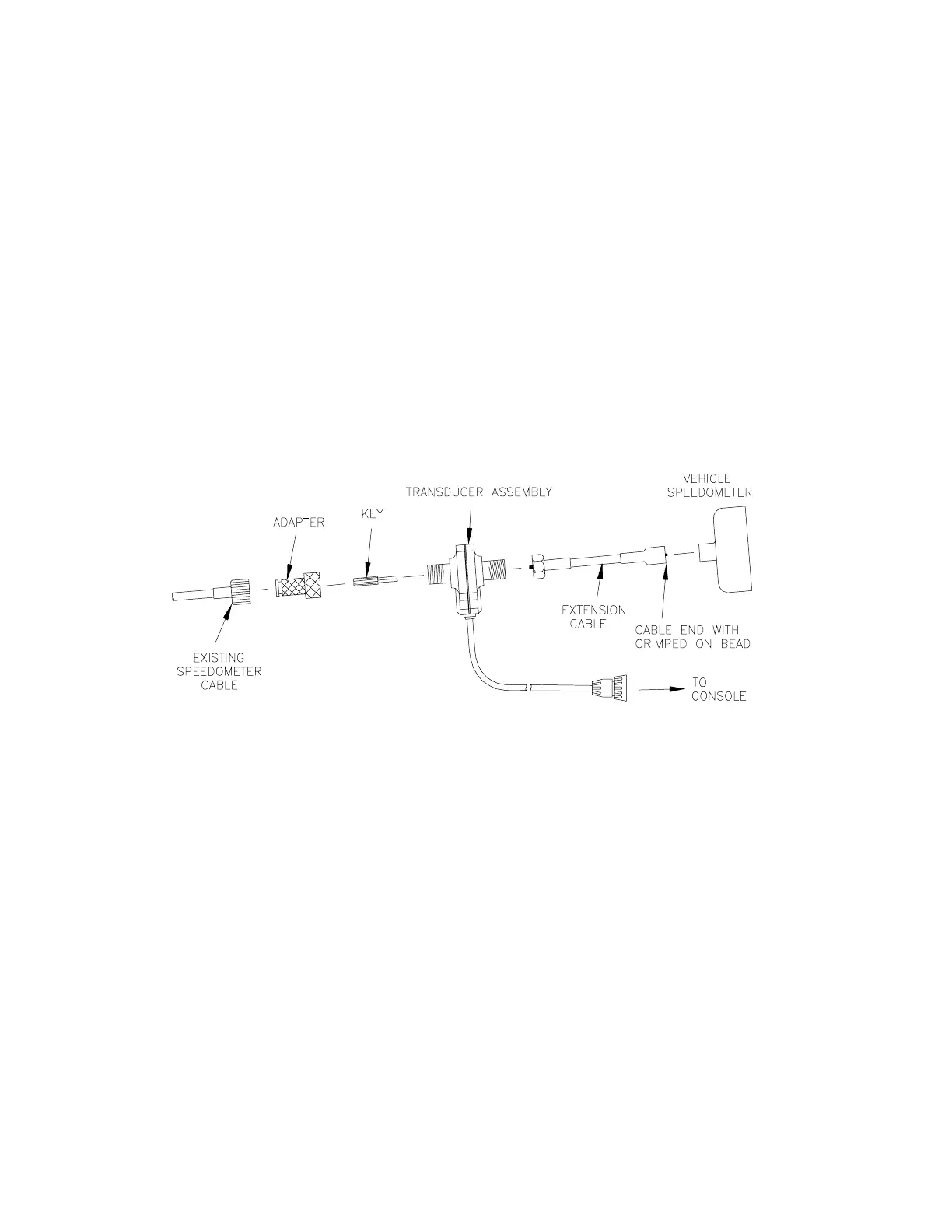

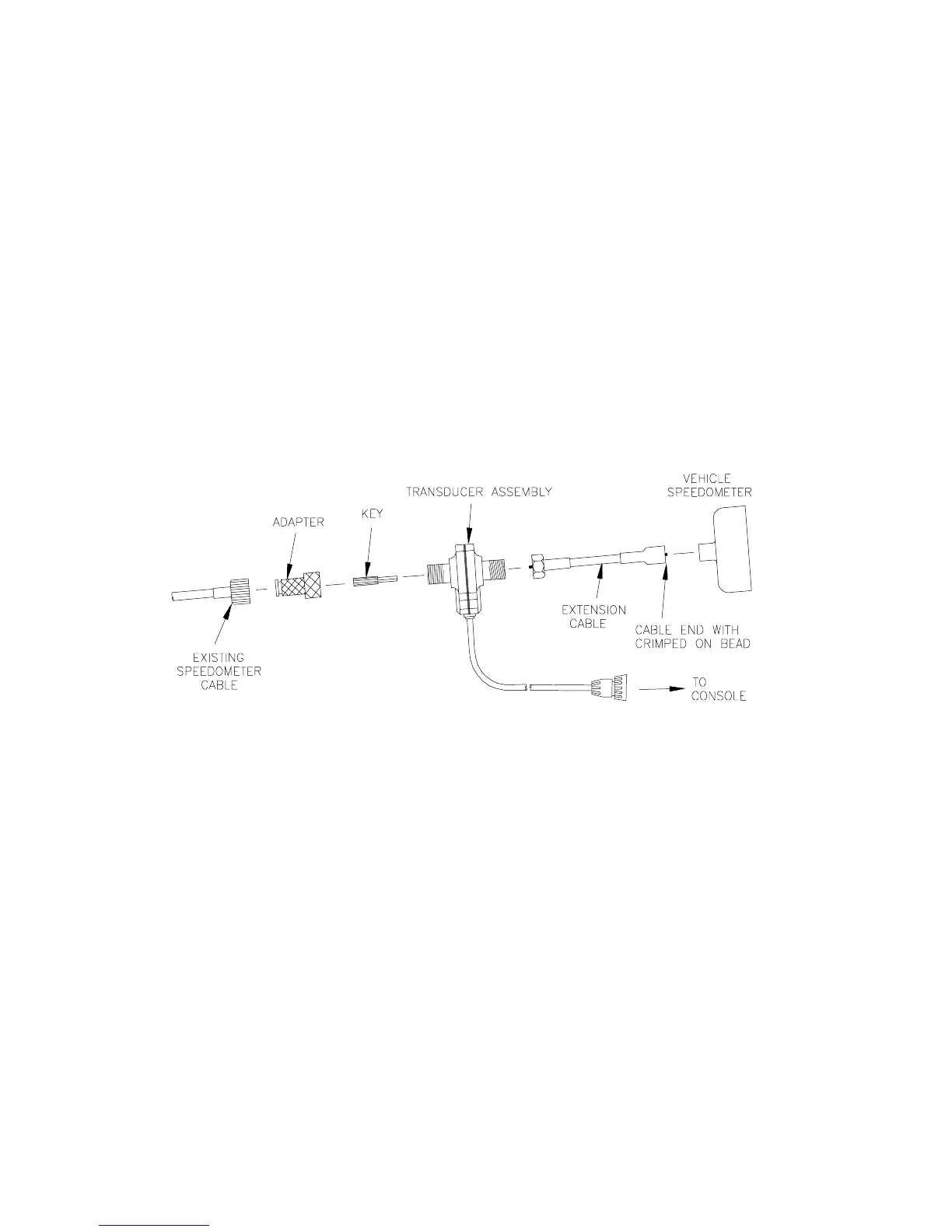

1. MOUNTING THE SPEEDOMETER DRIVE SPEED SENSOR
1) Remove the existing speedometer cable from the back of the vehicle speedometer.
Pull cable through fire wall into engine compartment.
2) Install adapter and key on speedometer cable and connect to Transducer Assembly.
(Some units do not use adapter and key).
3) Connect Extension Cable to Transducer Assembly.
4) Push Extension Cable through fire wall and re-install on speedometer.
5) Connect the cable on the Transducer Assembly to the Console.
6) Secure all cables with plastic cable ties.
You are now ready to calibrate the Speedometer Drive Speed Sensor.
