42

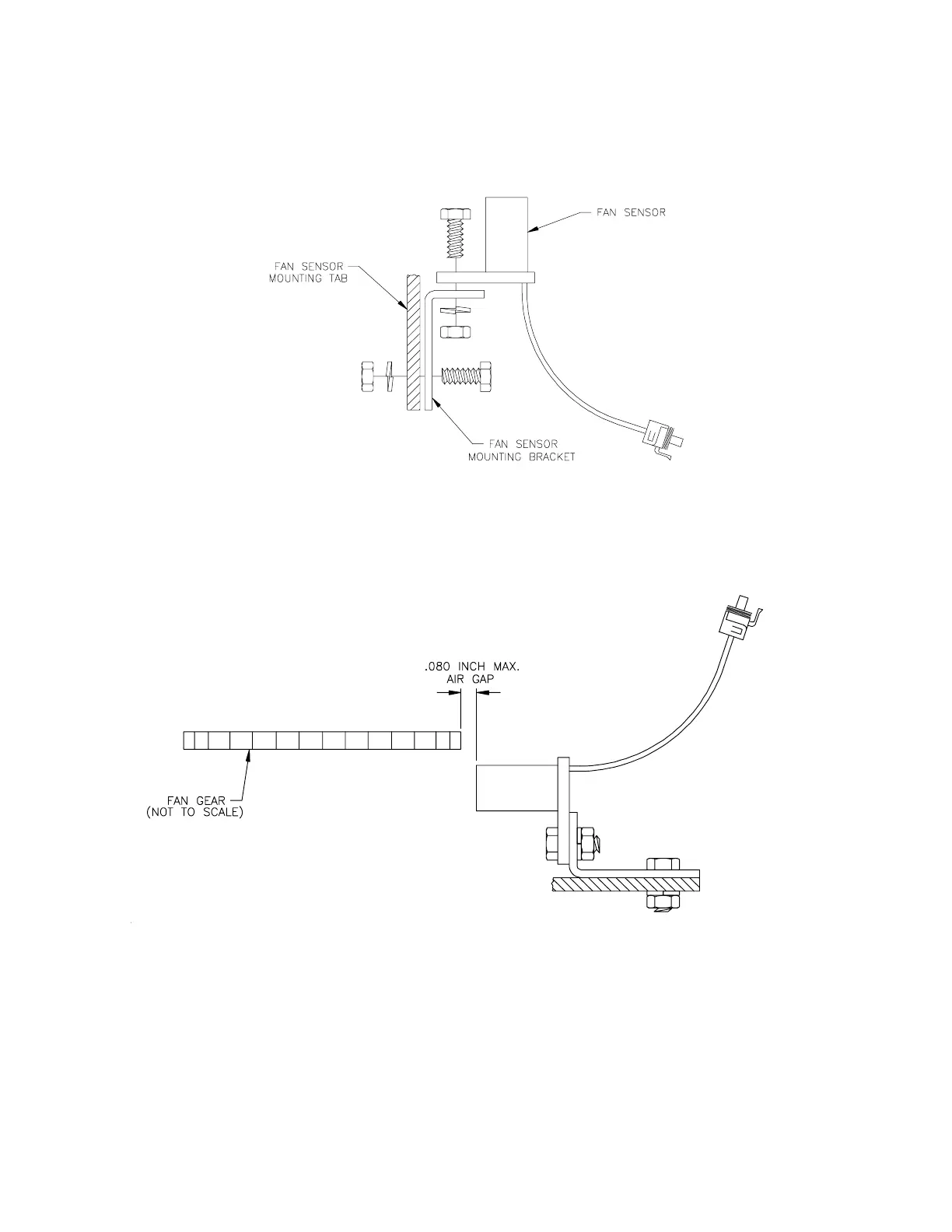

APPENDIX 7
F
AN RPM SENSOR INST
ALLA
TION
117-0159-575
Assemble Fan Sensor to fan sensor bracket with stainless steel bolt, lock washer, and
nut. Assemble fan sensor bracket to fan sensor mounting tab on box with stainless steel
bolt, lock washer, and nut. (See Figure above).
Adjust fan sensor air gap between .040 and .080 inch (.080 inch max.)
43
45
Table of Contents
Table of Contents
3
Symbol Definition
4
Introduction
5
Installation
6
Mounting the Raven Radar Speed Sensor
6
Mounting the Encoder
7
Mounting the Hydraulic Control Valve
8
Mounting the Console and Cabling
9
Battery Connections
10
Console Features
11
Console Calibration
12
Calculating "Boom Cal
12
Calculating "Speed Cal
12
Calculating "Spreader Constant
13
Calculating "Meter Cal
13
Calculating "Valve Cal
14
Calculating "Rate Cal
14
Console Programming
15
Initial Console Programming
16
Other Display Features
21
Self Test Feature
22
Volume/Minute Rate Fault
22
Volume/Area Rate Alarm
22
Low Tank Fault
22
Automatic Rate
23
Control Valve Delay
23
Sequence to Activate Data-Lock
23
10. Sequence to Change Data-Lock
23
11. Enter Mode Sequence with Activated Data-Lock
24
12. Data Menu
24
13. Decimal Shift
31
Initial System Set-Up
32
Initial System Field Test
32
Troubleshooting Guide
33
Appendixes
35
Procedure to Test Speed Sensor Extension Cables
35
Procedure to Test Encoder Cables
36
Fan Rpm Sensor Installation
37
Bin Level Sensor Installation
38
Verification of Spreader Constant
41
Wheel Drive Speed Sensor Installation
42
Speedometer Drive Speed Sensor Installation
45
Serial Interface
46
Scs 660 Communication Strings
47
