Chapter 3
14 John Deere 7X00/7X10 Series SmarTrax™ Installation Manual
Install Fittings in the SmarTrax Valve
Before mounting the SmarTrax valve (P/N 334-0003-088) on the machine, install the proper fittings in the
valve. This prepares the valve for installation and simplifies the hose connection process later in the procedure.

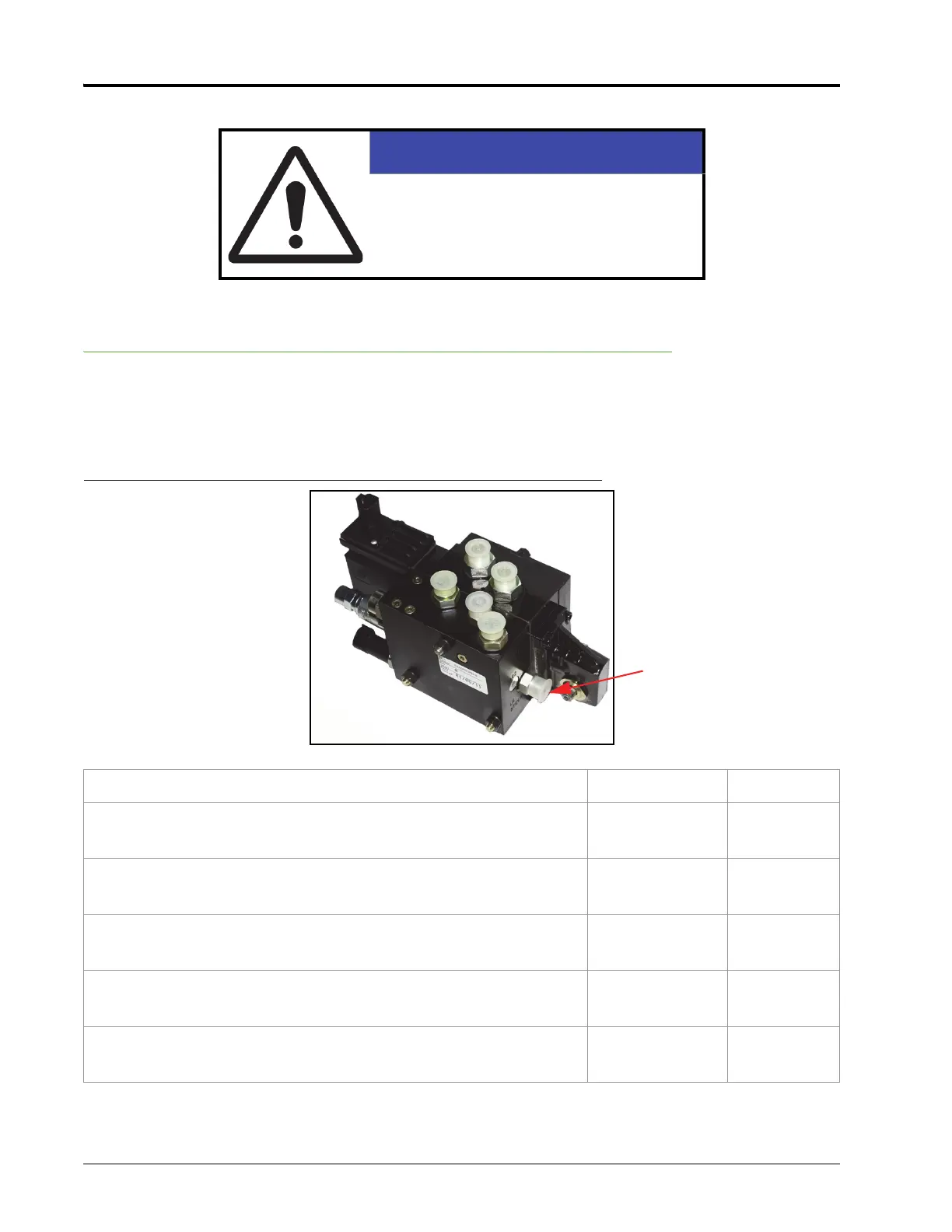

FIGURE 1. Fittings Installed in the SmarTrax Valve
NOTICE
The appearance of the SmarTrax hydraulic
valve may vary slightly from the images
contained in this manual. However, the fittings,
hose connections, and cable connections
remain the same.
Fitting Part Number Port
Fitting - -4 ORFS (M) to -6 SAE O-Ring (M) Straight Adapter 333-0012-195
LSPV,
LS STEER
Fitting - -4 ORFS M/F 90° Swivel Elbow 333-0012-023 LS STEER
Fitting - -6 ORFS (M) to -8 SAE O-Ring (M) Straight Adapter 333-0012-199 P, T
Fitting - -6 ORFS (M) to -10 SAE O-Ring (M) Straight Adapter 333-0012-233 A, B
Transducer - 0-3000 PSI Pressure 422-0000-086 PS
Install 90° Swivel Elbow
(P/N 333-0012-023) on
This Fitting
To Next Page
