CHAPTER
4
Manual No. 016-5034-004 25
C hapter 4 Wheel Angle Sensor
Installation
Mechanical Front Wheel Drive (MFWD)
Machines
Assemble the Wheel Angle Sensor (WAS)

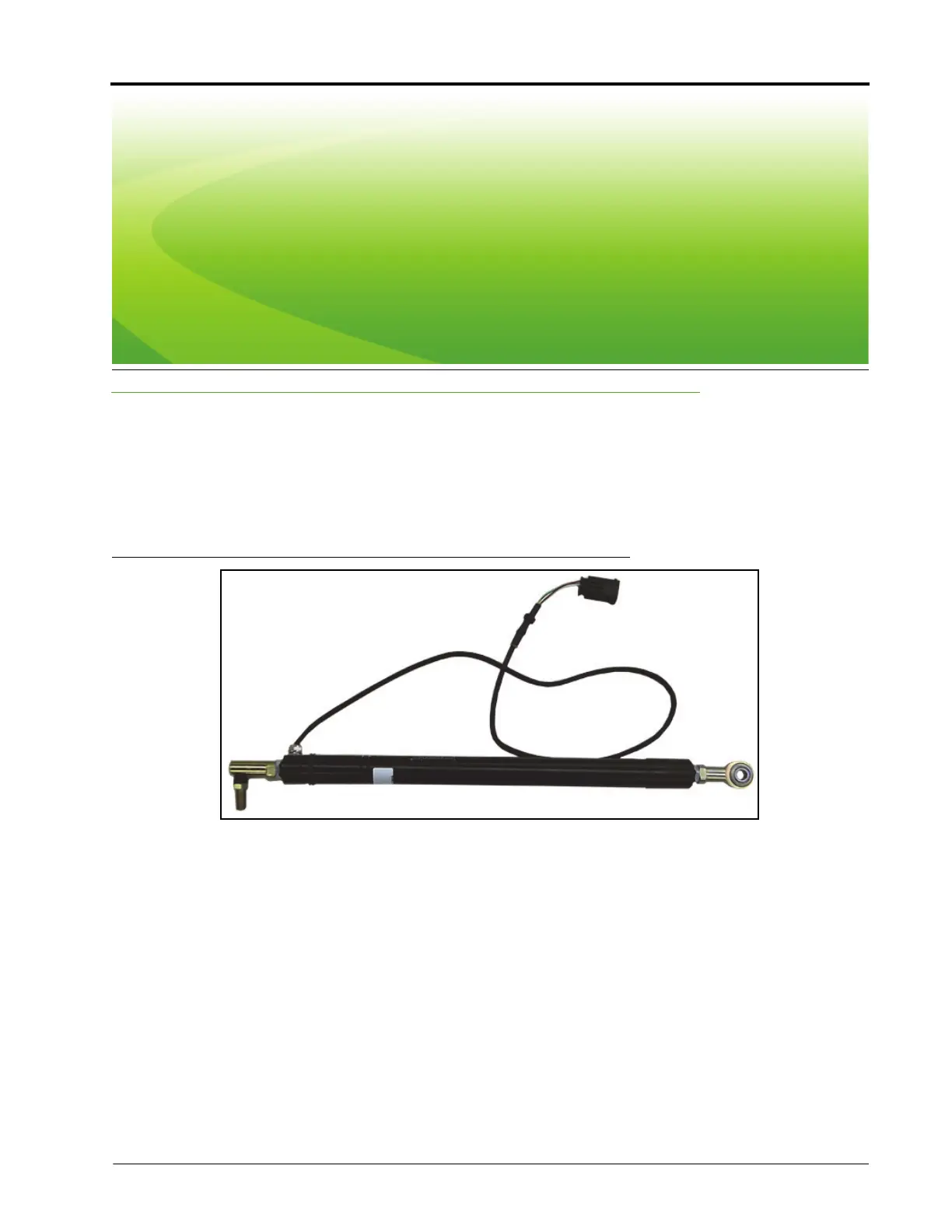

FIGURE 1. WAS Assembly
1. Install the M10 stud linear sensor mount (P/N 103-0001-030) and M10 jam nut (P/N 312-1002-035) on the
base-end (where the cable is connected) of the 250 mm non-contact linear wheel angle sensor (WAS) (P/N
063-0181-017).
2. Install the M10 ball linear sensor mount (P/N 103-0001-029) on the rod-end of the WAS using the remaining
M10 jam nut.
