Chapter 4
26 John Deere 7X00/7X10 Series SmarTrax™ Installation Manual
Mount the WAS

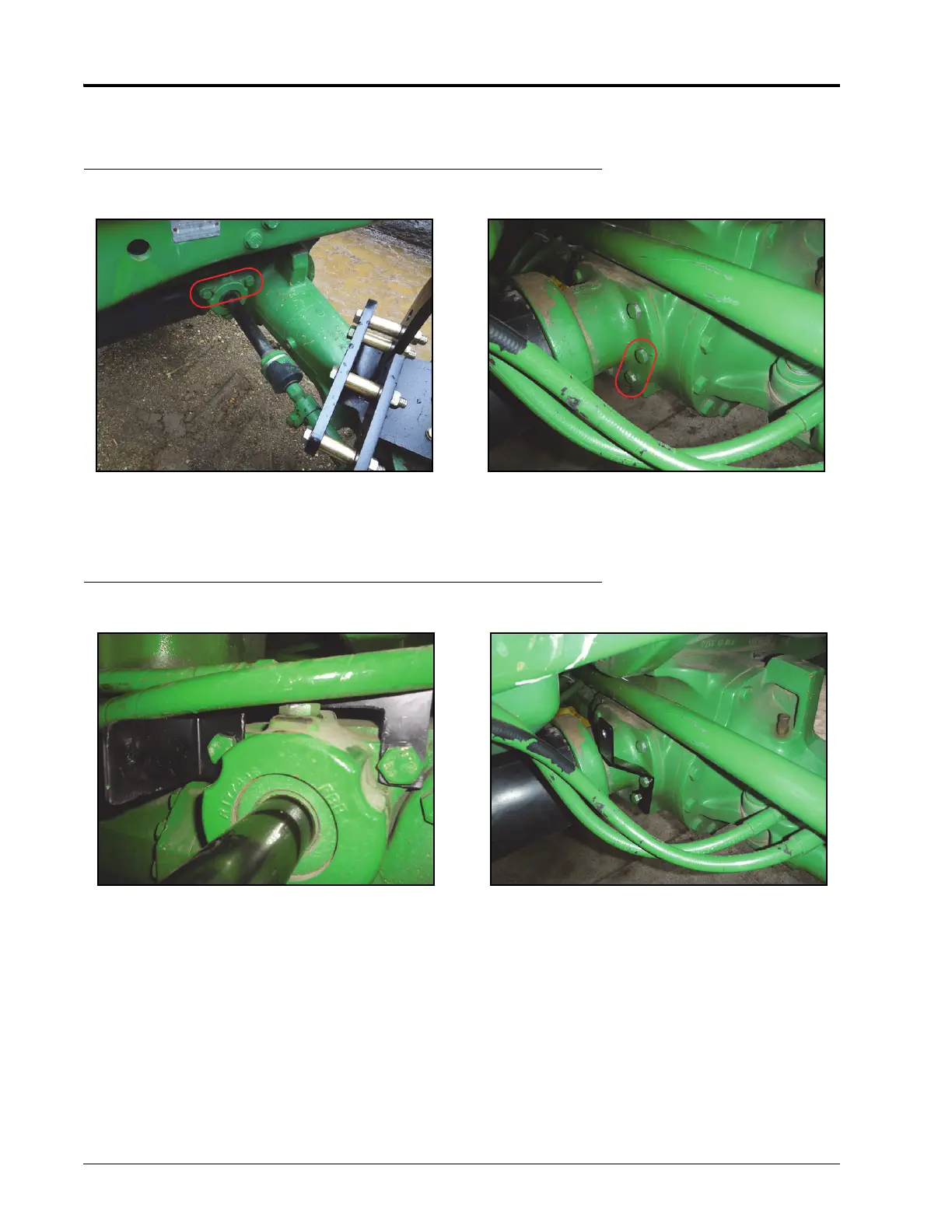

FIGURE 2. Bolts Removed
1. Turn the machine’s wheels to the left to access the right front wheel axle.
2. Remove the appropriate bolts, depending on the machine’s configuration.
FIGURE 3. Base Mounting Bracket Installed
3. Align the base mounting bracket (P/N 107-0172-041 for single steering cylinder models, P/N 107-0172-028
for dual steering cylinder models) over the holes and replace the bolts.
3-Bolt Triangular Configuration
(Single Steering Cylinder Models)
Quill Configuration
(Dual Steering Cylinder Models)
3-Bolt Triangular Configuration
(Single Steering Cylinder Models)
Quill Configuration
(Dual Steering Cylinder Models)
