Chapter 5
42 John Deere 7X00/7X10 Series SmarTrax™ Installation Manual
•
Securely fasten the node using bolts or screws through at least two of the three mounting holes. When
mounted properly, the node should not become loose or rotate.
Install the Foot Switch

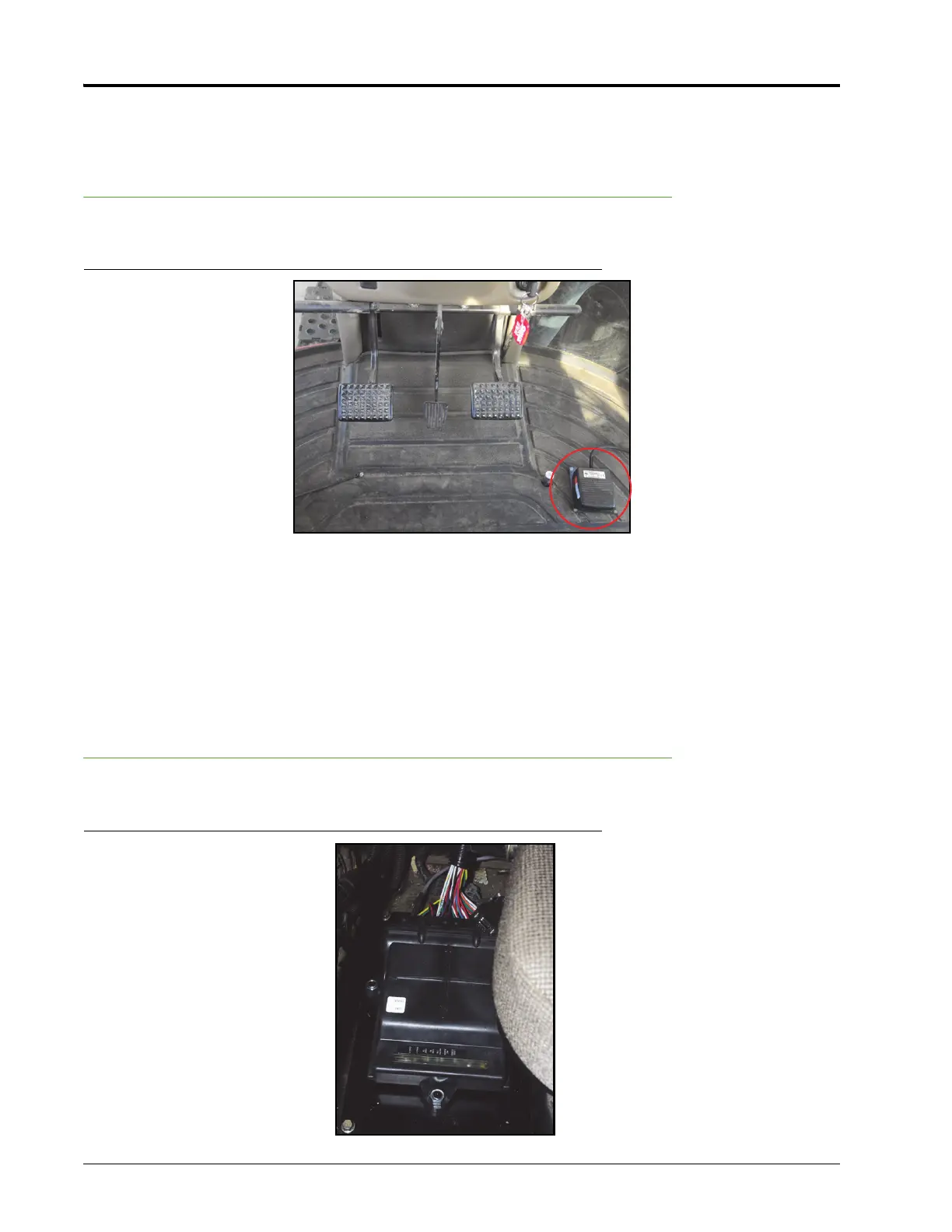

FIGURE 6. Foot Switch Installed
1. Select a suitable location for the foot switch (P/N 063-0172-470) to be installed.
Note: The foot switch should be installed in a location where the operator has easy access to it and is
able to fully press the pedal.
2. Using the holes in the foot switch as a template, drill holes in the floor of the cab.
3. Secure the foot switch to the floor by installing the supplied screws in each of the mounting holes.
Install the Node Harness
FIGURE 7. Node Harness Installed
