5
Manual No. 016-5034-004 43
Cab Component Installation
1. Install the two large, rectangular connectors of the node harness (P/N 115-4001-109) into the correct ports
of the node.
2. Tighten the bolts on the harness connectors to secure the connections.
3. Locate the ENABLE connector and connect it to the foot switch cable connector.
Install the Valve Harness

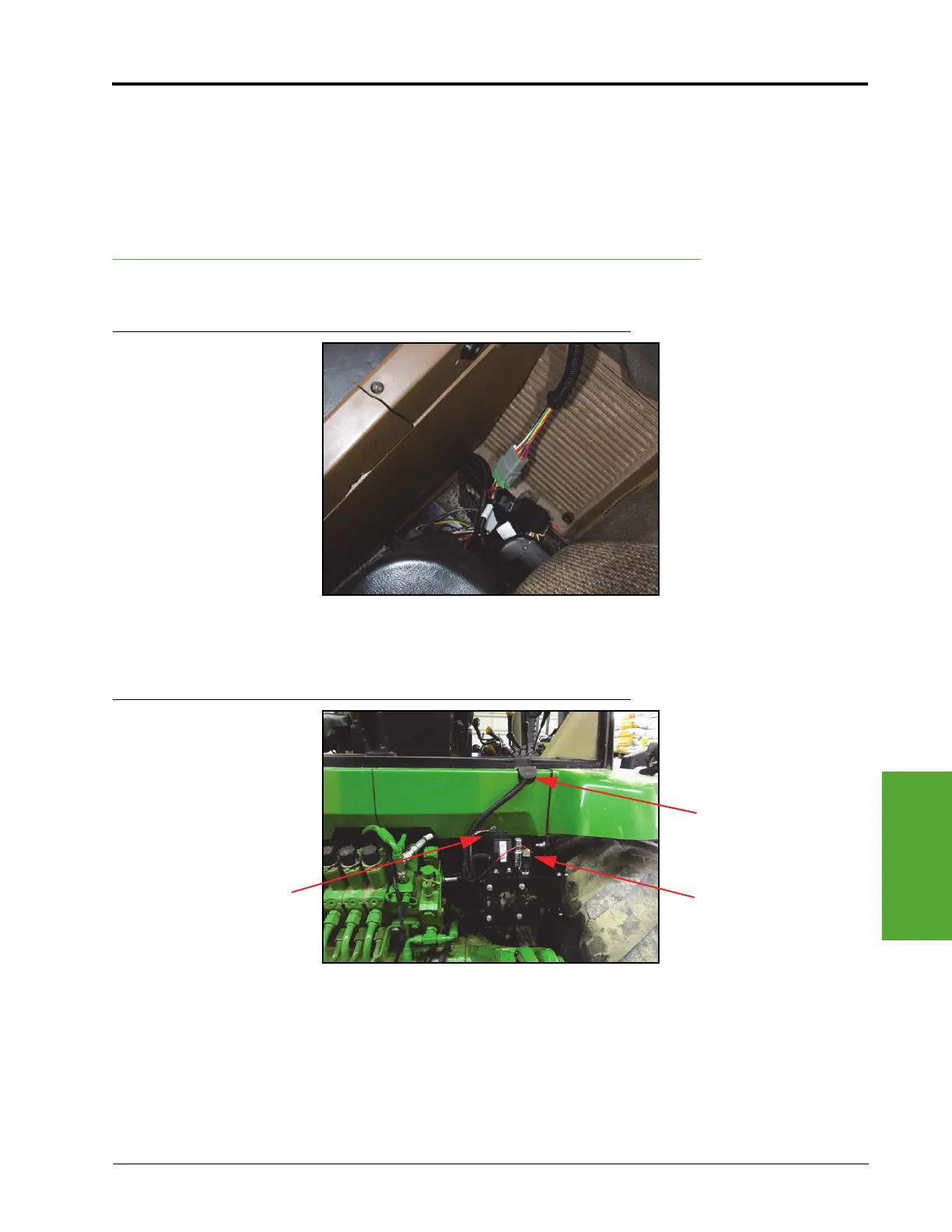

FIGURE 8. Valve Harness Connected to Node Harness
1. Connect the CHASSIS connector of the valve harness (P/N 115-4001-093) to the green mating connector
of the node harness (P/N 115-4001-109).
FIGURE 9. Valve Harness Routed Outside the Cab
2. Route the valve harness through the opening in the right-rear window of the cab.
3. Connect the TRANSDUCER connector to the pressure transducer (P/N 422-0000-086) installed in Port PS
of the SmarTrax valve (P/N 334-0003-088).
4. Connect the VALVE connector to the open PVE port of the SmarTrax valve.
VALVE
Connection
TRANSDUCER
Connection
Valve Harness
Routed Outside
the Cab
To Next Page
