Hydraulic System Installation
1. Locate the machine’s left steering hose connected to the left bulkhead fitting, located under the tractor and
midway along the machine’s frame.
Note: If the bulkhead fittings are not present, locate the left and right connections under the cab floor.
2. Disconnect the left steering hose from the left bulkhead fitting.

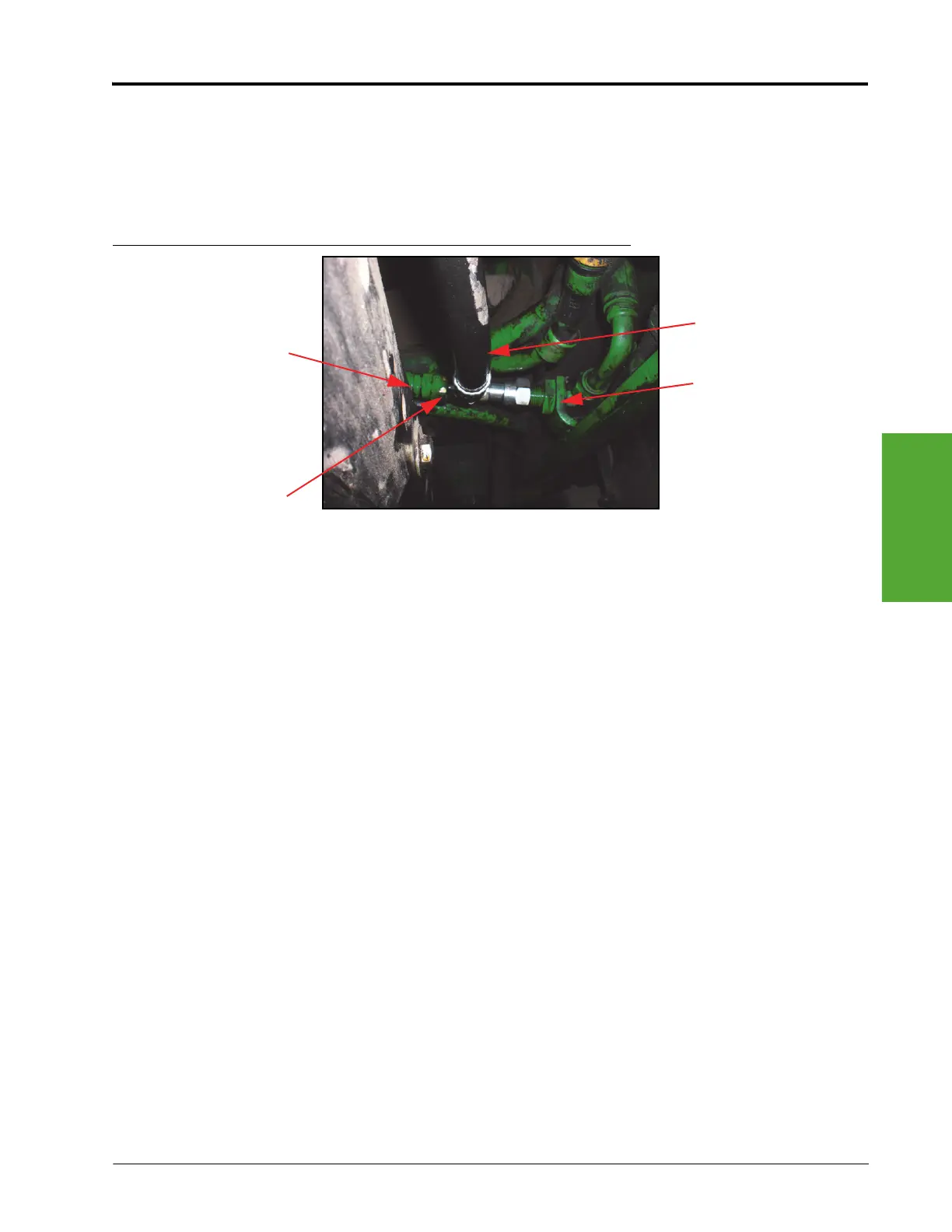

FIGURE 6. Pressure Hose Installed on Bulkhead Fitting
3. Install a -8 ORFS M/M/F swivel run tee adapter fitting (P/N 333-0012-028) on the bulkhead fitting.
4. Connect the machine’s left steering hose to the opposite end of the installed tee fitting.
5. Install the straight end of the supplied hydraulic hose (P/N 214-1000-759) on the 90° end of the installed tee
fitting.
Note: It may be necessary to install a -8 ORFS M/F 90° swivel elbow fitting (P/N 333-0012-067) on the
bulkhead fitting to achieve the connection and to route the hose to the rear of the machine.
6. Label the 90° end of the installed hydraulic hose with an “A.”
Note: The installed hydraulic hose will be connected to the SmarTrax valve (P/N 334-0003-088) later in
the installation procedure.
7. Disconnect the machine’s right steering hose from the right bulkhead fitting.
8. Install a -8 ORFS M/M/F swivel run tee adapter fitting (P/N 333-0012-028) on the bulkhead fitting.
9. Connect the machine’s right steering hose to the opposite end of the installed tee fitting.
10. Install the straight end of the supplied hydraulic hose (P/N 214-1000-759) on the 90° end of the installed tee
fitting.
Note: It may be necessary to install a -8 ORFS M/F 90° swivel elbow fitting (P/N 333-0012-067) on the
bulkhead fitting to achieve the connection and to route the hose to the rear of the machine.
11. Label the 90° end of the installed hydraulic hose with a “B.”
Note: The installed hydraulic hose will be connected to the SmarTrax valve later in the installation
procedure.
12. Route the installed hydraulic hoses to the installed universal bracket (P/N 107-0171-578) mounting location.
Installed Hose
(P/N 214-1000-759)
Bulkhead Fitting
Installed Tee
Adapter Fitting
(P/N 333-00012-028)
Machine’s Pressure
Hose
