Chapter 3
20 John Deere 7X00/7X10 Series SmarTrax™ Installation Manual

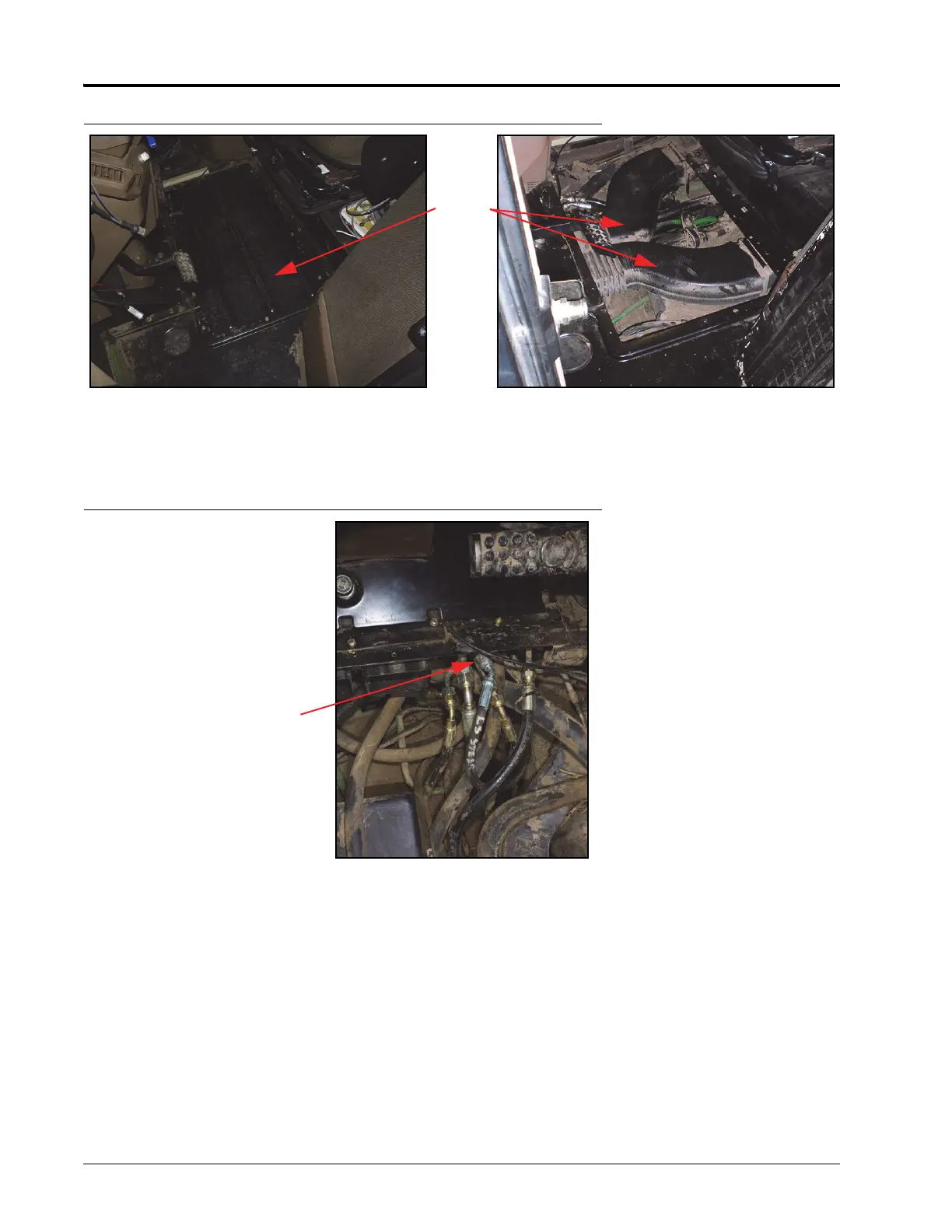

FIGURE 9. Cab Floor Plate and Air Ducts
1. Remove the cab floor plate and air ducts.
Note: The air ducts are secured with two bolts per duct.
FIGURE 10. Load Sense Hose Installed
2. Locate and disconnect the machine’s load sense hose from the load sense connection under the cab floor.
3. Install the 45° end of the supplied hydraulic hose (P/N 214-1000-762) on the open load sense port.
4. Label the straight end of the installed hydraulic hose “LS STEER.”
Note: The installed hydraulic hose will be connected to the SmarTrax valve (P/N 334-0003-088) later in
the installation procedure.
Machine’s Load
Sense Hose
Connection
To Next Page
