CHAPTER
3
P/N 016-4001-133 Rev. B 11
CHAPTER 3
STEERABLE HITCH
COMPONENT INSTALLATION
INSTALL THE HYDRAULIC SYSTEM

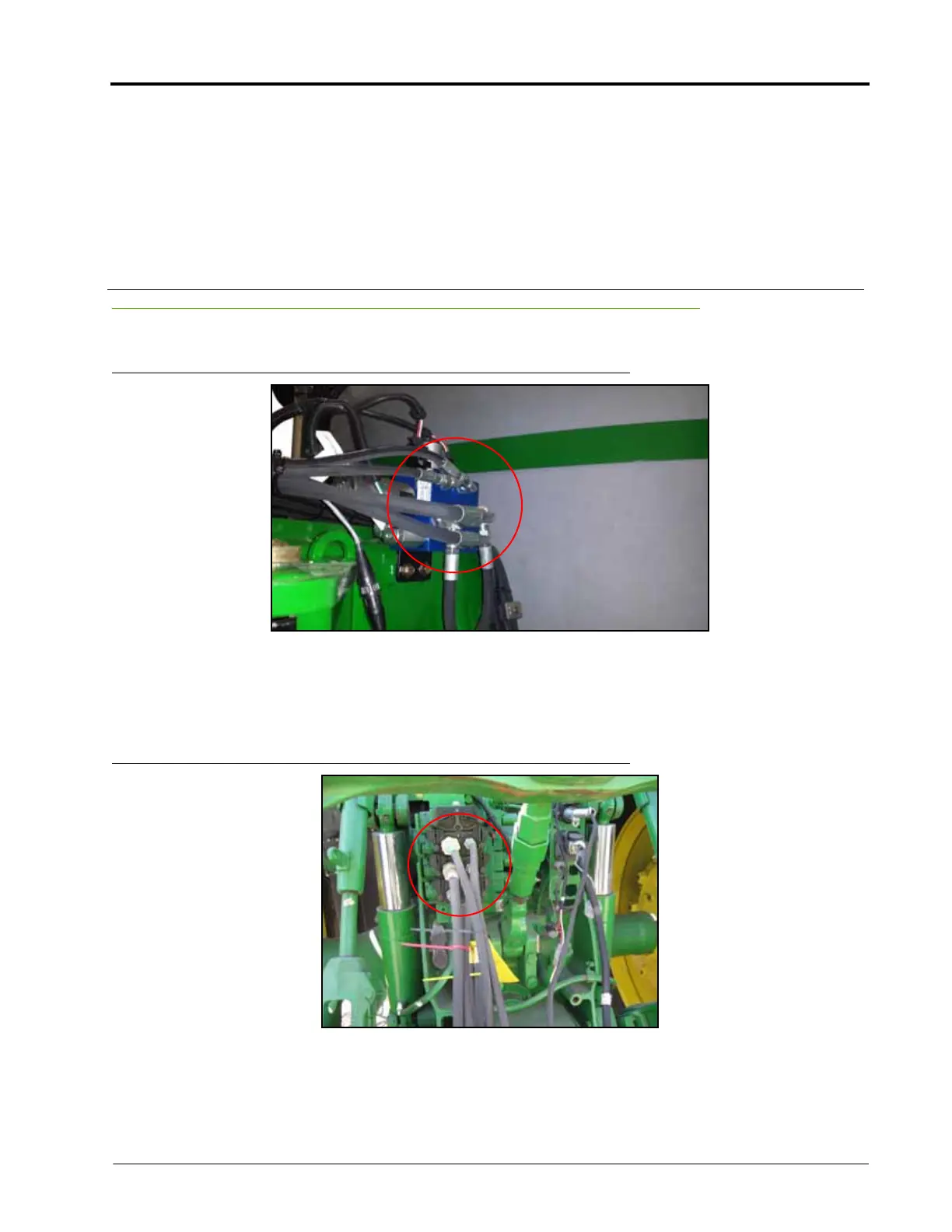

FIGURE 1. Hydraulic Valve Installed
1. Install the hydraulic valve mounting bracket to the Steerable Hitch tongue using the supplied hardware.
2. Mount the Steerable Hitch hydraulic valve (P/N 063-0131-130) on the valve mounting bracket using the
supplied hardware.
FIGURE 2. Machine’s Selective Control Valve
3. Install a hydraulic hose in the pressure port of the machine’s selective control valve.
4. Route a new pressure hose from the machine’s selective control valve and connect it to Port P of the Steerable
Hitch valve.
5. Install a hydraulic hose in the tank port of the machine’s selective control valve.
To Next Page
