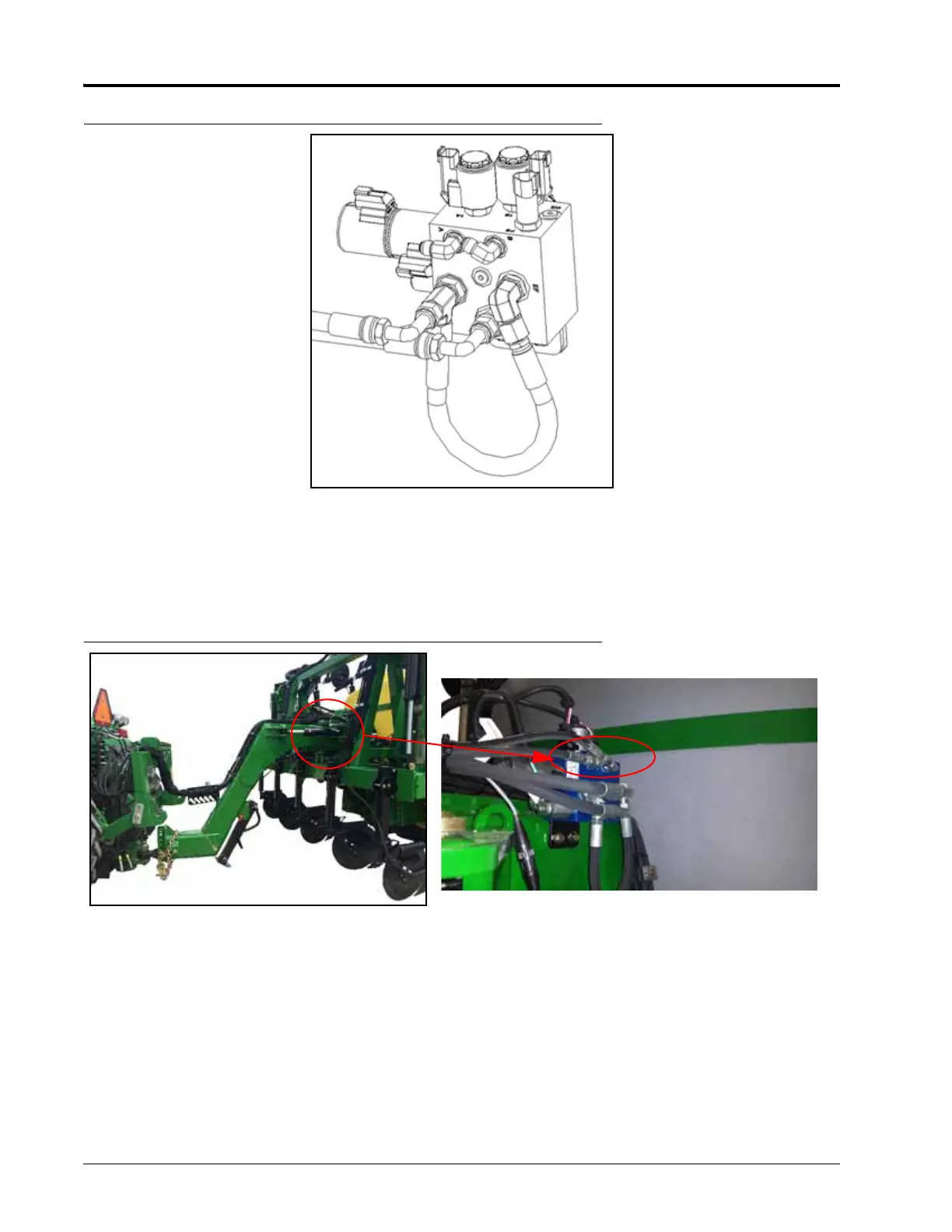

FIGURE 3. Tank Hose Installed
6. Install a tee fitting in Port T of the Steerable Hitch valve.
7. Connect the new tank hose to one end of the installed tee fitting.
8. Install a hydraulic hose on the remaining end of the tee fitting.
9. Connect the other end of the installed hydraulic hose to Port EF of the Steerable Hitch valve.
FIGURE 4. Left and Right Steering Hoses Installed
10. Install a 9/16” JIC tee fitting in the base-end of each hitch cylinder.
11. Install a hydraulic hose on the base-end of the machine’s left hitch cylinder.
12. Connect the other end of the installed hydraulic hose to Port B of the Steerable Hitch valve.
13. Install a hydraulic hose on the remaining end of the tee fitting at the base-end of the machine’s left hitch
cylinder.
14. Connect the other end of the installed hydraulic hose to the rod-end of the machine’s right hitch cylinder.
15. Install a hydraulic hose on the base-end of the machine’s right hitch cylinder.
16. Connect the other end of the hose to Port A of the Steerable Hitch valve.
