STEERABLE HITCH COMPONENT INSTALLATION
17. Install a hydraulic hose on the remaining end of the tee fitting at the base-end of the machine’s right hitch
cylinder.
18. Connect the other end of the hose to the rod-end of the machine’s left hitch cylinder.

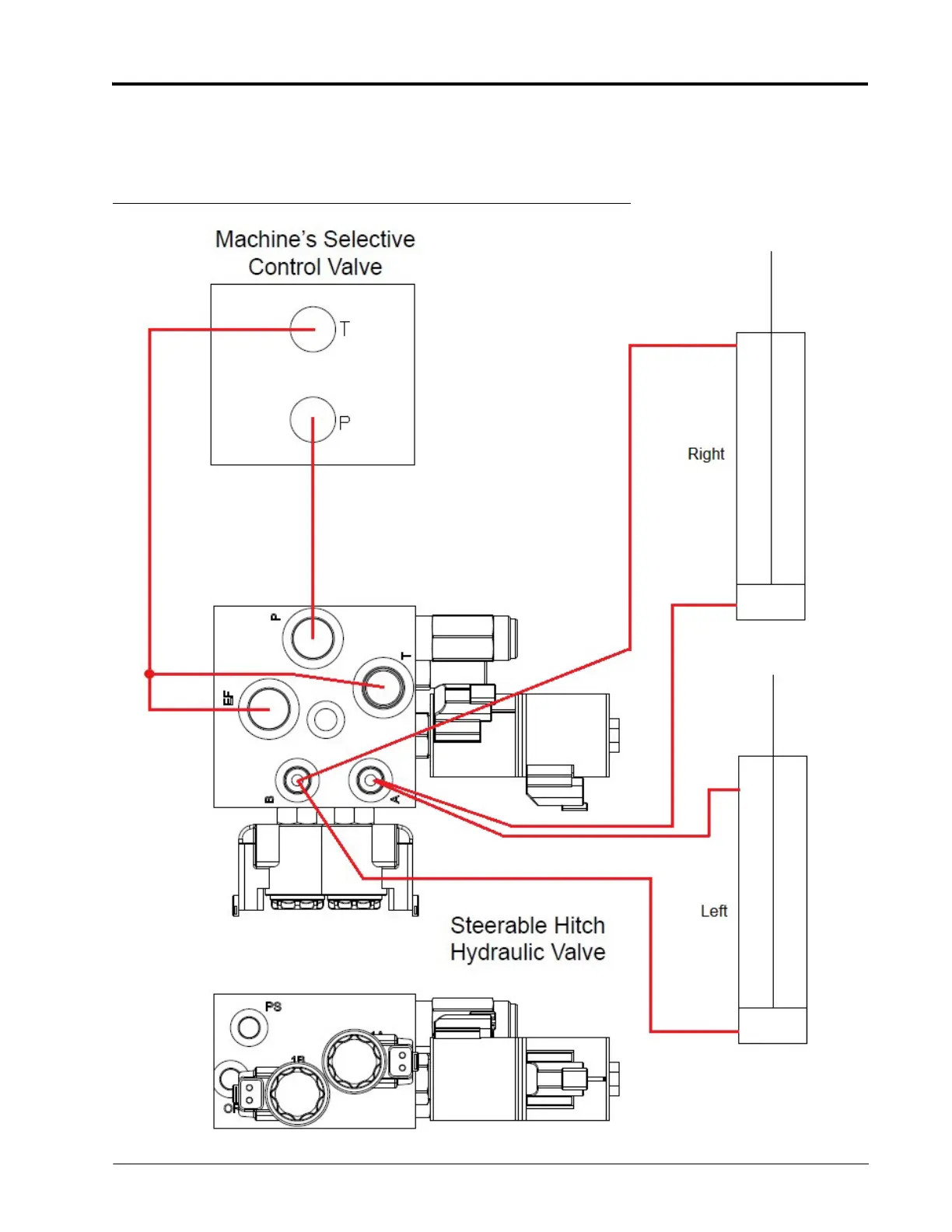

FIGURE 5. Hydraulic Schematic
