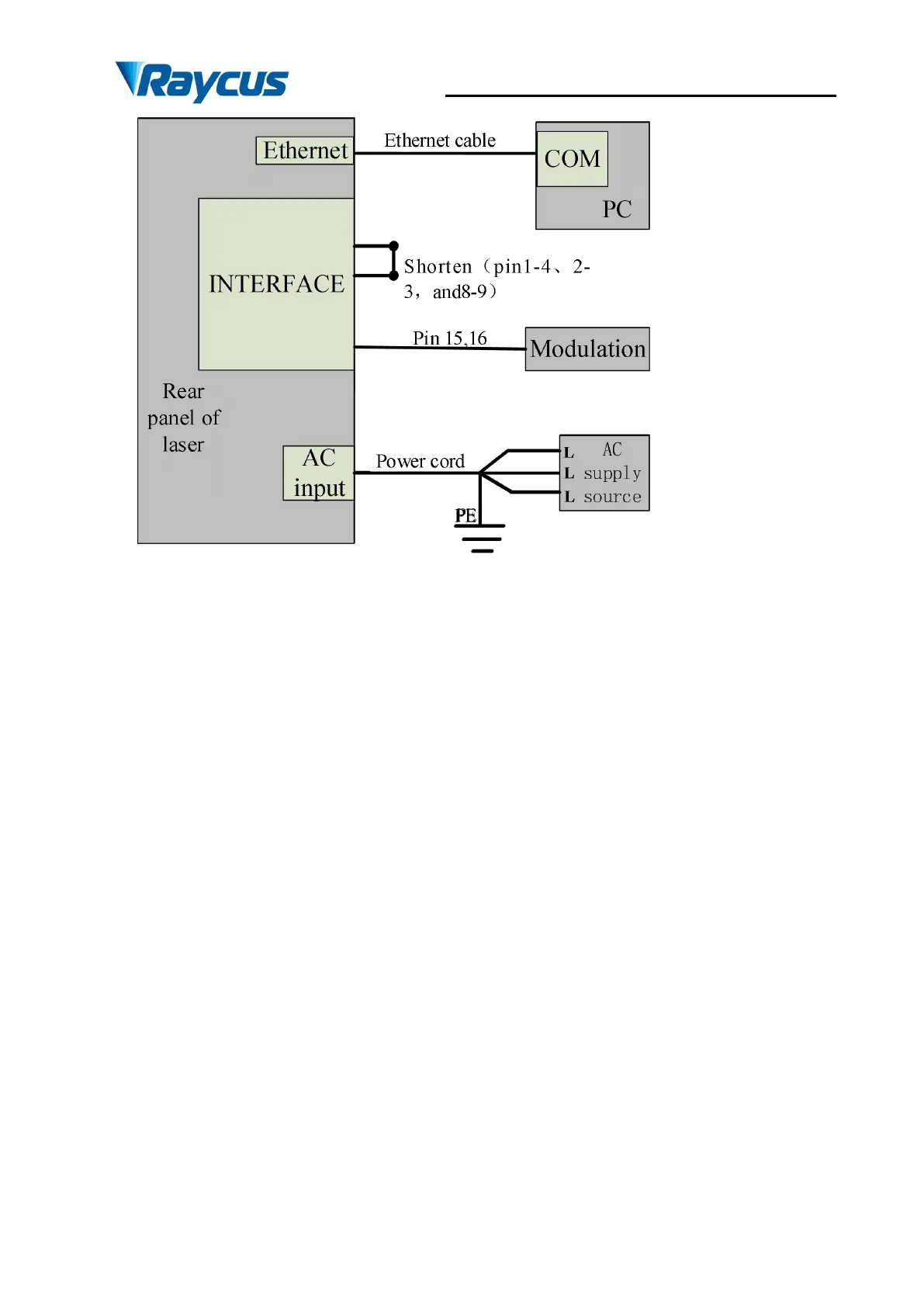

Figure 20 Wiring diagram of internal power control and external signal control
Operation method:
a) Shortconnect the 8 and 9 pins on the INTERFACE 24 pins (the control board is
powered on);
b) Open the laser clientware;
c) Click “the guide laser ON” button to view the guide laser;
d) Disabling the AD mode and the external envelopes
。
e) Waiting “Ready”;
f) Setting laser power parameters;
g) When the duty cycle of the internal output frequency of the laser is set, set the output
frequency/duty cycle/pulse width; (the output light is determined by the modulation
signal of pin 15.16 and the output frequency and duty cycle set by the upper computer
