software); the internal output frequency of the laser is not required When the duty cycle
is used, the default setting parameters are that the frequency is 100Hz and the duty cycle
is 100%.
h) Modulation signal (15, and 16-pin) provide a high level to turn on the laser.
4.8.2.3 Power communication setting parameters in the external control mode, external
modulation, external envelopes

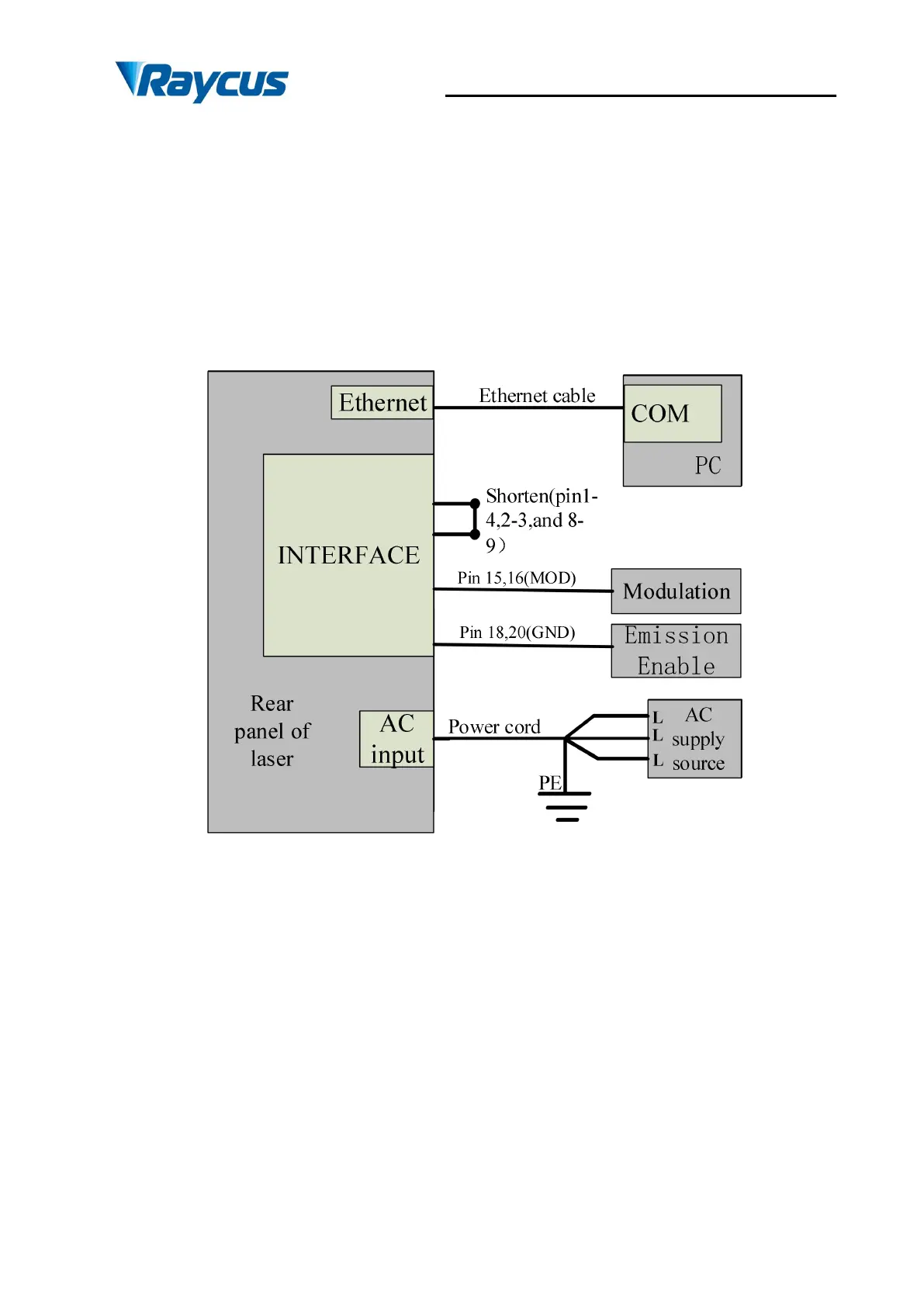

Figure 21 In the external control mode, the power internal control, out -of -light external control,
and the external enable wiring chart
Operation method:
a) Shortconnect the 8 and 9 pins on the INTERFACE 24 pins (the control board is powered
on);
b) Open the laser clientware;
c) Click “the guide laser ON” button to view the guide laser;
d) Turn off the AD mode, and opening external enable mode
、
external modulation mode;
e) Waiting “Ready”;
