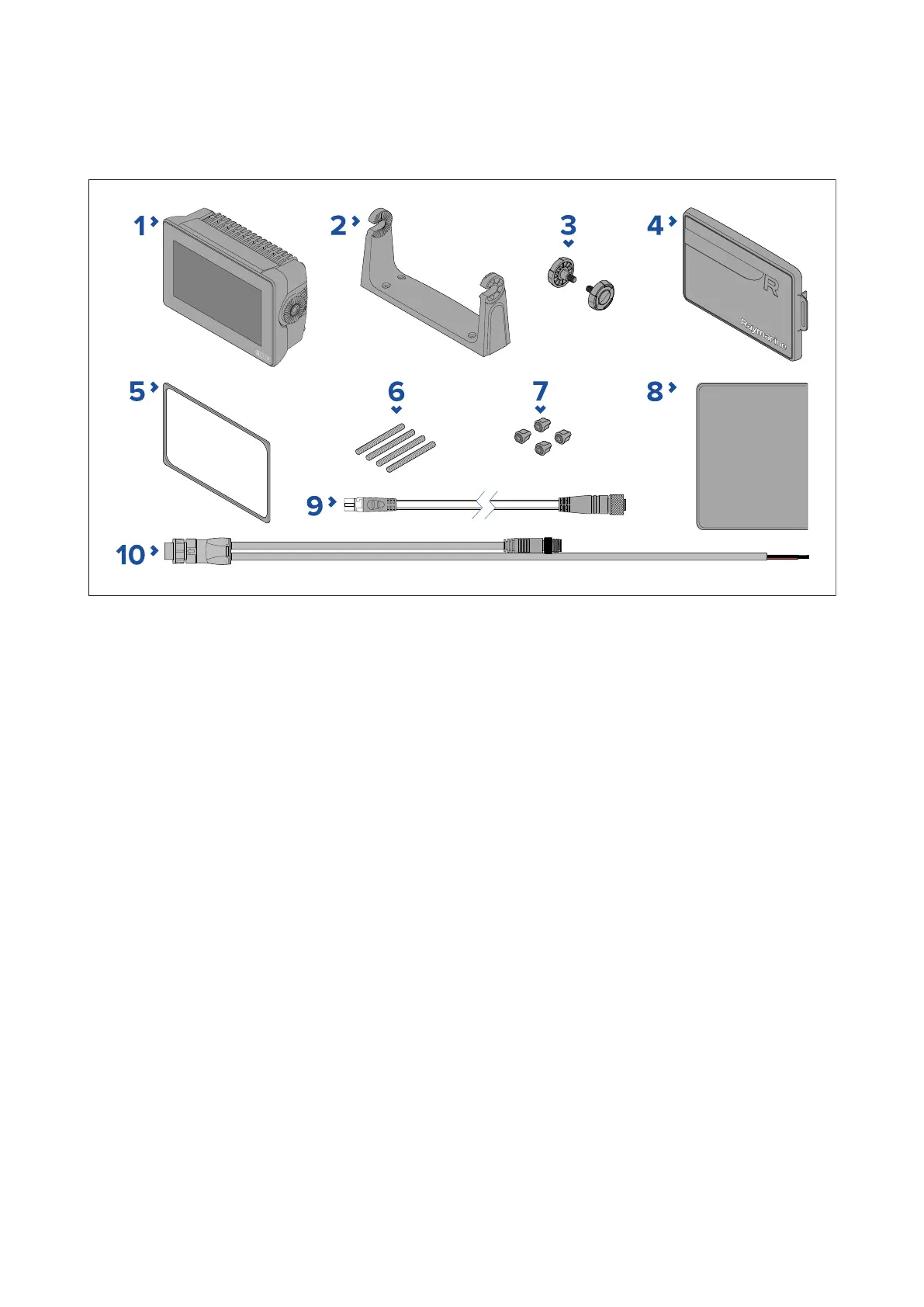

2.4P
artssupplied-Axiom™7+
Thepartslistedaresuppliedwiththefollowingproductnumbers:E70634andE70635.
Unpackyourproductcarefullytopreventdamageorlossofparts.Checktheboxcontentsagainst
thelistbelow.Retainthepackaginganddocumentationforfuturereference.
1.MFD(suppliedwithT runnionadaptorfitted)
2.Trunnionbracket
3.Trunnionknobsx2
4.Suncover—Trunnionmount
5.Panelmountgasketforsurface/flushmounting
6.M5x58Threadedstudsx4
7.M5Thumbnutsx4
8.Documentationpack
9.DeviceNettoSeaTalkng®adaptorcable120mm(4.7in)
10.Power/NMEA2000cable(with1.5m(4.92ft)powerleadand0.5m(1.64ft)NMEA2000lead).
E70635–03isalsosuppliedwithaRealVision™3DRV-100transducerandassociatedfittings.
2.5PartsSupplied-Axiom™7+(DISP)
Thepartslistedaresuppliedwiththefollowingproductnumbers:E70634–DISPandE70635–DISP.
Unpackyourproductcarefullytopreventdamageorlossofparts.Checktheboxcontentsagainst
thelistbelow.Retainthepackaginganddocumentationforfuturereference.
Documentandproductinformation
19

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Raymarine AXIOM+ Series and is the answer not in the manual?

Raymarine AXIOM+ Series Specifications

General IconGeneral
Display Sizes7", 9", 12", 16"
Display TypeIPS LCD
TouchscreenYes
Operating SystemLightHouse 3
Waterproof RatingIPX6/IPX7
RAM4 GB
Internal Storage16 GB
Radar SupportYes
ChartplotterYes
Brightness1500 nits
ProcessorQuad-core
ConnectivityWi-Fi, Bluetooth
GPSBuilt-in GPS/GLONASS
NetworkingNMEA 2000
SonarSupports CHIRP, RealVision 3D, SideScan, DownVision
Video InputYes
Operating Voltage12/24 V DC
Display Resolution7" - 1024 x 600 (WVGA); 9" - 1280 x 720 (HD); 12" - 1280 x 800 (WXGA); 16" - 1920 x 1080 (Full HD)
