Raymarine AXIOM+ Series User Manual

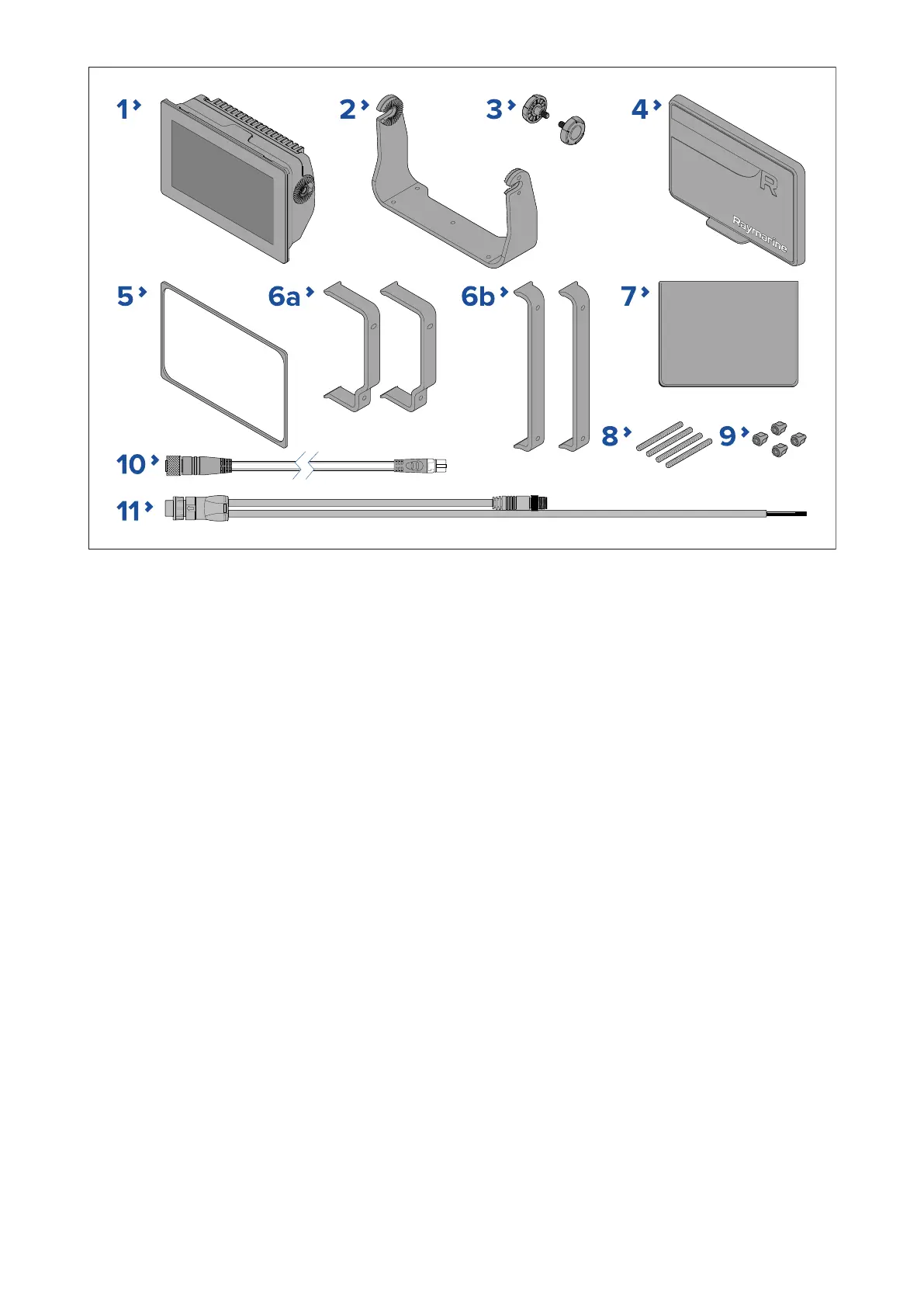

1.MFD
2.T runnionbracket
3.Trunnionknobsx2
4.Suncover
5.Panelmountgasketforsurface/flushmounting
6.Rearmountingbrackets:
a.suppliedwith9”MFD
b.suppliedwith12”MFD
7.Documentationpack
8.M5x58Threadedstudsx4
9.M5Thumbnutsx4
10.DeviceNettoSea Talkng®adaptorcable120mm(4.7in)
11.Power/NMEA2000cable(with1.5m(4.92ft)powerleadand0.5m(1.64ft)NMEA2000lead).
E70637–03isalsosuppliedwithaRealVision™3DRV-100transducerandassociatedfittings.
E70639–03isalsosuppliedwithaRealVision™3DRV-100transducerandassociatedfittings.
2.7Partssupplied-Axiom™9+(DISP)andAxiom™12+(DISP)
Thepartslistedaresuppliedwiththefollowingproductnumbers:E70636–DISP,E70637–DISP,
E70638–DISPandE70639–DISP.
Unpackyourproductcarefullytopreventdamageorlossofparts.Checktheboxcontentsagainst
thelistbelow.Retainthepackaginganddocumentationforfuturereference.
Documentandproductinformation
21

Raymarine AXIOM+ Series Specifications

General

Display Sizes	7", 9", 12", 16"
Display Type	IPS LCD
Touchscreen	Yes
Operating System	LightHouse 3
Waterproof Rating	IPX6/IPX7
RAM	4 GB
Internal Storage	16 GB
Radar Support	Yes
Chartplotter	Yes
Brightness	1500 nits
Processor	Quad-core
Connectivity	Wi-Fi, Bluetooth
GPS	Built-in GPS/GLONASS
Networking	NMEA 2000
Sonar	Supports CHIRP, RealVision 3D, SideScan, DownVision
Video Input	Yes
Operating Voltage	12/24 V DC
Display Resolution	7" - 1024 x 600 (WVGA); 9" - 1280 x 720 (HD); 12" - 1280 x 800 (WXGA); 16" - 1920 x 1080 (Full HD)
