Viewingproductinformation(LightHouse™3)

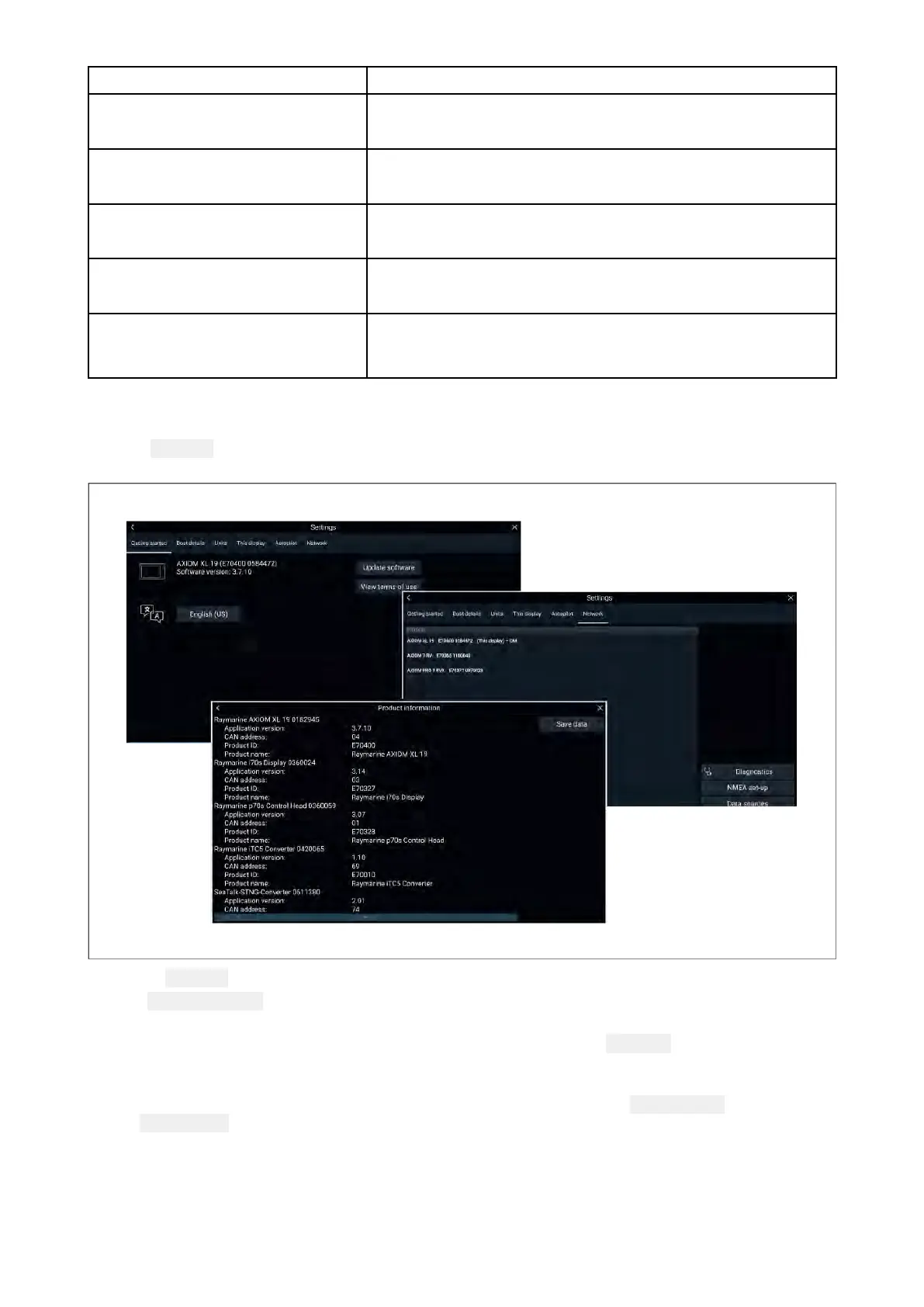

Usethe SettingsmenutoviewhardwareandsoftwareinformationaboutyourMFD,andconnected
products.
1.Select Settings,fromtheHomescreen.
TheGettingstartedmenucontainshardwareandsoftwareinformationforyourMFD.
2.Y oucanviewfurtherinformationaboutyourMFD,orviewinformationaboutproductsnetworked
usingSeaTalkhs®andSeaTalkng®/NMEA2000,byselectingthe
Networktab,then:
i.todisplaydetailedsoftwareinformationandyourMFD’snetworkIPaddress,selectyour
MFDfromthelist.
ii.todisplaydetaileddiagnosticsinformationforallproducts,select Productinfofromthe
Diagnosticspopovermenu.
T echnicalsupport
67

Raymarine AXIOM+ Series Specifications

General

Display Sizes	7", 9", 12", 16"
Display Type	IPS LCD
Touchscreen	Yes
Operating System	LightHouse 3
Waterproof Rating	IPX6/IPX7
RAM	4 GB
Internal Storage	16 GB
Radar Support	Yes
Chartplotter	Yes
Brightness	1500 nits
Processor	Quad-core
Connectivity	Wi-Fi, Bluetooth
GPS	Built-in GPS/GLONASS
Networking	NMEA 2000
Sonar	Supports CHIRP, RealVision 3D, SideScan, DownVision
Video Input	Yes
Operating Voltage	12/24 V DC
Display Resolution	7" - 1024 x 600 (WVGA); 9" - 1280 x 720 (HD); 12" - 1280 x 800 (WXGA); 16" - 1920 x 1080 (Full HD)
