Raymarine AXIOM+ Series User Manual

9

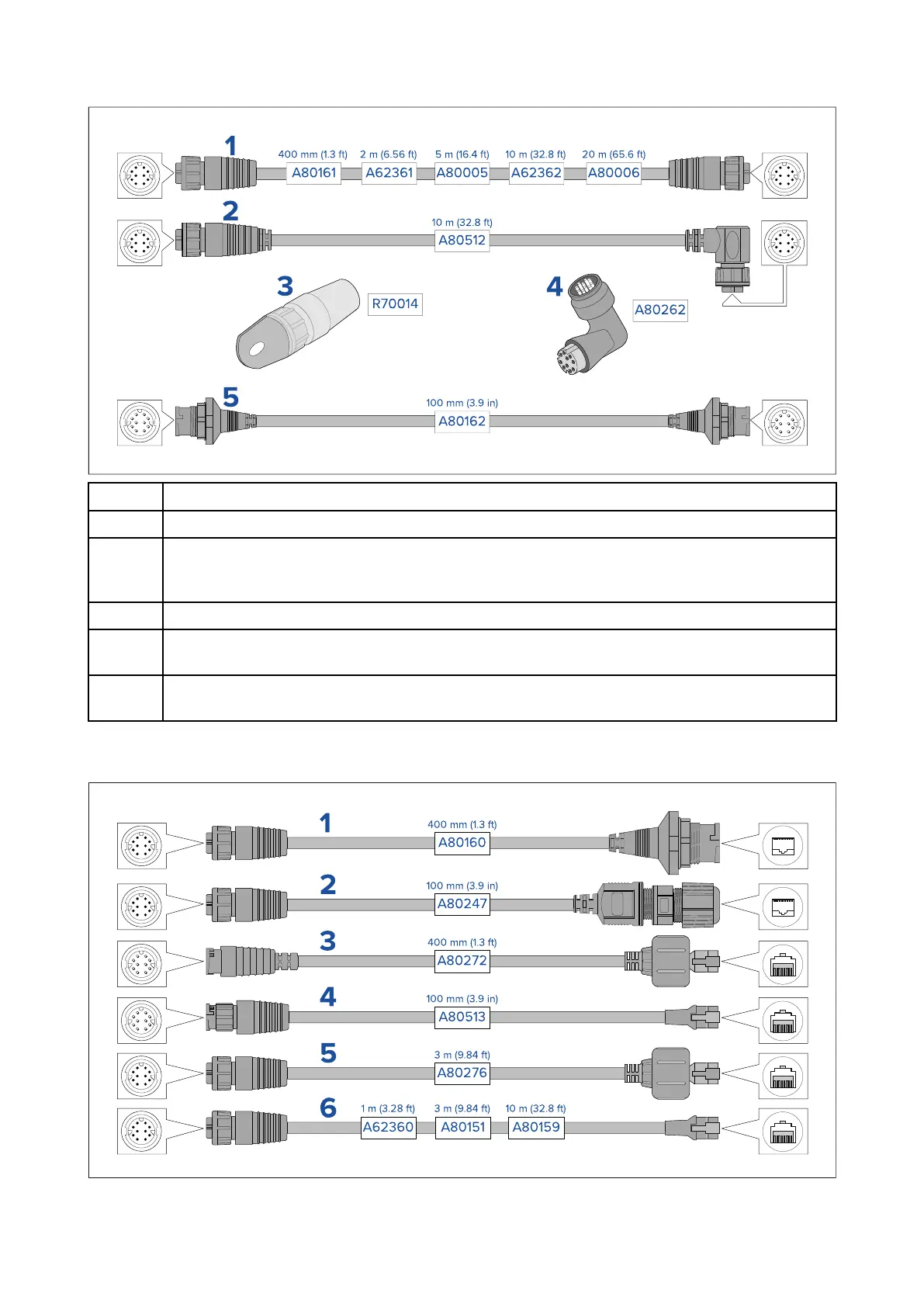

.3RayNettoRayNetcablesandconnectors
Description
1
S tandardRayNetconnectioncablewithaRayNet(female)socketonbothends.
2
Right-angleR ayNetconnectioncablewithastraightRayNet(female)socketononeend,
andaright-angleRayNet(female)socketontheotherend.Suitableforconnectingat90°
(rightangle)toadevice,forinstallationswherespaceislimited.
3
R ayNetcablepuller(5pack).
4
R ayNettoRayNetright-anglecoupler/adapter.SuitableforconnectingRayNetcablesat
90°(rightangle)todevices,forinstallationswherespaceislimited.
5
AdaptercablewithaR ayNet(male)plugonbothends.Suitableforjoining(female)
RayNetcablestogetherforlongercableruns.
R ayNettoRJ45adaptercables
76

Raymarine AXIOM+ Series Specifications

General

Display Sizes	7", 9", 12", 16"
Display Type	IPS LCD
Touchscreen	Yes
Operating System	LightHouse 3
Waterproof Rating	IPX6/IPX7
RAM	4 GB
Internal Storage	16 GB
Radar Support	Yes
Chartplotter	Yes
Brightness	1500 nits
Processor	Quad-core
Connectivity	Wi-Fi, Bluetooth
GPS	Built-in GPS/GLONASS
Networking	NMEA 2000
Sonar	Supports CHIRP, RealVision 3D, SideScan, DownVision
Video Input	Yes
Operating Voltage	12/24 V DC
Display Resolution	7" - 1024 x 600 (WVGA); 9" - 1280 x 720 (HD); 12" - 1280 x 800 (WXGA); 16" - 1920 x 1080 (Full HD)
