Raymarine Quantum User Manual

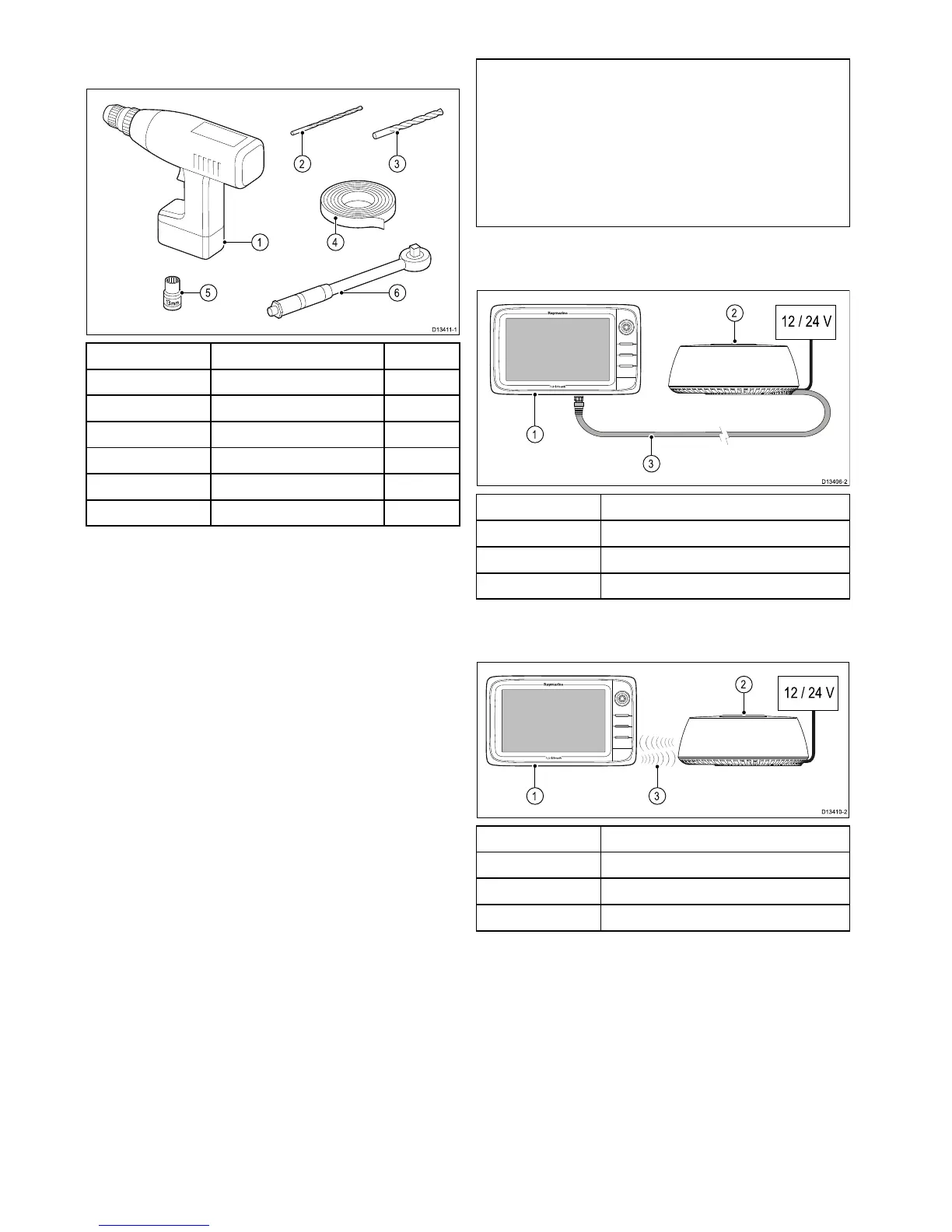

3.5Toolsrequired
Productinstallationrequiresthefollowingtools:
1
2 3
4
5 6
D1341 1-1
ItemnumberDescriptionQuantity
1Powerdrill1
23mmdrillbit1
310mmdrillbit1
4Adhesivetape1
5
13mmsocket1
6Torquewrench1
3.6Typicalsystems
Note:Thefollowingillustrationsshowthevarious
productsthatcanbeconnectedinatypicalsystem.
•Forinformationonhowtoconnecttheproducts,
refertotheChapter4Cablesandconnections
section.
•Forinformationonavailablecablesand
accessories,refertotheChapter10Sparesand
accessoriessection.
Example:basicRadarsystem(wireddata
connection)
1
2
3
12 / 24 V
D13406-2
ItemDescription
1
Multifunctiondisplay
2
Quantum™Radome
3RayNetdatacable
Example:basicRadarsystem(wirelessdata
connection)
1
2
3
12 / 24 V
D13410-2
ItemDescription
1
Multifunctiondisplay
2
Quantum™Radome
3Wi-Fidatalink
18
QuantumRadome

Raymarine Quantum Specifications

General

Radar Type	CHIRP Pulse Compression
Range	Up to 24 nautical miles
Antenna Size	18 inches
Power Consumption - Standby	7W
Beamwidth Horizontal	4.9°
Beamwidth Vertical	20°
Antenna Length	18 inches
Weight	5.6 kg (12.3 lbs)
Waterproof Rating	IPX6
Wireless Connectivity	Wi-Fi
Antenna Rotation Speed	24 RPM
Range Resolution	7.5 m
Target Tracking	MARPA (Mini Automatic Radar Plotting Aid)
Connectivity	Wi-Fi, Ethernet
Dimensions	210 mm x 180 mm
Compatibility	Raymarine MFDs
