appro
ximately0.5cmfurtherbacktowardsthecable-endofthe
connector.
Alwaysusethesuppliedtoolwhenattachingthesplitring.Thesplitring
maybecomeoverstretchedandbreakifyoutrytoattachitwithoutusing
thetool.Asparesplitringissuppliedwiththelockingcollarassembly,
incaseofbreakage.
4.SlidetheO-ring(arrowed)overtheendoftheconnector,andensure
thatitisseatedsquarelyagainsttheconnectormoulding,adjacentto
thesplit-ring.
5.Slidethelockingcollartowardstheplug-endoftheconnector,rotating
thecollarasnecessarytoensurethatthelugsonthelockingcollar
(labelled‘D’intheillustration)passthroughthechannels(labelled‘E’)
inthesplit-ring.
Thelockingcollarslideseasilytowardstheplug-endoftheconnector,
beforebuttingupagainstthesplit-ringmoulding.
6.Graspthebodyoftheconnectorwithonehand,thenwiththeotherhand,
pullthelockingcollarfirmlytowardstheplug-endoftheconnector.
Asyoupullthelockingcollar,itclicksintoplaceoverthesplit-ring.The
lockingcollarstaysinpositionontheconnector,butrotatesfreely.
5.5Makingconnections
Followthestepsbelowtoconnectthecable(s)toyourproduct.
1.Ensurethatthevessel'spowersupplyisswitchedoff.
2.Ensurethatthedevicebeingconnectedtotheunithasbeeninstalledin
accordancewiththeinstallationinstructionssuppliedwiththatdevice.
3.Ensuringcorrectorientation,pushthecableconnectorfullyontothe
correspondingconnectorontheunit.
4.Turnthelockingcollarclockwisetosecurethecable.
RealVision™3Dtransducerextensioncable
Forbestperformance,cablerunsshouldbekepttoaminimum.However,for
someinstallationsitmaybenecessarytoextendthetransducercable.
•RealVision™transducerextensioncable3m(9.8ft)(partnumberA80475)
•RealVision™transducerextensioncable5m(16.4ft)(partnumberA80476)
•RealVision™transducerextensioncable8m(26.2ft)(partnumberA80477)
5.6Mountingtheescutcheonplate
Y ourtransducerissuppliedwithanescutcheonplate.
Ifyouhavechosentoroutethetransducercablethroughthetransomor
throughabulkhead,youcanusethesuppliedescutcheonplatetocoverthe
holerequiredtoaccommodatethecable.Theplateisdesignedtofitovera
holeupto25mm(1inch)indiameter.

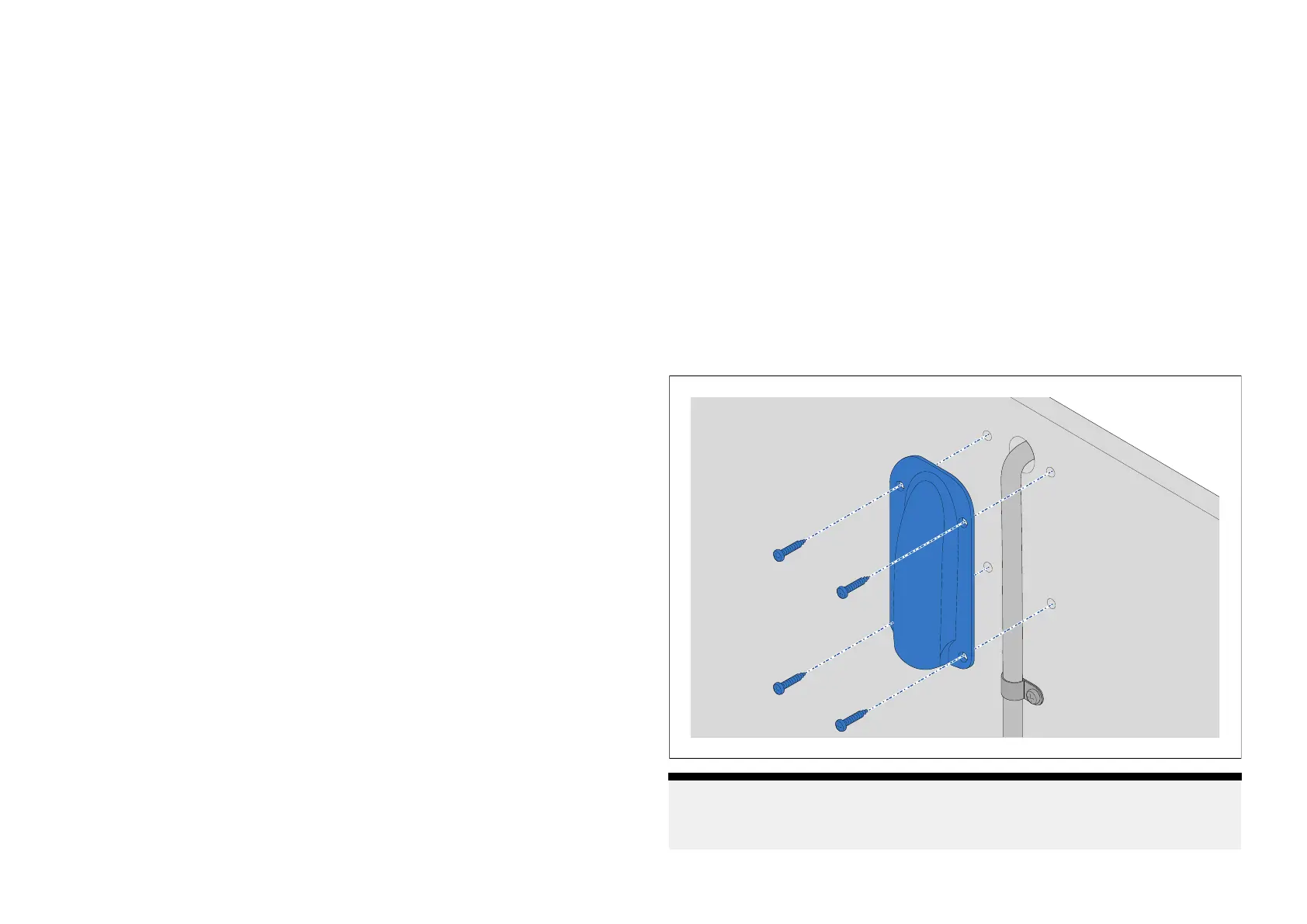

Afteryouhavethreadedthetransducercablethroughtheholeinthetransom
orbulkhead,attachtheescutcheonplateasshown,takingcarethatthecable
isnottrappedbetweentheescutcheonplateandthemountingsurface.
Note:
Toavoidpossibledamagetothetransducercable,useafiletoround-off
theedgesoftheholethatthecablepassesthrough.
Mounting
25
