Technical Data
Marathon MM Rev. D7 Jul 2017 23
3.5 Dimensions

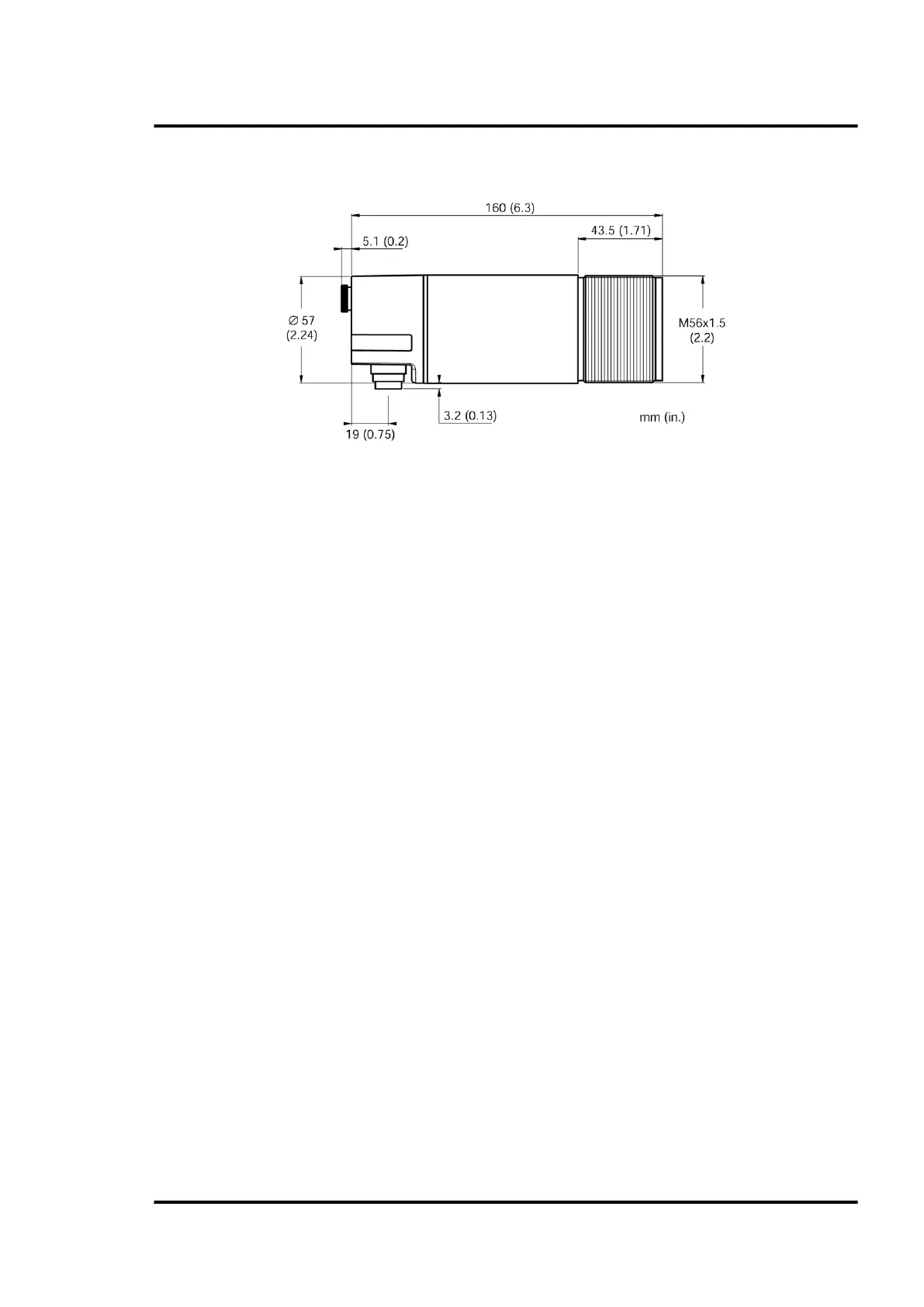

Figure 2: Dimensions of Sensor
For the dimensional drawing of the Fixed Mounting Bracket, see section 9.2 Fixed Mounting Bracket,
page 57.
3.6 Scope of Delivery
The scope of delivery includes the following:
• Sensor with through-the-lens sighting
• Operating Instructions
• DataTemp Multidrop Software
• Mounting nut made from stainless steel (XXXMMACMN)
• Fixed mounting bracket made from stainless steel (XXXMMACFB)
