RayTek MARATHON MM SERIES - Pipe Thread Adapter

Accessories
Marathon MM Rev. D7 Jul 2017 59
9.6 Pipe Thread Adapter
The pipe thread adapter must be used to connect the sight tube with the sensor housing. It is made from
stainless steel.

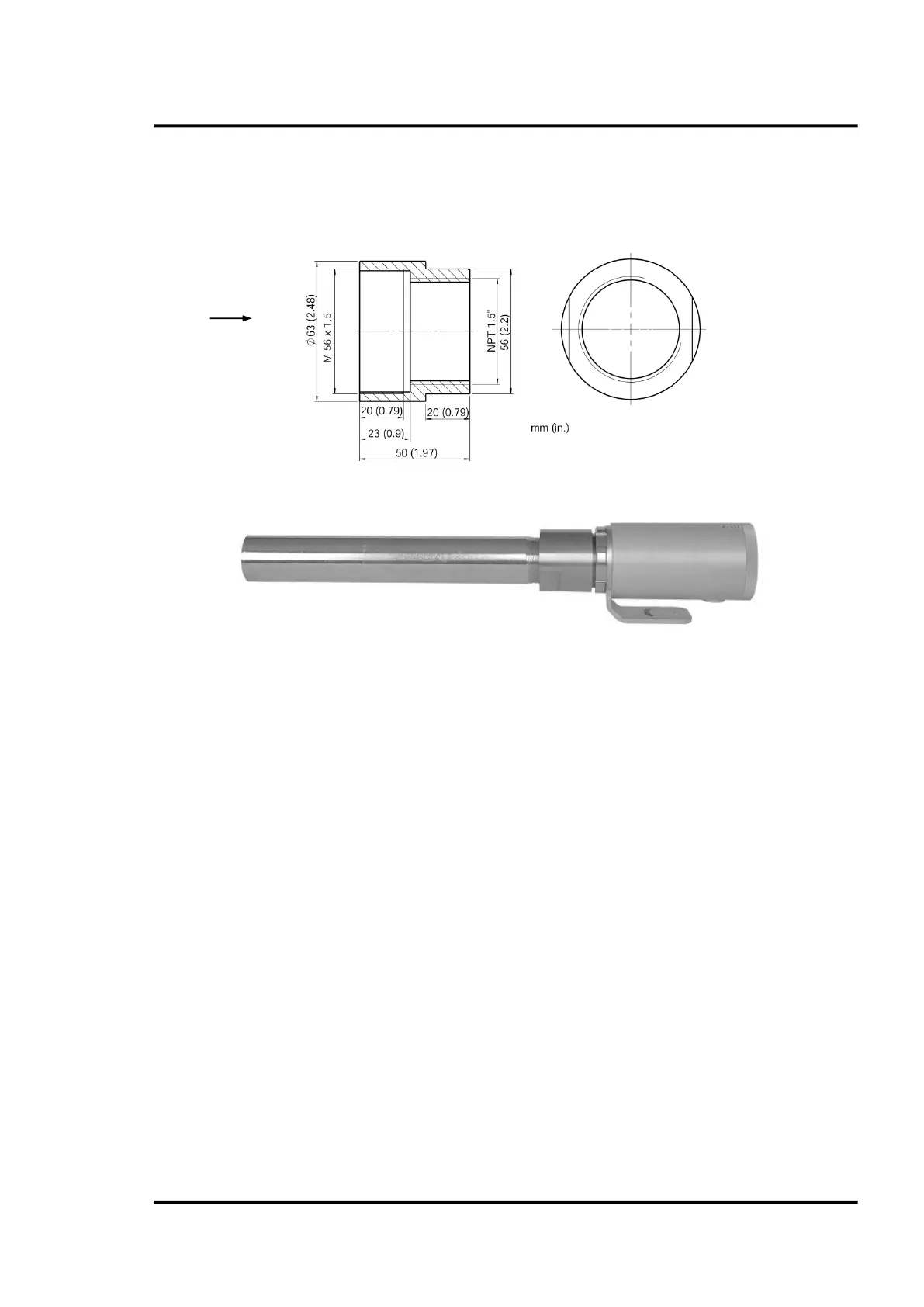

Figure 38: Pipe Adapter (XXXMMACPA)
Figure 39: Sensor with Sight Tube (XXXTST…) Pipe Adapter (XXXMMACPA),
and Fixed Mounting Bracket (XXXMMACFB)
Sensor
