RayTek MARATHON MM SERIES User Manual

Accessories
60 Rev. D7 Jul 2017 Marathon MM
9.7 Right Angle Mirror
The Right Angle Mirror is used to turn the field of view by 90° against the sensor axis. It is recommended
when space limitations or excessive radiation do not allow to directly align the sensor to the target. In
dusty or contaminated environments, the air purging should be used to keep the mirror surface clean.
The right angle mirror is available in Aluminum (XXXMMACRA) or stainless steel (XXXMMACRAS).

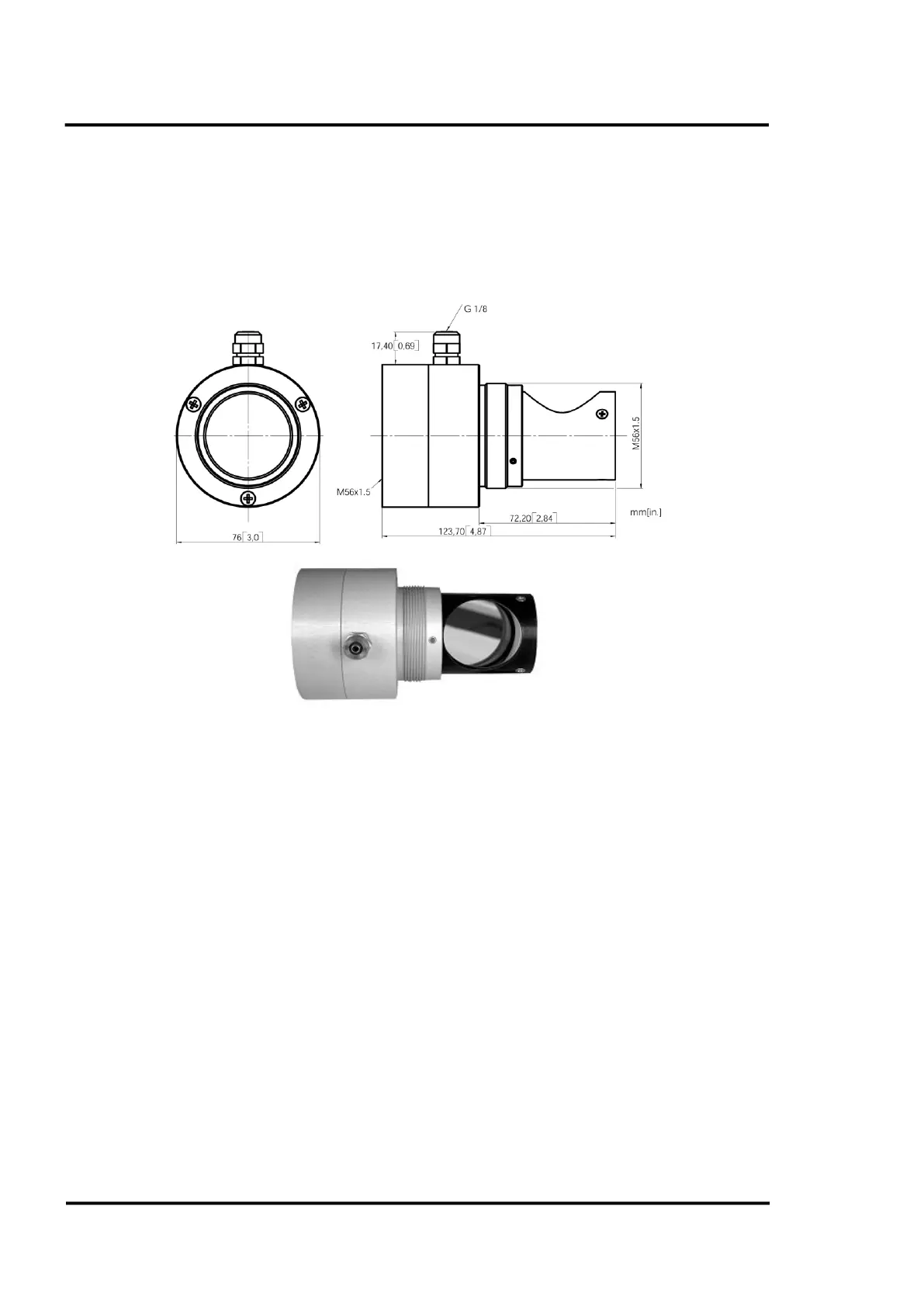

Figure 40: Right Angle Mirror
