 Reset by burst string (Burst Peak Hold): In burst mode, the peak will be held until a new burst
string is being sent via the digital interface, so the effective peak hold time is defined as the
time difference between two sent burst strings.
In the poll mode, there is a dedicated peak hold time set to <BS> + 10 ms whereby <BS> is the
parameter for the burst speed.
This function Burst Peak Hold is activated by means of the programming command <BP=1>
and resets the commands <F>, <G>, and <P>.

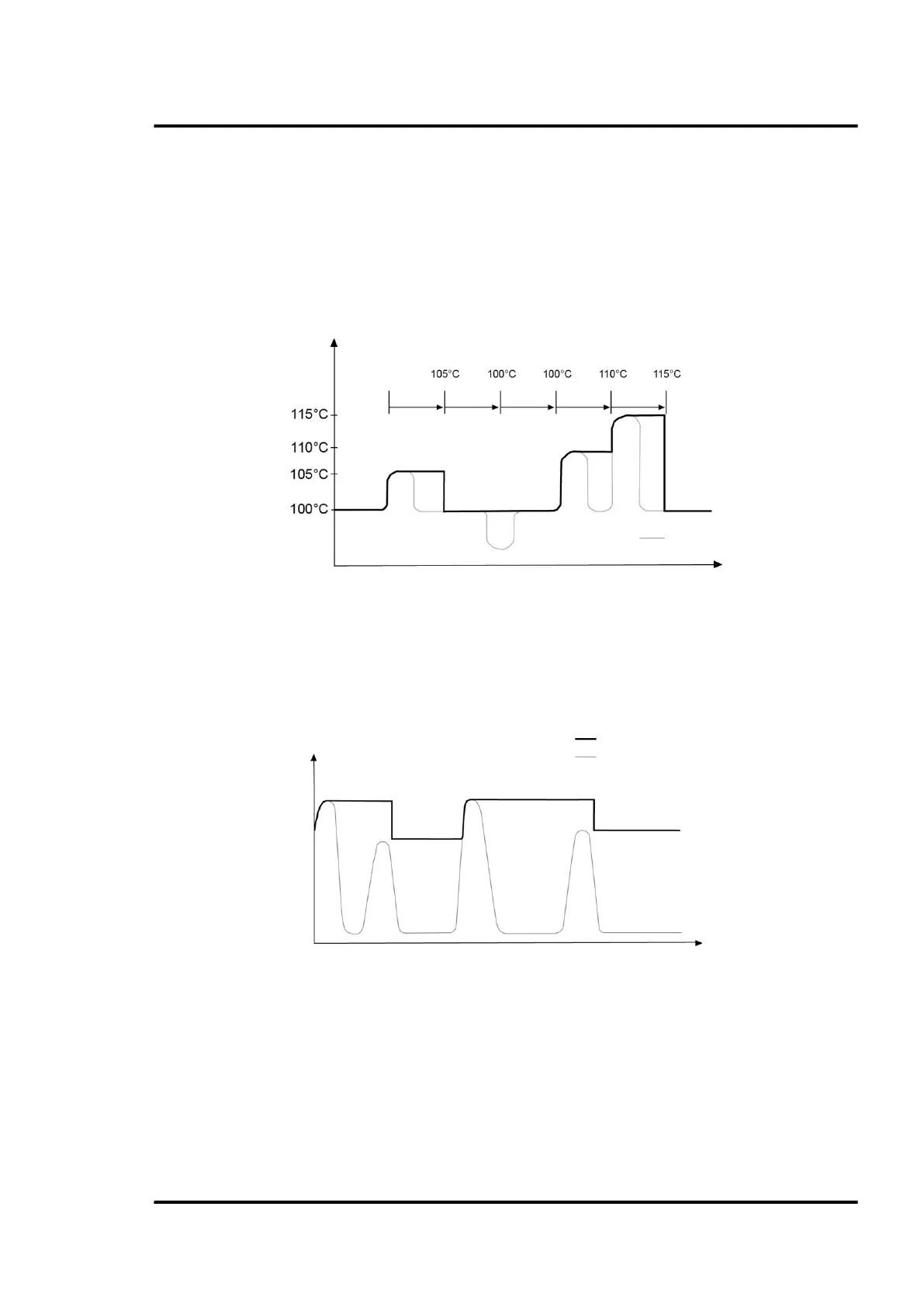

Figure 17: Peak Hold reset by sent Burst String
Peak Hold time equal to burst speed <BS>
7.3.2.2 Signal Slope
Here are the following options to define the lapse for the signal slope in case of a reset.
 Signal slope defined by perpendicular drop (default)
Figure 18: Perpendicular Signal Slope
 Signal slope defined by a linear decay: the decay is given in the Kelvin/second. This parameter
is set by means of the programming command <XE>.
output temperature
object temperature
Temp
Time
Output temperatures
object temperature
<BS>
Time
Temp
<BS>
<BS>
<BS>
<BS>
