Chapter 2
Intelligent Field Panel
Integra32
™
Hardware Guide RBH Access Technologies Inc.
10
Controller Networks
Up to thirty-two controllers can be connected to a single PC. They can be connected to
the same network or distributed across multiple networks. After the first controller of
the network is connected to the PC, additional controllers can be connected to the
network via the RS485 terminals. Connect the TX/A terminal of one controller to the
TX/A terminal next one, and connect the RX/B terminal to the RX/B terminal. All of the
controllers on a network are connected in parallel.

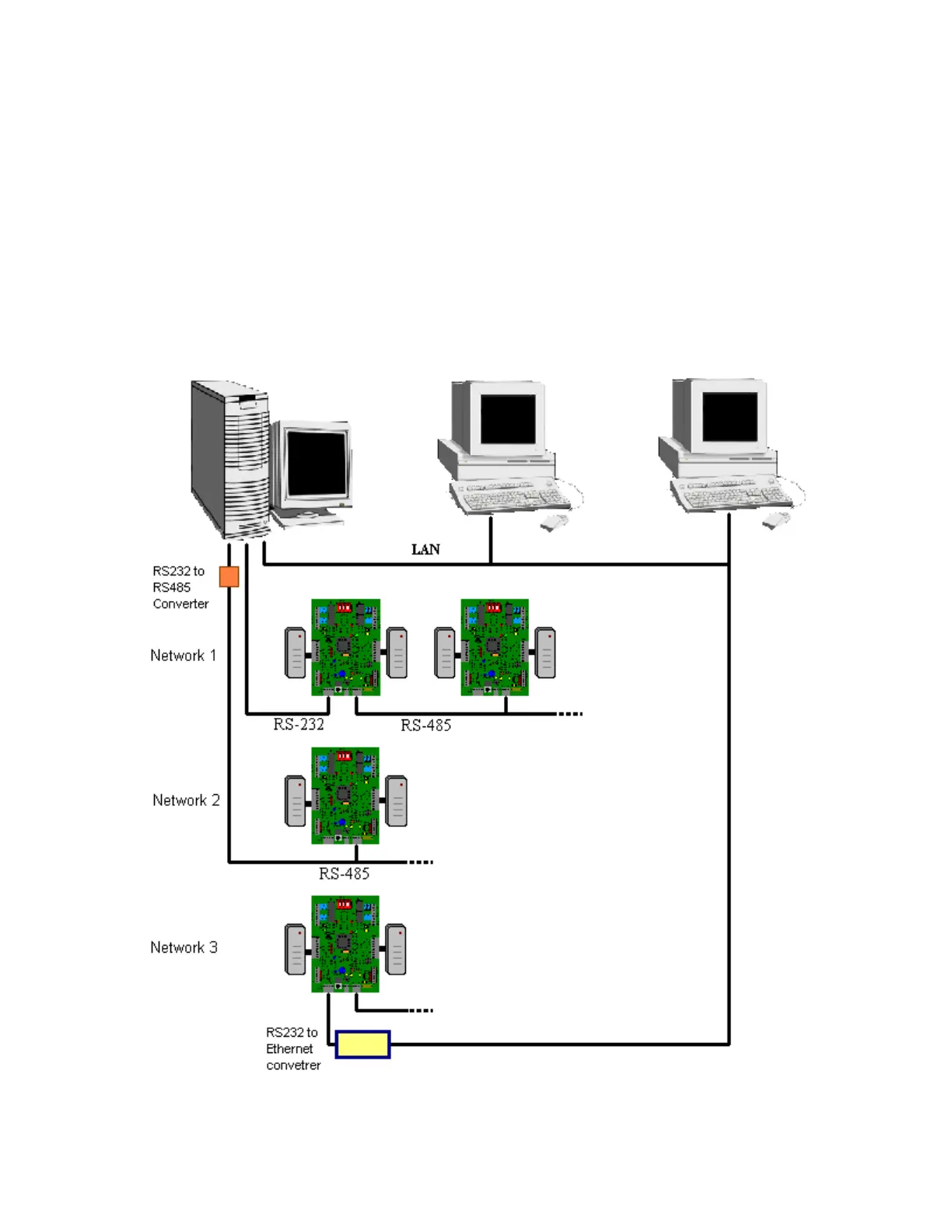

Controller Network Connection Diagram
