Status LED's
Communication Port

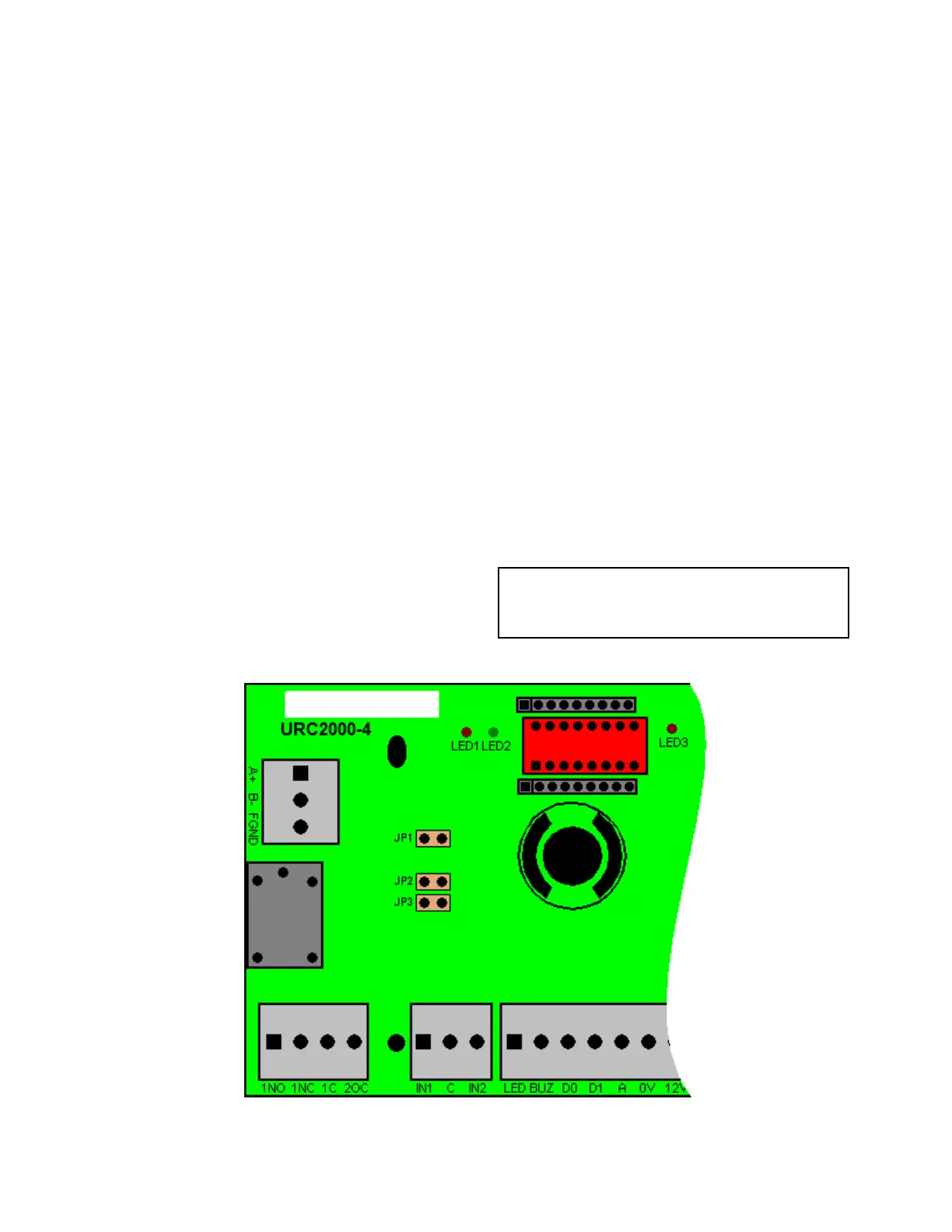

The RS485 port has two LEDs to show the flow of data between the URC-2000
controller and PC. The red RX LED (LED1) flashes when the controller receives data.
The green TX LED (LED2) flashes when the controller transmits data. If the controller
is connected directly to the PC, the status LED's flash continuously.
Run LED
The run LED (LED3) flashes to indicate the controller is not communicating, it is on
solid when running normally, and off if power is missing.
Fuses
There are two 1-amp self-resetting Polyfuses on the URC-2000 board. F1 is connected
to Reader Power and F2 is connected to Main Power.
Jumpers
JP1 Bias Low – RS485 tuning
JP2 Termination – RS485 tuning
JP3 Bias High – RS485 tuning
Leave jumpers JP1, JP2, and JP3 open. Do not
use these jumpers without consulting RBH.
