The PC-100 communications interface can be used for a number of different applications.
PC-100s can be used to interface alarm panels with the Integra™ system. Some DSC, Bosch, Summit, Gardtec,
Rokonet, and Paradox alarm panels can be interfaced this way.

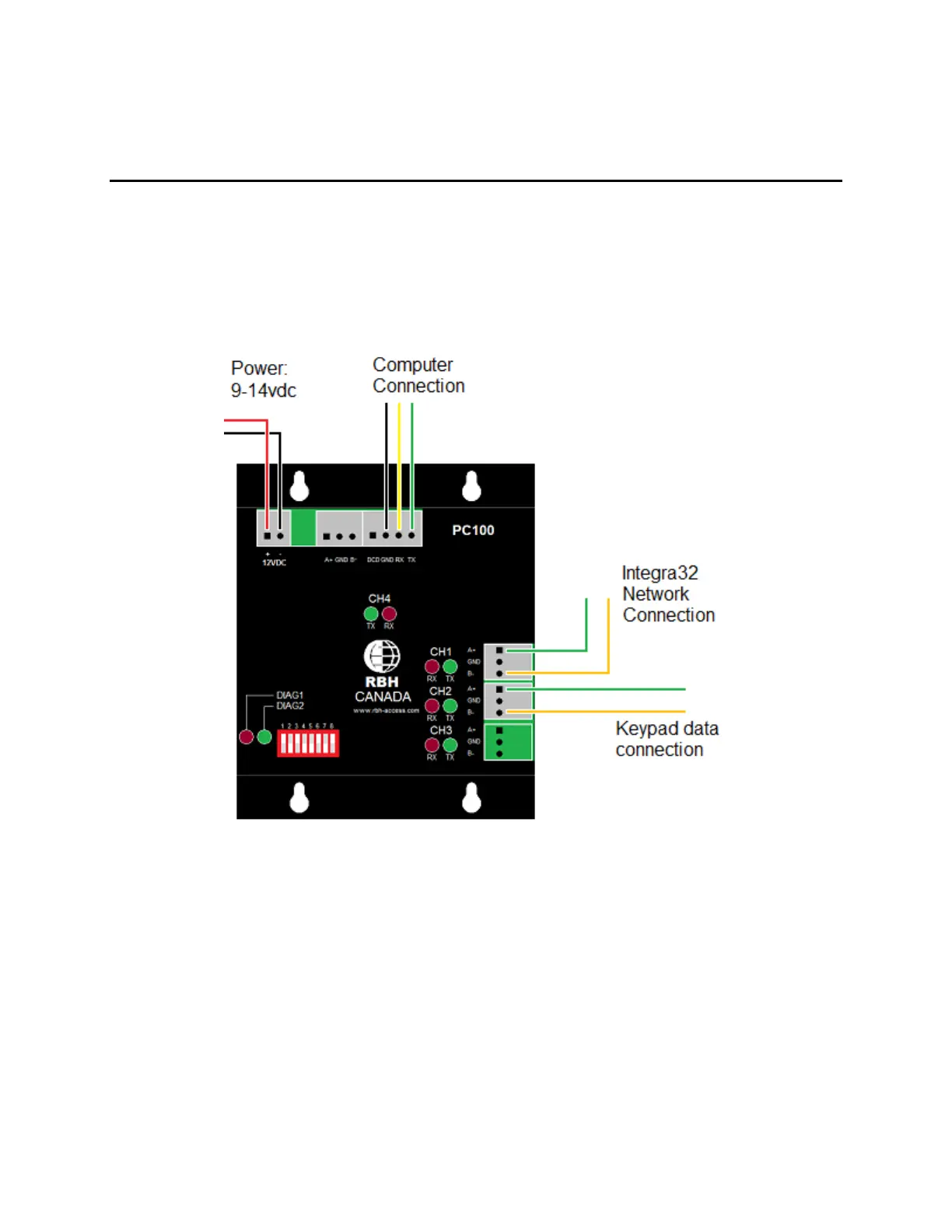

Wiring
The PC-100 connects to the IRC-2000 through the RS-485.
Power
9-14vdc @ 150ma
LEDs
DIAG1 – Interface status
DIAG2 – Integra status:
Communication Channel LEDs – Each communication channel has a green transmit LED and a red receive LED.
Normally flashing at a rate of once a second, DIAG2 will flash twice as fast if the unit is offline with the Integra
network.
