Chapter 3
Input & Output Connections
RBH Access Technologies Inc. Integra32
™
Hardware Guide
31

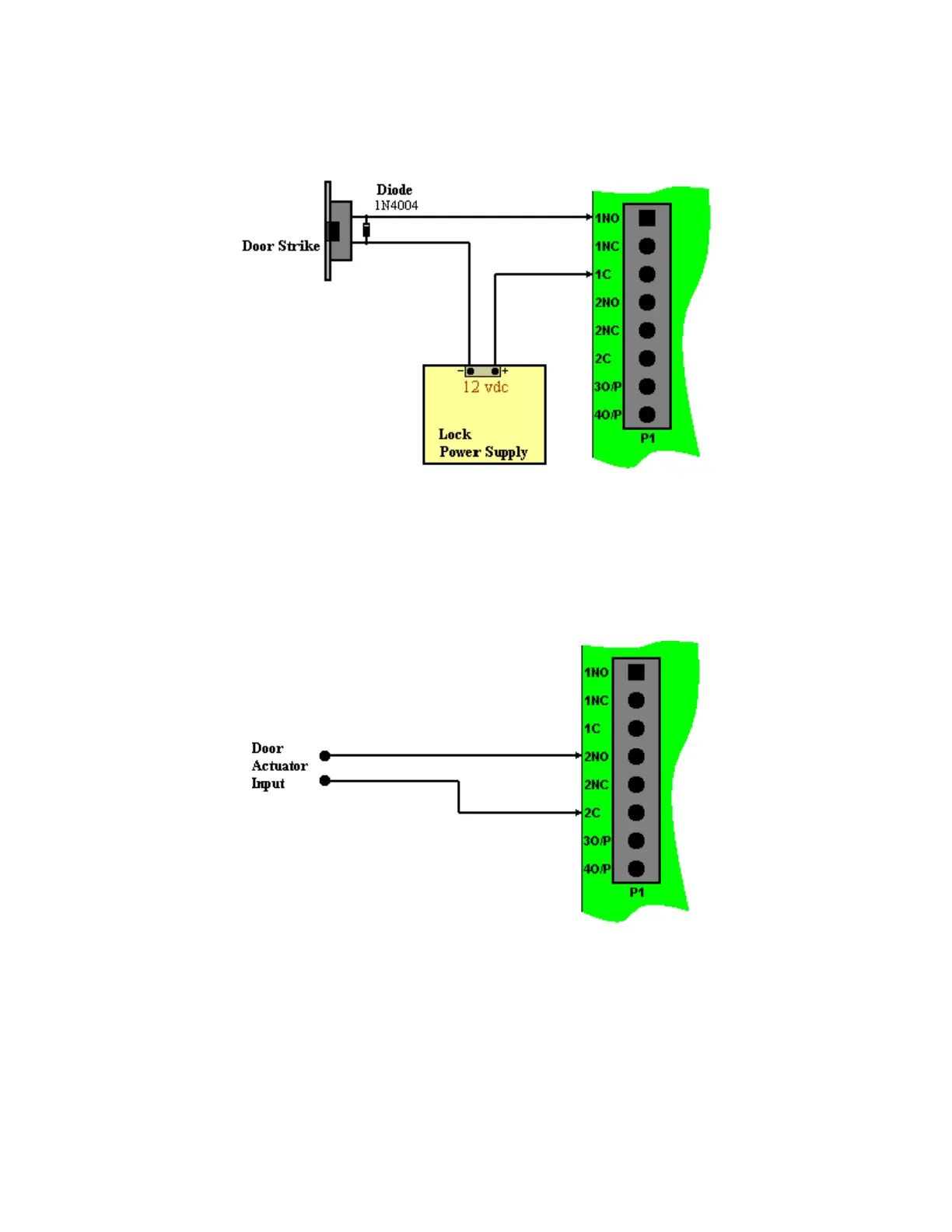

Door Strike Connection Diagram
Handicap Output Connection Diagram
If this output is used with an inductive load, use a back EMF diode
(as described on page 29) to prevent damage to other equipment.
To Next Page
