Reach BRAVO - External Inputs; Gamepad; Master Arm; Low-Level Control Implementation

Reach Robotics Confidential Proprietary Information not to be reproduced or made available to third parties without prior consent from Reach Robotics and not
to be used in any unauthorised way. © Reach Robotics Pty Ltd 2022
17
Reach Control (Lite and Pro) provides a graphical means to control each joint of the manipulator in position, velocity, or open
loop mode. Reach Control Pro provides a further option to operate the arm in Cartesian (XYZ) mode using the manipulators
kinematics engine. Every purchase of a Reach Bravo manipulator comes with an installation of Reach Control Lite included.
Reach Control Pro (RC-2000) is available as an upgrade option.
In-depth instructions are included within the Reach Control software interface explaining the function of each feature.

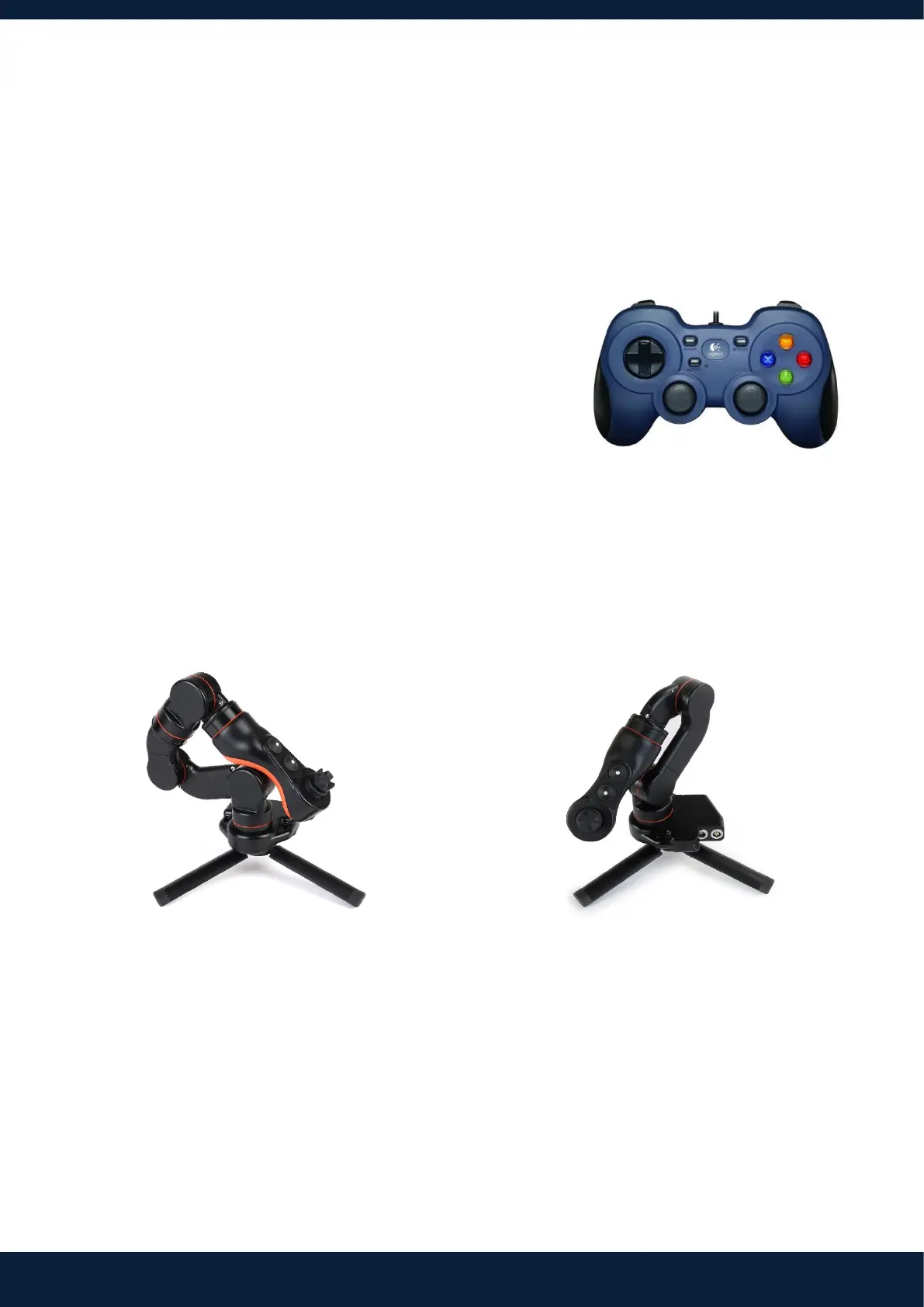

A simple HID gamepad (Reach Robotics supplied or BYO) can be used
in conjunction with Reach Control. The gamepad control inputs can
be customised and mapped to the dierent functions and joints of the
manipulator. The gamepad can be used to control the manipulator in
joint velocity, or end-eector Cartesian (XYZ) mode.
5.2 EXTERNAL INPUTS
5.2.1 Gamepad
The Reach Robotics Master Arm system is a topside controller that maps the human operator control inputs to the
movement of the manipulator’s joints in a corresponding manner. In this way, the Master Arm controller allows the
manipulator to ‘mimic’ the movement of the operator.
The following Master Arm products are available:
Further detail on the operation of the Master Arm system is available in the separate Master Arm Operators Manual from
Reach Robotics.
5.2.2 Master Arm
Master Arm for Seven-Function
Reach Manipulators
RM-7201
Master Arm for Five-Function Reach
Manipulators
RM-5201
5.3 LOW-LEVEL CONTROL IMPLEMENTATION
For users who wish to implement their own control systems such as OEMs or autonomous systems researchers, interfacing is
possible via the Reach Communication Protocol Document (BPL-RCPD).
