3.2 DIMENSIONS, MODULES AND RANGE OF MOTION
J1
J2
J3
J4
J5
J6
J7
A: 365mm
B: 160mm
C: 292mm
D: 159mm
Max OD (E): 92mm
Min OD (F): 82mm
J1: 118mm
J2: Continuous (360°+)
J3: 180
J4 Continuous (360°+)
J5: 180
J6: 180
J7: Continuous (360°+)
F (ø)
B
C
D
A
E (ø)

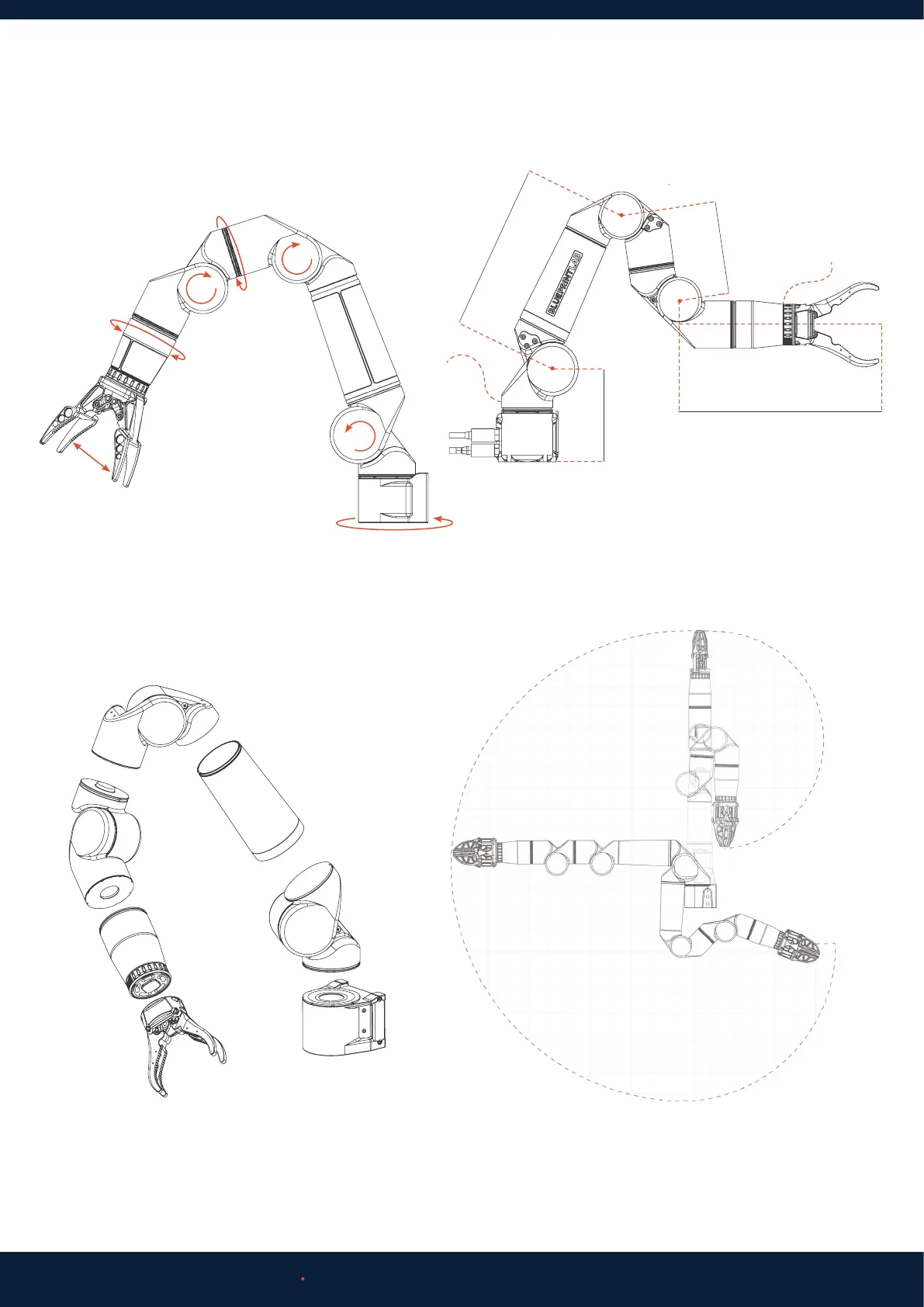

Bravo 7 – Dimensions and rotational capacity.
Bravo 7 – Module breakdown. Bravo 7 – Range of Motion side view.
3.2.1 Bravo 7
