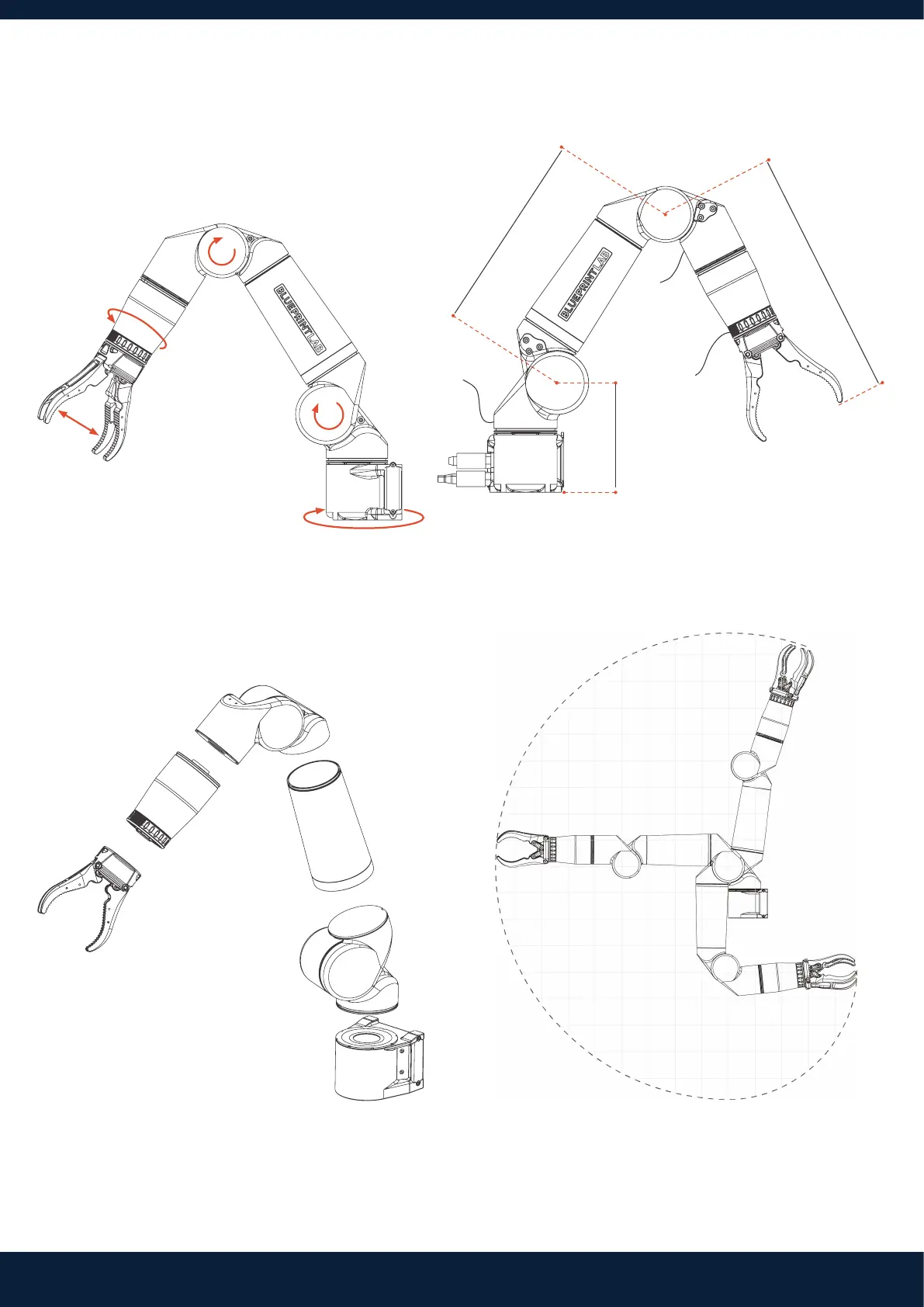

Bravo 5 – Dimensions and rotational capacity.
Bravo 5 – Module breakdown. Bravo 5 – Range of Motion side view.
3.2.2 Bravo 5
J1: 0 to 118mm (standard)
J2: Continuous (360°+)
J3: 180°
J4: 180°
J5: Continuous (360°+)
A: 291mm
B: 364mm
C: 159mm
OD (D): 92mm
OD (E): 92mm
OD (F): 81.6mm
D (ø)
E (ø)
A
B
C
F (ø)
J3
J4
J2
J5
J1
